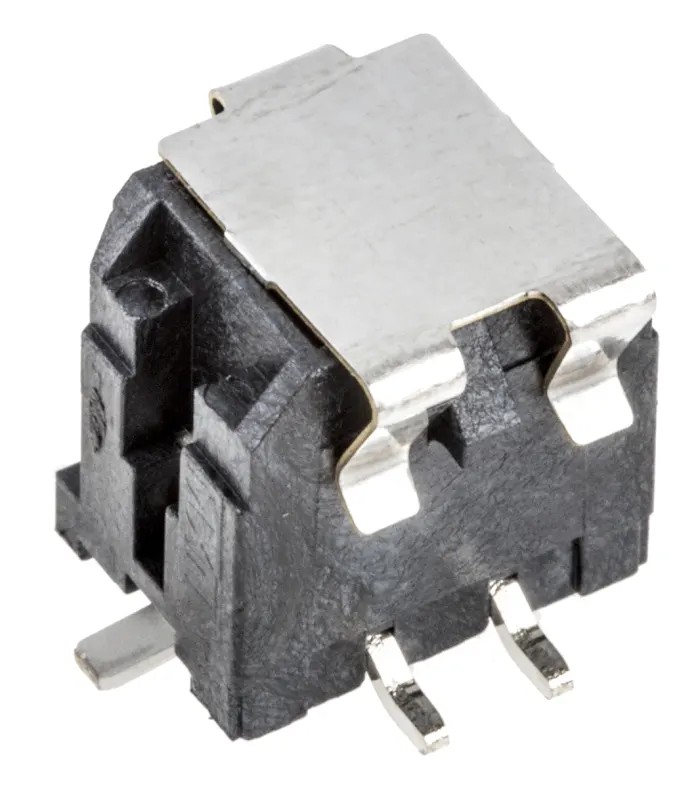

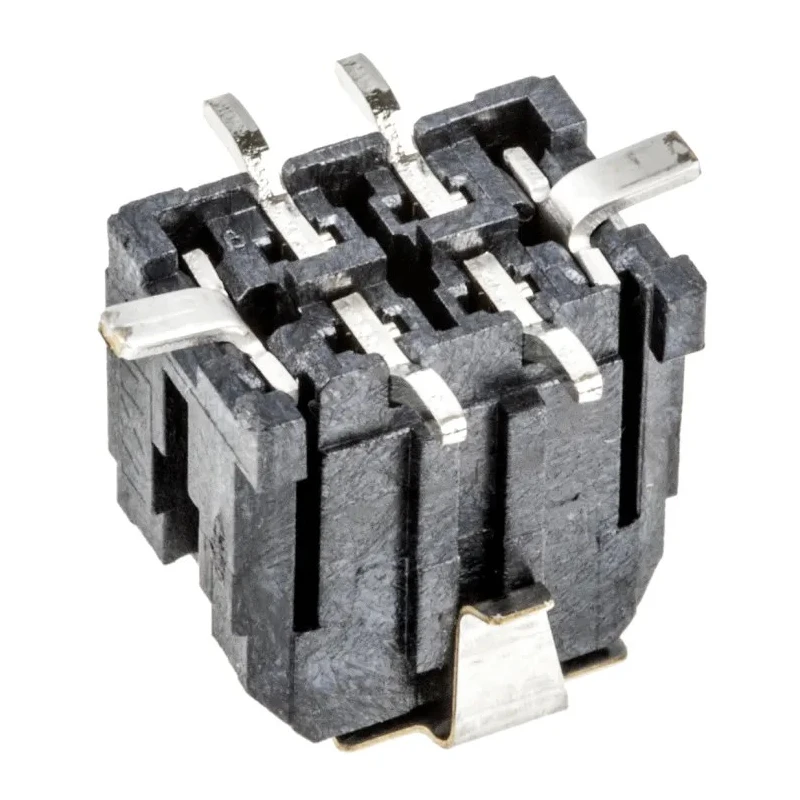

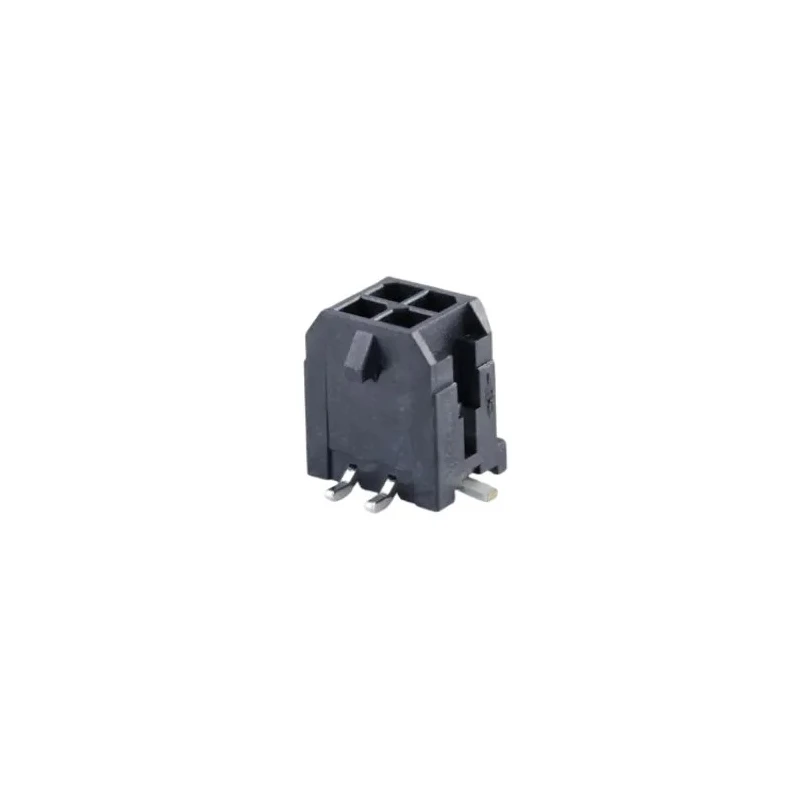

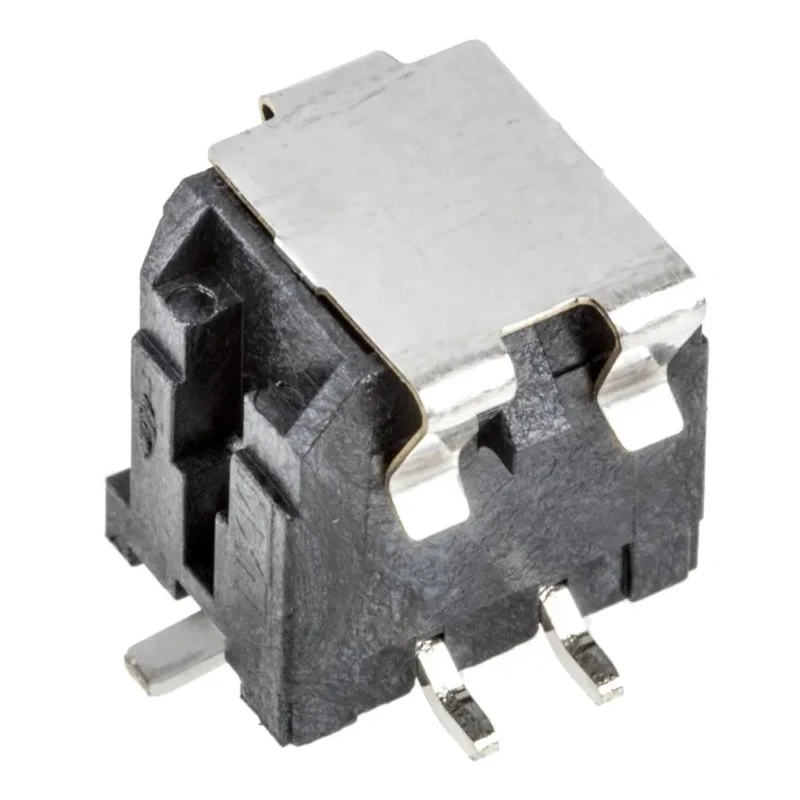

Molex 43045 Series Straight Surface PCB Header, 4 Contacts, 3mm Pitch, 2 Row Shrouded 43045-0418
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 8.5 |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | 43045 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Fully shrouded design enhances connector integrity during installation.
- Surface mount configuration enables compact PCB layouts.
- Brass contact material ensures excellent conductivity.
- Rated for 600V and 8.5A current, suitable for high-voltage applications.
- Durable tin plating resists corrosion and wear for long service life.
- Glow-wire compliant for improved safety in household electrical devices.
- Operates reliably from -40°C to +105°C, adaptable to various environments.
- Designed for wire-to-board connections with solder termination.
Product Description
Molex 43045-0418 Straight Surface PCB Header is a high-quality connector designed for efficient wire-to-board applications. Featuring a 3mm pitch and 2 rows with 4 contacts, this shrouded header ensures stable, reliable connections in compact PCB designs. With brass contacts and tin plating, it offers superior conductivity and corrosion resistance.
This connector supports up to 8.5A current and withstands voltages up to 600V, making it ideal for power distribution in electronic devices. Its glow-wire compliance enhances safety by meeting high-temperature standards, reducing fire risk in household appliances.
Operating within a wide temperature range from -40°C to +105°C, it is suitable for use in industrial machinery, automation equipment, and consumer electronics requiring durable and robust connections.
The solder termination type ensures strong mechanical and electrical bonding, while the fully shrouded design protects contacts and improves connector integrity during installation. The recommended PCB thickness of 1.60mm ensures optimal alignment and retention.
Fully shrouded design enhances connector integrity during installation. Surface mount configuration enables compact PCB layouts. Brass contact material ensures excellent conductivity. Rated for 600V and 8.5A current, suitable for high-voltage applications.
Durable tin plating resists corrosion and wear for long service life. Glow-wire compliant for improved safety in household electrical devices. Operates reliably from -40°C to +105°C, adaptable to various environments. Designed for wire-to-board connections with solder termination.
Male contact gender with 3mm mating pin length ensures precise connection. Recommended PCB thickness is 1.60mm for optimal performance and retention.
This PCB header is widely used in industrial, consumer electronics, automation, and manufacturing applications requiring dependable power and signal connections. Choose Molex 43045-0418 for dependable, high-performance PCB connectivity solutions.
Explore more PCB Headers and connectors at EnvMart for comprehensive electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 600V, making it suitable for high-voltage applications.
It can handle a maximum current of 8.5A, which is ideal for power distribution in electronic devices.
The connector features a 3mm pitch and has 4 contacts arranged in 2 rows.
It uses solder termination, ensuring strong mechanical and electrical bonding.
The recommended PCB thickness is 1.60mm, which ensures optimal alignment and retention.
The housing is made from thermoplastic, and the contacts are made of brass with tin plating for corrosion resistance.
It operates reliably within a temperature range of -40°C to +105°C, making it adaptable to various environments.
Yes, it is glow-wire compliant, enhancing safety by meeting high-temperature standards to reduce fire risk.
It is designed for wire-to-board connections, making it suitable for various electronic applications.
This model has a straight orientation and features a fully shrouded design that enhances connector integrity during installation.
It is widely used in industrial, consumer electronics, automation, and manufacturing applications requiring dependable power and signal connections.
The country of origin for this product is India.
