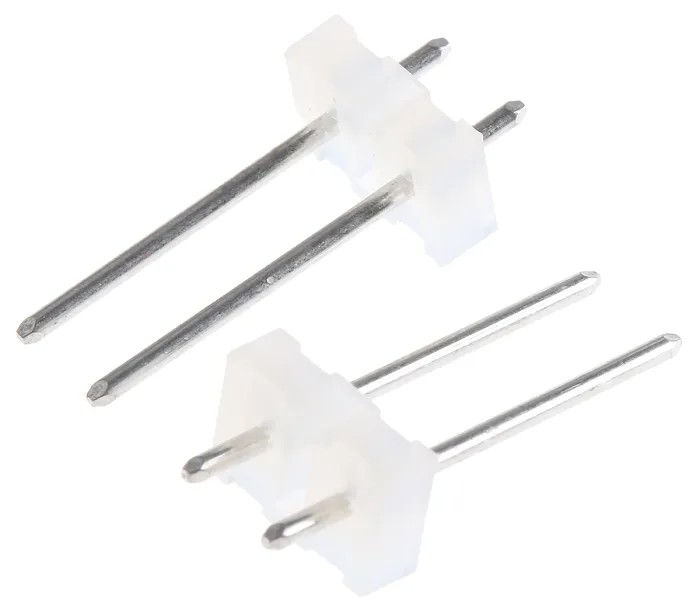

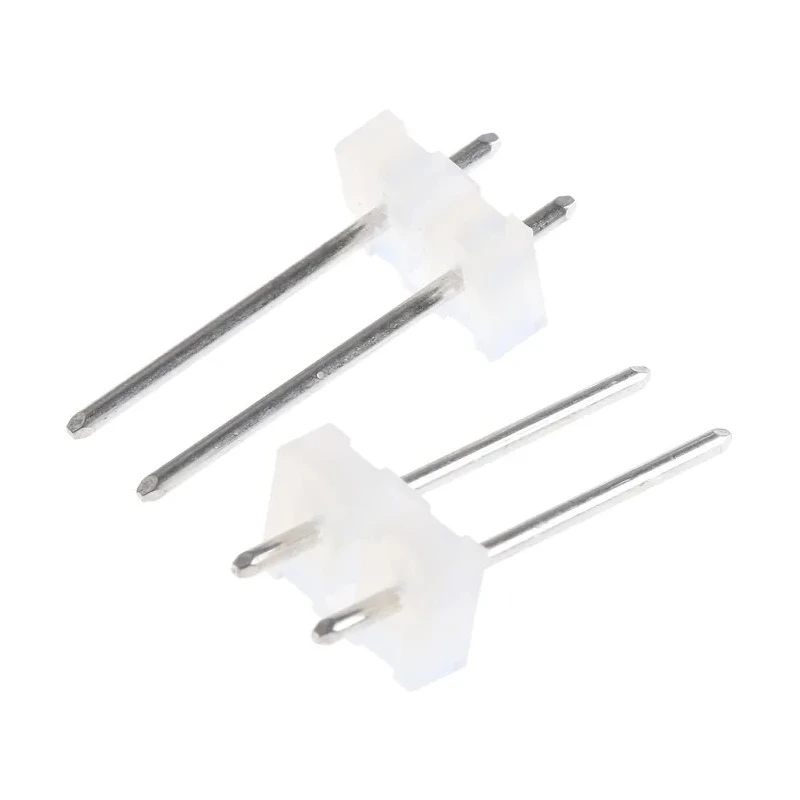

Molex KK 508 Series Straight Through Hole Pin Header 2 Contacts 5.08 mm Pitch 1 Row Unshrouded 10-08-1022

Molex 10-08-1022 KK 508 Series Straight Through Hole Pin Header features 2 contacts arranged in a single row with a 5.08 mm pitch, designed to provide reliable electrical connections in electronics assemblies. Constructed with brass contacts plated in tin and housed in durable nylon, this unshrouded pin header is suited for both board-to-board and wire-to-board connector systems. It is rated for a current of 7A and voltage of 250V, operating efficiently within a temperature range of -40°C to 80°C.

The pin header employs a through hole mount and solder termination ensuring secure mechanical and electrical connections on PCBs. The male contact gender with a tail pin length of 3.94 mm facilitates solid insertion in compatible housings and connectors.

This product mates with 3001 and 5058 series housings as well as 3002 series PC board connectors, offering a versatile solution in the KK series interconnection system. The series is especially suited to applications that require higher creepage and clearance distances.

The economical design of the KK 508 series allows for simple integration in manufacturing processes where dependable wire-to-board and board-to-board connections are necessary. Its unshrouded structure with a single row enhances accessibility and inspection during assembly and maintenance.

Constructed with brass contacts plated in tin for durability and corrosion resistance. Features a nylon housing providing insulation and mechanical stability. Rated for 7A current and 250V voltage for robust electrical performance.

Suitable for operating temperatures ranging from -40°C to 80°C for varied environmental conditions. Designed for through hole mounting and solder termination for strong mechanical attachment. Male contact gender with 3.94 mm tail pin length for secure electrical connection.

Unshrouded design with 1 row simplifies inspection and access. Compatible with 3001 and 5058 series housings and 3002 series PC board connectors. Ideal for applications requiring greater creepage and clearance distance with the 5.08 mm pitch KK series.

Enables economical and simple wire-to-board or board-to-board interconnections in electronic assemblies.

This pin header is widely employed in industrial, electronic manufacturing, communication, and PCB assembly applications where reliable, long-lasting connectors are essential. Explore other Molex KK series connectors and PCB headers to complement your assembly requirements on EnvMart.
