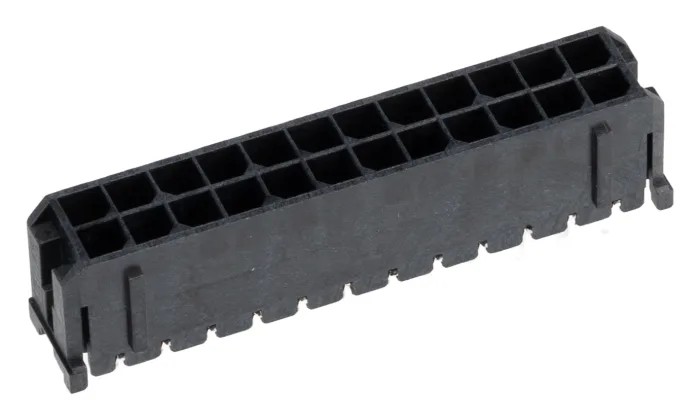

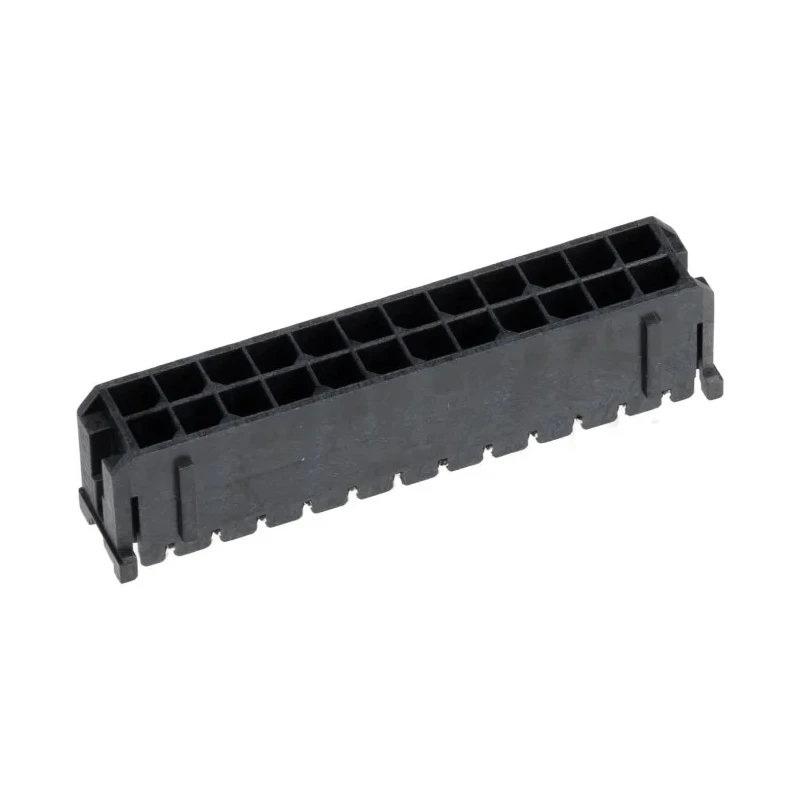

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header 24 Contacts 3 mm Pitch 2 Row Shrouded 43045-2412

Molex 43045-2412 Micro-Fit 3.0 Series Vertical Through Hole PCB Header, featuring 24 contacts, 3 mm pitch, and a 2-row shrouded design, delivers precise and secure connectivity for electronic applications. This PCB header supports a current rating of 8.5A and operates reliably within a temperature range of -40°C to 125°C, making it suitable for demanding industrial, automation, and electronics environments.

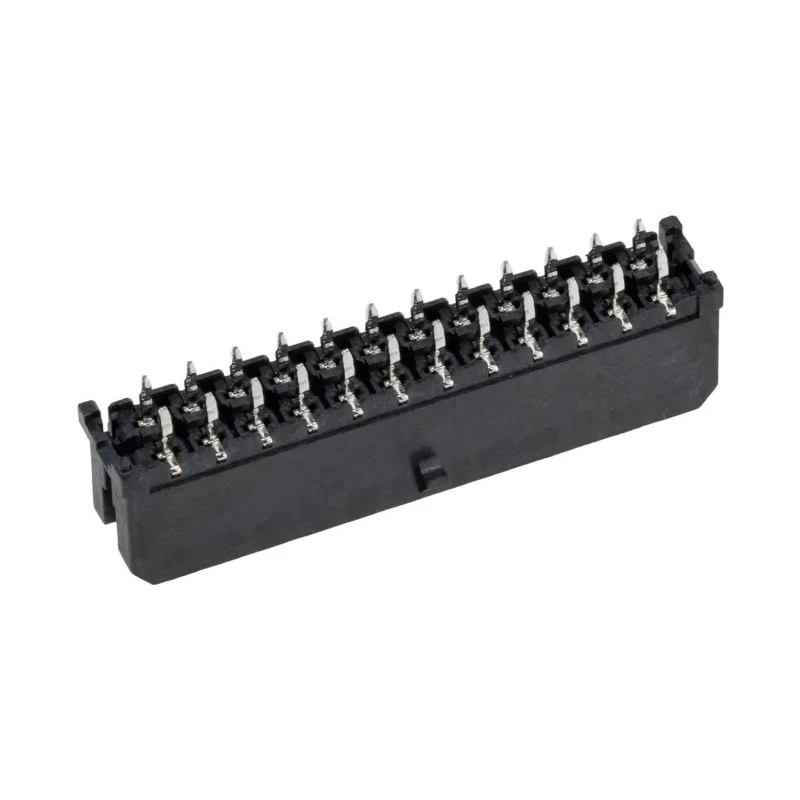

The connector's high temperature thermoplastic housing provides resistance to heat and mechanical stress, while the brass contacts plated with tin ensure durability and consistent electrical performance over time. The vertical orientation, coupled with through hole mounting and kinked pins, contributes to stable and secure installation on printed circuit boards.

Its wire-to-board connector system and solder termination type facilitate efficient assembly in PCB layouts, optimized by a dual-row, shrouded configuration that protects contacts and enhances connection reliability. The recommended PCB thickness of 1.60 mm further ensures optimal mechanical and electrical performance.

This PCB header is ideal for power transmission, electronic device connections, and automation machinery assemblies that require compact space utilization and robust connectivity. Its construction abides by industrial reliability standards without specific certifications or approvals.

The connector supports a current rating of up to 8.5A ensuring robust power transmission. Equipped with high temperature thermoplastic housing for durability and thermal stability. Features brass contacts with tin plating for long-lasting and reliable connections.

Designed for vertical orientation and through hole mounting with kinked pins for added stability. Operates in a temperature range from -40°C to 125°C, suitable for challenging conditions. Supports wire-to-board connector systems with solder termination type.

Shrouded design enhances connection protection and stability in electronic assemblies. Recommended for use with 1.60 mm PCB thickness for optimal installation. Explore more Molex PCB Headers and connectors in the Electronics Components category on EnvMart for diverse industrial and electronic applications.
