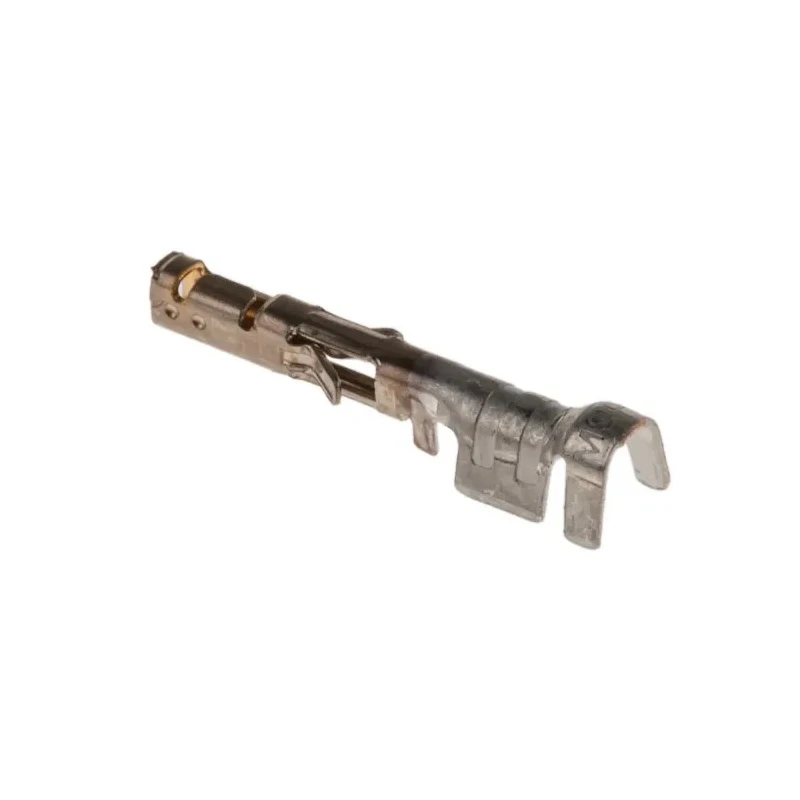

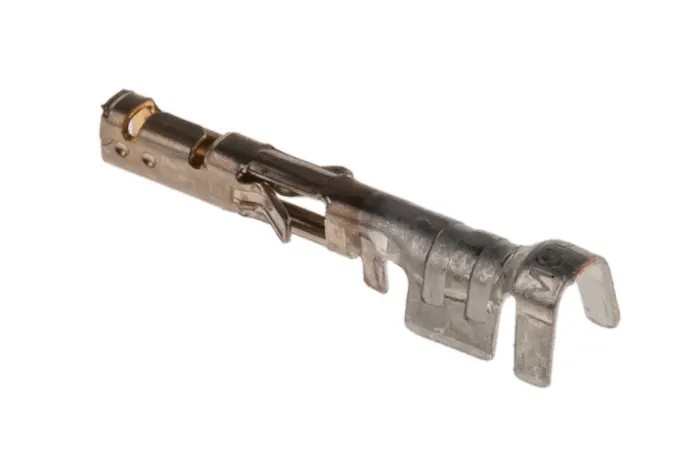

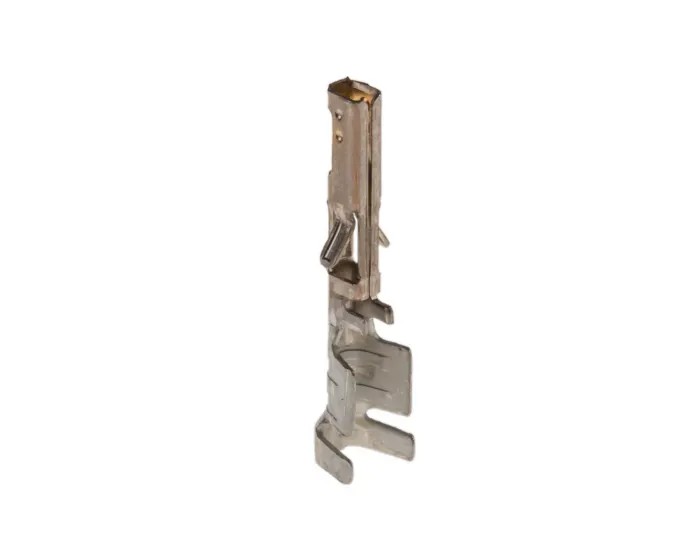

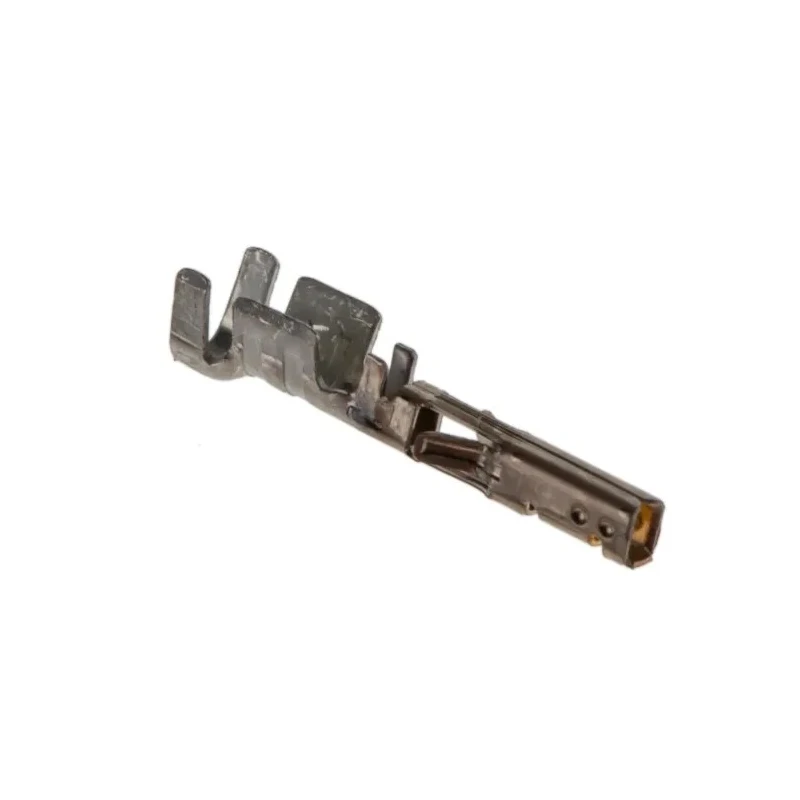

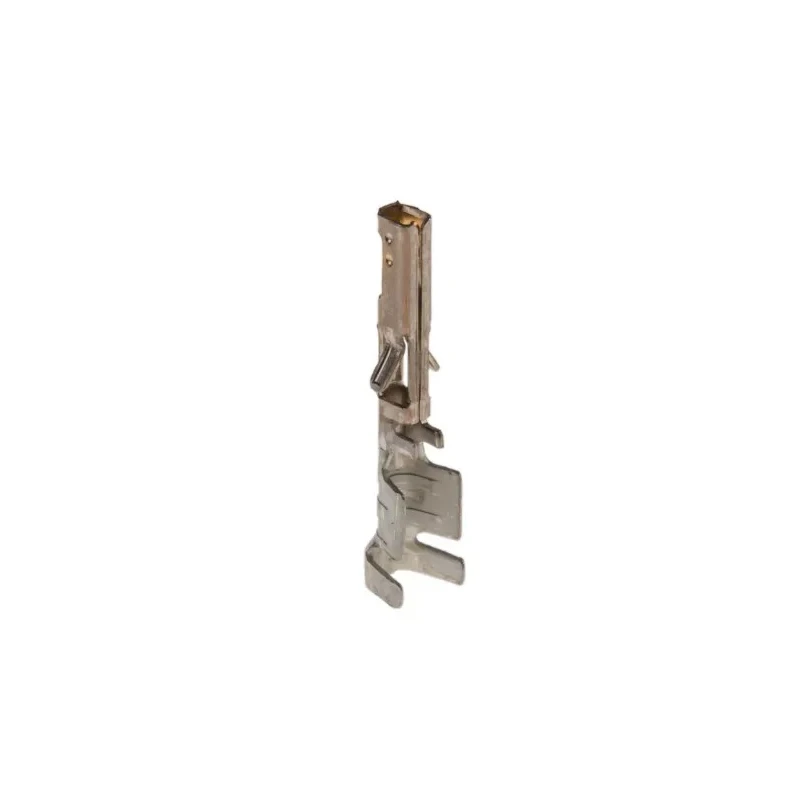

Molex 43030 Series Female Crimp Terminal 24 AWG to 20 AWG, Gold Plated Phosphor Bronze 8.5A Crimp Terminal 43030-0008
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 8.5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 43030 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Micro-Fit 3.0 and Micro-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 43030 Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG MaxBrand | Molex |
Key Features
- Constructed from phosphor bronze material for durability and excellent conductivity.
- Gold plating on contact surface ensures resistant to corrosion.
- Operates reliably between -40°C and 105°C temperature range.
- Rated for current up to 8.5 amperes in power and wire-to-board applications.
- Features locking tangs and multiple contact points for secure and stable connections.
- Designed to mate with Micro-Fit 3.0 male crimp terminals ensuring compatibility.
- Suitable for automotive, machine building, data communication, and general electrical connector use.
Product Description
The Molex 43030-0008 is a female crimp terminal from the 43030 Series, engineered for wire size ranges from 24 AWG minimum to 20 AWG maximum. Manufactured from phosphor bronze, it offers excellent conductivity and long-term wear resistance, making it ideal for rigorous industrial applications.
This crimp terminal features gold plating on the contact mating surfaces, providing superior corrosion resistance and ensuring consistent electrical performance. It is designed for use with Micro-Fit 3.0 and Micro-Fit BMI connector housings commonly found in electronics, automotive, and control panel systems.
With a current rating of 8.5 amperes and a broad operating temperature range from -40°C to 105°C, this terminal is reliable even under demanding environmental conditions, including vehicle safety systems.
The crimp termination type and square-shaped insertion end make installation straightforward, while the presence of two locking tangs secures the terminal firmly within its housing, preventing accidental disconnections. Multiple contact points enhance the connection's electrical reliability.
Applications include machine building, data and communications equipment, and the automotive industry where dependable wire-to-board and wire-to-wire connections are mandatory. The terminal mates with compatible male crimp terminals within the Micro-Fit 3.0 series, such as the Molex 43031 model.
Constructed from durable phosphor bronze material. Gold plating ensures corrosion-resistant contact points. Wide operating temperature range from -40°C to 105°C. Rated for up to 8.5A current capacity. Designed with locking tangs to secure the terminal in housings.
Compatible with Micro-Fit 3.0 and Micro-Fit BMI housings. Suitable for automotive, machine building, and communication industries. Explore more electrical component solutions and connectors from Molex in the EnvMart industrial catalog to ensure compatibility and high performance for your projects.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 8.5 amperes.
It is designed to accommodate wire sizes from 24 AWG to 20 AWG.
The terminal is constructed from phosphor bronze and features gold plating on the contact surfaces for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This crimp terminal is designed to mate with Micro-Fit 3.0 and Micro-Fit BMI connector housings.
It features locking tangs and multiple contact points, which provide secure and stable connections within the housing.
The maximum contact resistance is rated at 10 milliohms.
It uses a crimp termination type, which allows for straightforward installation.
It is suitable for automotive, machine building, data communication, and general electrical connector use.
The gold plating on the contact surfaces ensures resistance to corrosion, enhancing the terminal's electrical performance over time.
The weight of this terminal is not specified in the provided data.
It is manufactured in China.
