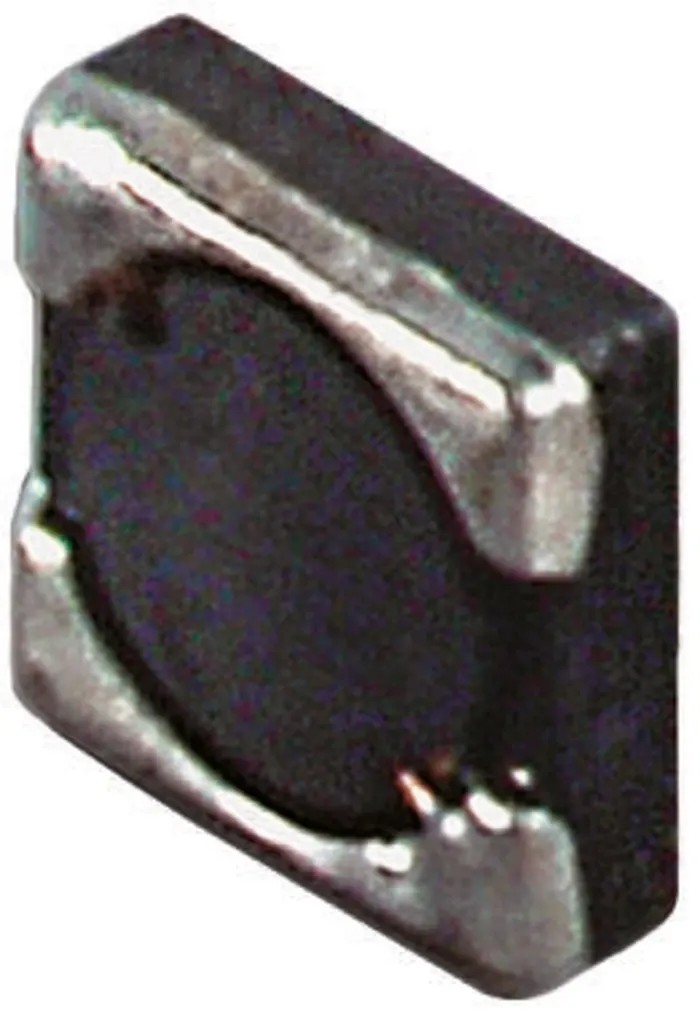

Wurth Elektronik WE-TPC 4828 Shielded Wirewound Surface Mount Inductor 10 μH ±30% 1.19 A DC Current 744043100
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40 to +125°C |
| Height | 2.8mm |
| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Package/Case | 4828 |
| Maximum DC Current | 1.19A |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Standards/ApprovalsIEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21 |
| IEC 60286-3 | 2013, RoHS, REACH, JEDEC JS709B, IPC/JEDEC J-STD-020E, IEC 61249-2-21 |
Key Features
- Features a 4828 package with tape and reel packaging for efficient automated assembly.
- Constructed with a ferrite core to provide magnetic shielding and reduce leakage fields.
- Supports operating temperatures from -40°C up to 125°C ensuring reliability in diverse environments.
- Designed for surface mount applications with a compact 4.8 mm length, 2.8 mm height, and 4.8 mm depth.
- Meets automotive standard AEC-Q200 and complies with multiple industry standards including RoHS, REACH, and JEDEC JS709B.
- Maximum DC resistance is 110 mΩ, suitable for high-frequency applications with a self-resonant frequency of 40 MHz.
- Ideal for portable power systems, DC/DC converters, embedded PCs, mobile data gathering, and telemetric applications.
Product Description
Wurth Elektronik 744043100 WE-TPC 4828 Shielded Wirewound Surface Mount Inductor is a precision engineered electronic component with a 10 μH inductance and ±30% tolerance, designed to handle a maximum DC current of 1.19 A. This wirewound inductor features a compact 4828 package with magnetic shielding due to its ferrite core construction, significantly reducing electromagnetic interference and leakage fields.
The component operates reliably within a temperature range from -40°C to 125°C, making it suitable for harsh industrial and automotive environments, meeting the AEC-Q200 automotive qualification. Compliance with international standards such as IEC 60286-3:2013, RoHS, REACH, JEDEC JS709B, and IPC/JEDEC J-STD-020E ensures quality and environmental safety.
Its surface mount termination style and tape & reel packaging facilitate efficient placement in automated manufacturing processes. The device’s dimensions (4.8 mm length, 2.8 mm height, and 4.8 mm depth) provide a low-profile solution ideal for space-constrained electronic assemblies.
This inductor is commonly used in portable power applications like PDAs, digital cameras, PCMCIA cards, DC/DC converters, embedded PCs, mobile data acquisition, and telemetric systems, where magnetic shielding and current capacity are critical.
Compact 4828 package with tape & reel makes it optimized for automated PCB assembly. Ferrite core delivers effective shielding and reduced electromagnetic interference. Wide operating temperature for reliability in automotive and industrial environments.
Meets strict automotive and industry quality standards. Construction supports high frequency and precision electronic applications. Robust design enables use in portable and embedded electronic power systems. Compliance with international environmental and safety regulations.
This product is an essential component in Electronics & Electricals, suited for demanding applications requiring stable inductance and shielding. Explore the full range of Surface Mount Inductors from Wurth Elektronik and find compatible electronic components for advanced design and manufacturing on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±30%.
It has a maximum DC current rating of 1.19 A.
This unit has dimensions of 4.8 mm in length, 2.8 mm in height, and 4.8 mm in depth.
The operating temperature range is from -40°C to 125°C, making it suitable for various environments.
It is packaged in tape and reel format, which facilitates automated assembly processes.
This model meets the AEC-Q200 automotive standard, ensuring its reliability in automotive applications.
The maximum DC resistance is 110 mΩ, suitable for high-frequency applications.
The maximum self-resonant frequency is 40 MHz.
It is constructed with a ferrite core, which provides magnetic shielding and reduces leakage fields.
It complies with several industry standards, including RoHS, REACH, JEDEC JS709B, and IPC/JEDEC J-STD-020E.
This inductor is commonly used in portable power systems, DC/DC converters, embedded PCs, and telemetric applications.
It features a surface mount termination style, making it suitable for modern PCB designs.
