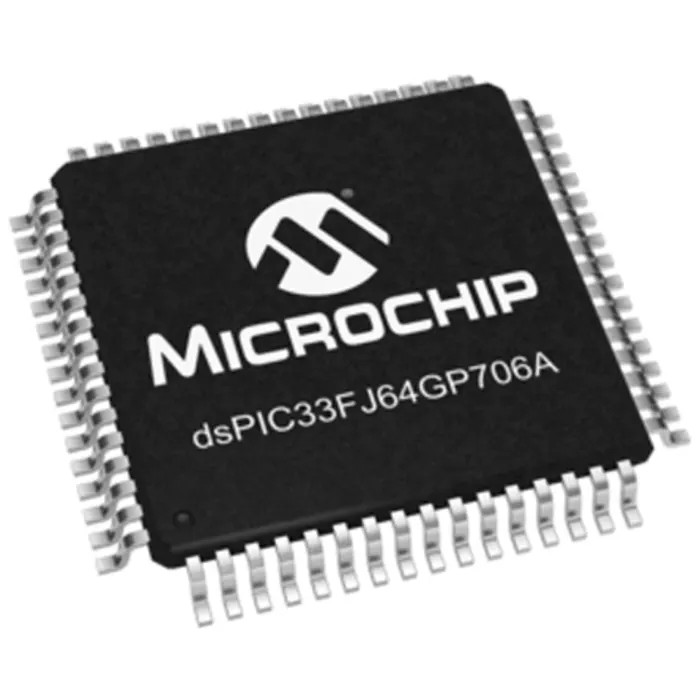

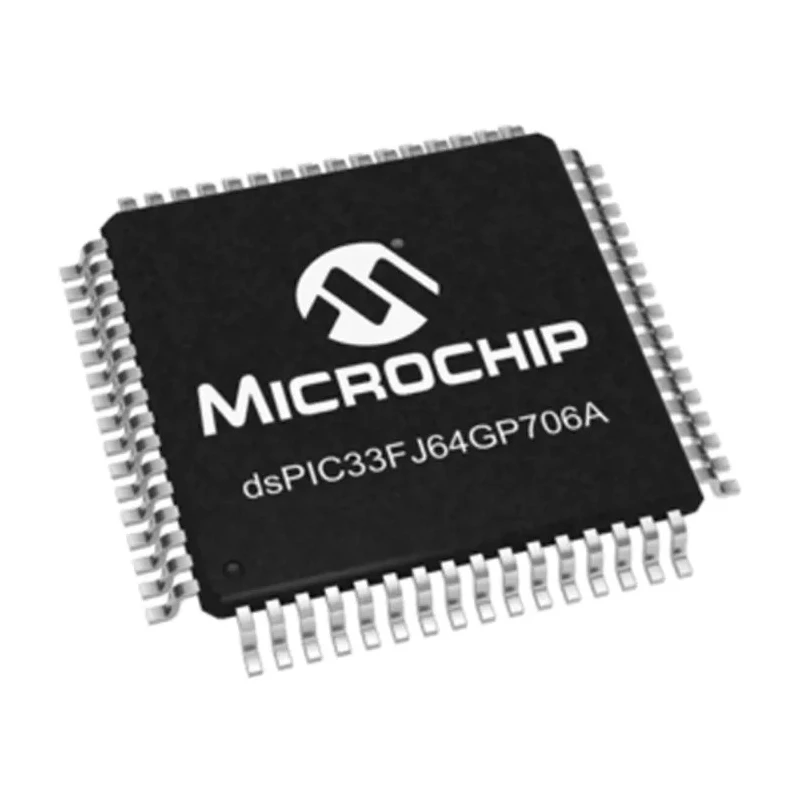

Microchip dsPIC33FJXXXGPX06A/X08A/X10A 16 bit Digital Signal Processor 40 MIPS 64 kB FLASH 64-Pin TQFP dsPIC33FJXXXGPX06A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC33FJXXXGPX06A |
| Width | 10mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | dsPIC33FJXXXGPX06A/X08A/X10A |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Standards/Approvals | IEC 60730 |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 Rev G Grade 0, AEC-Q100 Rev G Grade 1 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 64kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 8 |
Key Features
- High-performance dsPIC33F core implementing 40 MIPS execution speed.
- Integrated 64 kB FLASH program memory for extensive application code.
- 16-bit data bus width supports efficient signal processing.
- Operating voltage range from 3 V to 3.6 V for flexible power options.
- Wide operating temperature range from -40°C to 85°C for industrial use.
- Equipped with 18 ADC channels and 12-bit ADC resolution for precise analog input data.
- Incorporates 8 PWM channels and 9 timers for motor control and timing functions.
- Surface mount 64-pin TQFP package ensures compact installation and reliable connections.
Product Description
Microchip dsPIC33FJXXXGPX06A 16 bit Digital Signal Processor is a robust and versatile digital signal controller delivering up to 40 MIPS throughput with 64 kB FLASH memory, optimized for embedded applications requiring high speed and precision. This processor features a 16-bit data bus and operates within a voltage range of 3 to 3.6 V, suitable for various power supply configurations.
The device includes 18 ADC channels with 12-bit resolution for accurate signal conversion, alongside 8 PWM channels and 9 timers which facilitate complex motor control and waveform generation tasks. Its compact 64-pin TQFP surface mount package provides ease of integration into circuit boards with limited space.
Designed with the dsPIC33F core architecture, this digital signal processor executes RISC instruction sets maximizing performance in digital filtering, audio processing, control loops, and power conversion. It is tailored for industrial, automotive, and power supply applications, compliant with IEC 60730 and rigorous automotive standards such as AEC-Q100 Rev G Grade 0 and Grade 1, ensuring reliability in demanding environments.
The product is ideal for embedded system developers engaging in precision motor control, digital power supplies, audio processing, and advanced digital filtering operations. Leveraging its peripherals and high instruction rate, it supports intelligent control solutions in automation, automotive electronics, and power conversion industries.
With a temperature tolerance from -40°C to 85°C, it suits harsh environment applications. The device's package dimensions are 10 mm length, 10 mm width, and 1.05 mm height, fitting compact setups.
High-performance dsPIC33F core with 40 MIPS speed. 64 kB FLASH memory for advanced program storage. 16-bit data bus width for optimized data handling. Wide operating voltage from 3 V to 3.6 V. Supports 18 ADC channels and 12-bit ADC resolution.
Integrated 8 PWM channels and 9 timers for control applications. Compact 64-pin TQFP surface mount package. Meets IEC 60730 and automotive AEC-Q100 Rev G Grade 0 and 1 standards. Operates in temperature range -40°C to 85°C.
Ideal for motor control, digital power supply, and audio processing. Explore more Microchip digital signal processors and components in the Electronics & Electricals > Semiconductor > Digital Signal Processor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C.
It operates within a voltage range of 3 V to 3.6 V.
This model supports 18 ADC channels with a 12-bit resolution.
It delivers a processing speed of up to 40 MIPS.
The package dimensions are 10 mm in length, 10 mm in width, and 1.05 mm in height.
It comes in a surface mount 64-pin TQFP package.
This unit incorporates 8 PWM channels.
It complies with IEC 60730 and automotive AEC-Q100 Rev G Grade 0 and Grade 1 standards.
The RAM size is 16 kB.
It is based on the dsPIC33F core architecture, utilizing RISC instruction sets.
The minimum operating temperature is -40°C.
It is suitable for applications in motor control, digital power supplies, audio processing, and advanced digital filtering.
