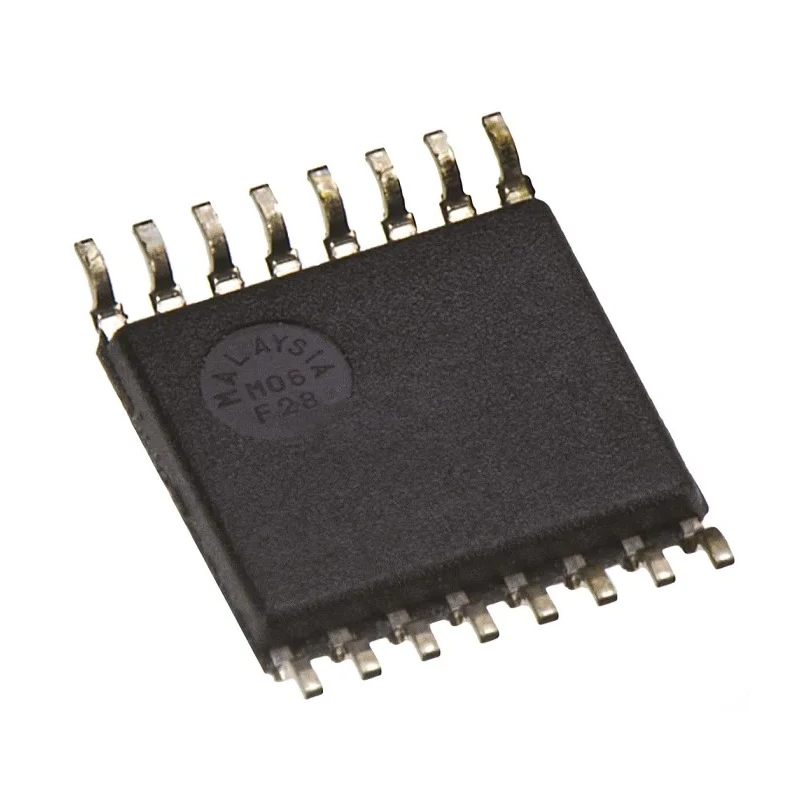

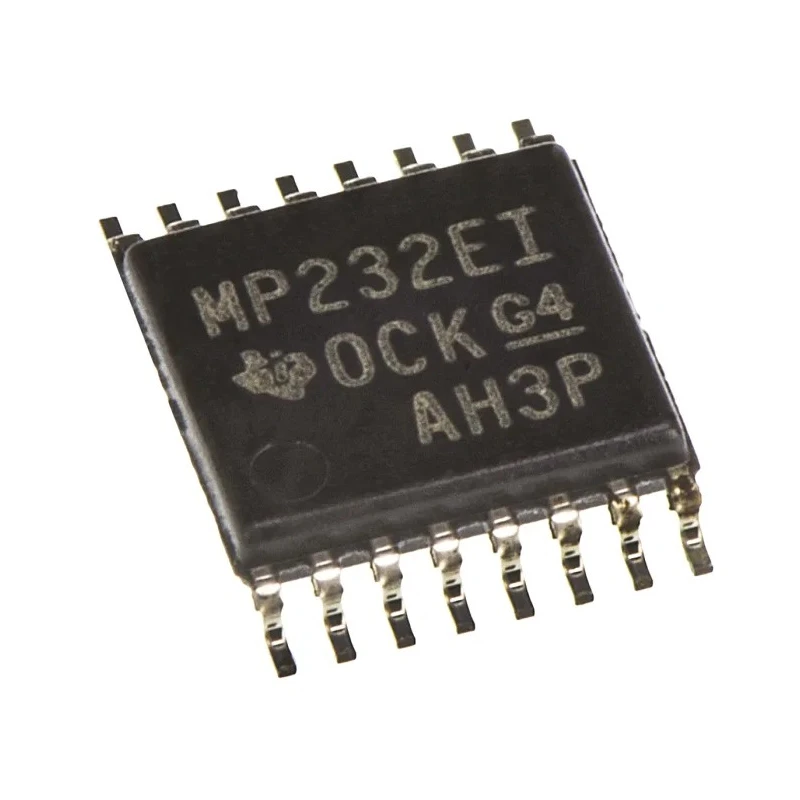

Texas Instruments MAX3232EIPW RS-232 Line Transceiver Dual Driver & Receiver 3V to 5.5V, 16-Pin TSSOP MAX3232EIPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MAX3232EIPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MAX3232E |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates from a single 3V to 5.5V supply voltage range.
- Features dual line drivers and dual line receivers achieving RS-232 signal levels.
- Comes in a compact 16-Pin TSSOP surface mount package.
- Supports data rates up to 1 Mbps for reliable communication.
- Includes ESD protection up to ±15 kV Human-Body Model protection.
- Offers low power consumption with a 1 mA supply current.
- Wide operating temperature range from -40°C to 85°C for robust industrial use.
- Complies with TIA/EIA-232-F and ITU V.28 standards.
Product Description
Texas Instruments MAX3232EIPW is a dual RS-232 line transceiver designed for interfacing microprocessors and communication equipment with RS-232 compatible serial ports. Operating from a single 3V to 5.5V supply, it integrates dual line drivers and receivers that meet the TIA/EIA-232-F and ITU V.28 standards, making it suitable for industrial, communication, and embedded system applications.
This device features robust ESD protection up to ±15 kV (Human-Body Model) and ±8 kV (Contact Discharge), providing enhanced reliability. The MAX3232EIPW supports data transfer rates up to 1 Mbps, ensuring efficient and fast serial communication.
The 16-Pin TSSOP package offers a compact footprint (5.1 mm length, 4.5 mm width, 1.2 mm height) with surface mount capability, ideal for space-constrained applications. Its low supply current of 1 mA ensures energy efficiency in battery-operated and low-power devices.
Operating temperature ranges from -40°C to 85°C, allowing deployment in harsh and variable industrial environments. The device includes features such as driver and receiver logic functions, single-ended input, and a maximum propagation delay of 300 ns at the specified capacitive load, optimizing signal timing and integrity.
This line transceiver is not automotive-rated and does not carry specific certifications; however, it is widely used in industrial and commercial applications for serial data communication.
Operates from single 3V to 5.5V supply voltage with low current consumption. Dual line drivers and receivers for RS-232 signaling. Compliant with TIA/EIA-232-F and ITU V.28 RS-232 standards. ESD protection up to ±15 kV Human-Body Model.
Compact 16-pin TSSOP surface mount package. Wide operating temperature range from -40°C to 85°C. Maximum propagation delay of 300 ns at capacitive load. Suitable for industrial, communication, and embedded device applications.
Explore more semiconductor devices and interface ICs at EnvMart for your industrial and electronic design needs.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates from a single supply voltage range of 3V to 5.5V.
The MAX3232EIPW supports data transfer rates up to 1 Mbps.
The package dimensions are 5.1 mm in length, 4.5 mm in width, and 1.2 mm in height.
It uses a single-ended input type for its operation.
The maximum propagation delay time is 300 ns at the specified capacitive load.
The operating temperature range is from -40°C to 85°C.
It includes ESD protection up to ±15 kV for the Human-Body Model and ±8 kV for Contact Discharge.
Yes, it complies with TIA/EIA-232-F and ITU V.28 standards.
The supply current is 1 mA, which contributes to its low power consumption.
It is suitable for industrial, communication, and embedded system applications.
This model features a surface mount type for installation.
