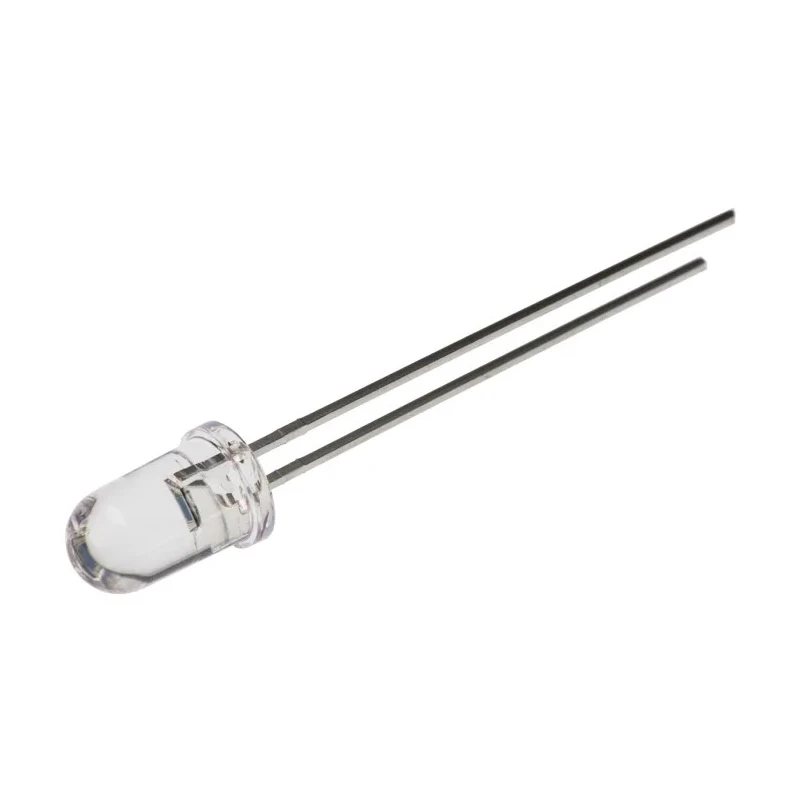

ams OSRAM Infrared Visible Light Photodiode Through Hole T-1 3/4 Package SFH 213

ams OSRAM SFH 213 is an Infrared and Visible Light Photodiode enclosed in a 5mm Through Hole T-1 3/4 clear plastic package optimized for electronic component use. It operates within wavelength detection range from 400nm to 1100nm, peaking at 850nm which makes it suitable for applications requiring sensitive photodetection of infrared and visible light.

The component supports through-hole mounting on printed circuit boards and features a radiant sensitive area of 1 x 1 mm², ensuring precise light detection. Its operational temperature ranges from -40°C to 85°C which provides reliability in industrial and commercial environments.

This photodiode is ideal for use in high-speed photointerrupters, industrial electronics, and control or drive circuits. The device achieves short switching times with typical rise and fall times of only 0.005 microseconds, making it suitable for fast signal detection.

Additional electrical characteristics include a short circuit current of 71μA, a dark current of merely 5nA, an open circuit voltage of 350mV, and a breakdown voltage of 20V. The half sensitivity angle of 10 degrees allows for effective directional light detection. It is a forward polarity device featuring 2 pins connection and complies with RoHS environmental safety standards.

Its packaging in tape and reel format facilitates automated insertion during manufacturing processes, enhancing production efficiency. This component, part of the SFH series by ams OSRAM, does not include amplification in its design.

Photodiode detects infrared and visible light spectrum range effectively. Through-hole T-1 3/4 package designed for ease of mounting. Operates reliably between -40°C and 85°C temperature range. Low dark current of 5nA ensures low noise performance.

Short switching time with rise and fall times of 0.005μs. Has a radiant sensitive area of 1 x 1 mm² for precise detection. Open circuit voltage of 350mV and breakdown voltage of 20V. Angle of half sensitivity is 10 degrees for focused photodetection.

Complies with RoHS environmental standards. Non-amplified photodiode with forward polarity and 2 pins for connection.

This photodiode is widely used in electronic sensors, industrial electronics, optical communications, and automation industries. It excels in applications that require precise and fast infrared and visible light detection. Browse the Photodiode category at EnvMart for more electronic components from ams OSRAM and other manufacturers.
