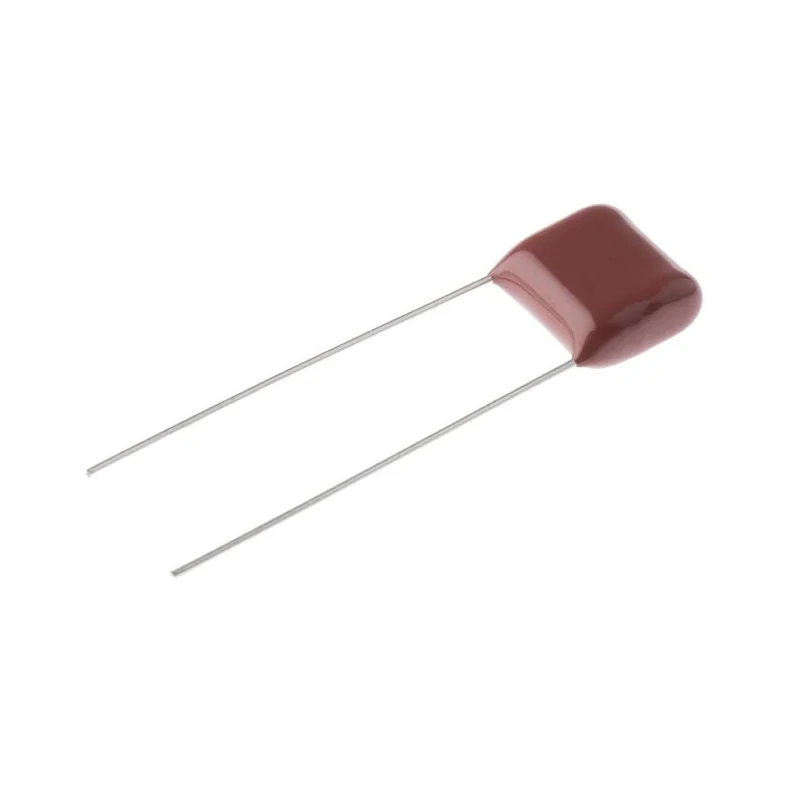

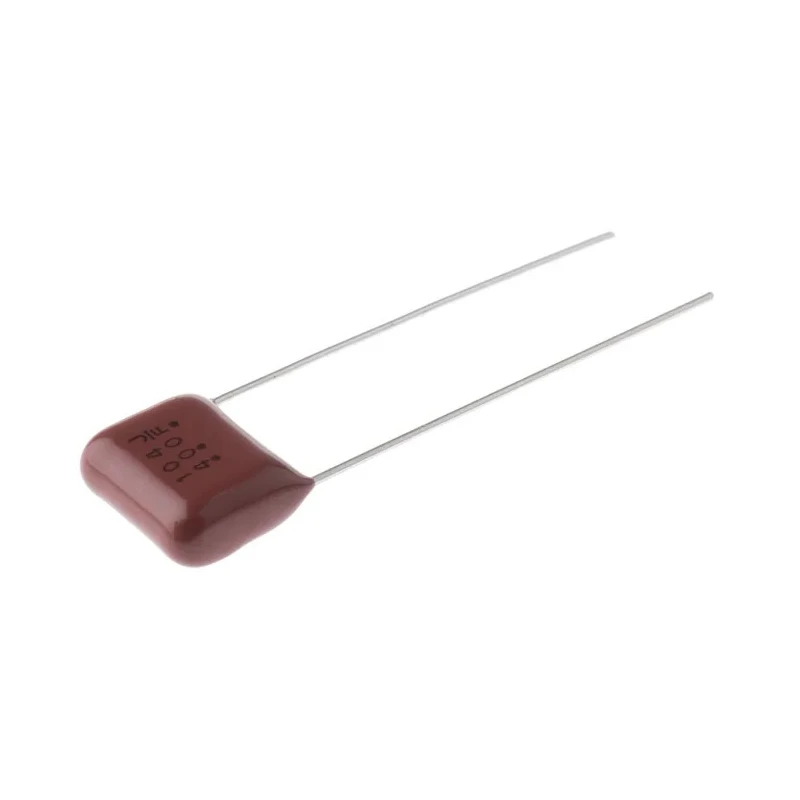

Panasonic ECQE4104JF ECQE(F) Film Capacitor 100 nF 400V AC 400V DC Through Hole 2 Pin 10mm Pitch

Panasonic ECQE4104JF ECQE(F) film capacitor is a high-quality passive electronic component designed for a wide range of electronic applications. It features a capacitance of 100 nF and a rated voltage of 400V AC and 400V DC, making it suitable for circuits requiring stable and reliable capacitance performance. The component uses a through-hole mounting style with two pins set at a 10 mm pitch, facilitating easy and secure installation in printed circuit boards.

Manufactured from metallised polyester film, this capacitor provides excellent reliability and durability. It is coated with flame-retardant epoxy resin, enhancing safety by reducing the risk of fire hazards under high-temperature conditions. Operating effectively within a temperature range up to 105°C, it supports demanding environments and applications.

Key features include a low dissipation factor for energy efficiency and superior self-healing properties that allow recovery from minor electrical faults, thereby extending operational life. The capacitor meets automotive quality standards (AEC-Q200) and complies with UL 60384-14, EN 60384-14, and CSA E60384-14 standards.

This capacitor is ideal for use in general electronic circuits, ignition systems, timing and filtering circuits, as well as automation and machinery control applications. It is also commonly found in power supply circuitry, where stability and high voltage tolerance are critical.

Constructed from metallised polyester film for reliable performance. Rated maximum operating temperature of 105°C for diverse environmental conditions. Flame-retardant epoxy resin coating enhances safety. Low dissipation factor ensures efficient energy use.

Compliant with automotive AEC-Q200 standard for quality assurance. Compact dimensions: 12mm height, 12mm length, 6.3mm width, and 0.6mm lead diameter. Designed for general electronic circuits, ignition-related applications, timing, filtering, automation, and power supply circuits.

Excellent self-healing property to maintain capacitor lifespan under electrical stress.

Suitable for industrial, automotive, electronics manufacturing, repair, and prototyping settings, Panasonic ECQE4104JF ensures dependable performance for critical electronic applications. Browse Panasonic and other Film Capacitors on EnvMart for matching components and replacement parts.
