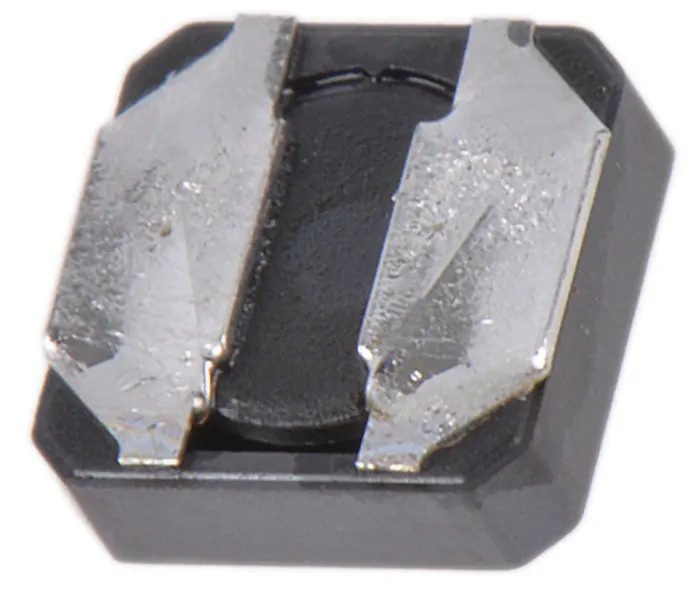

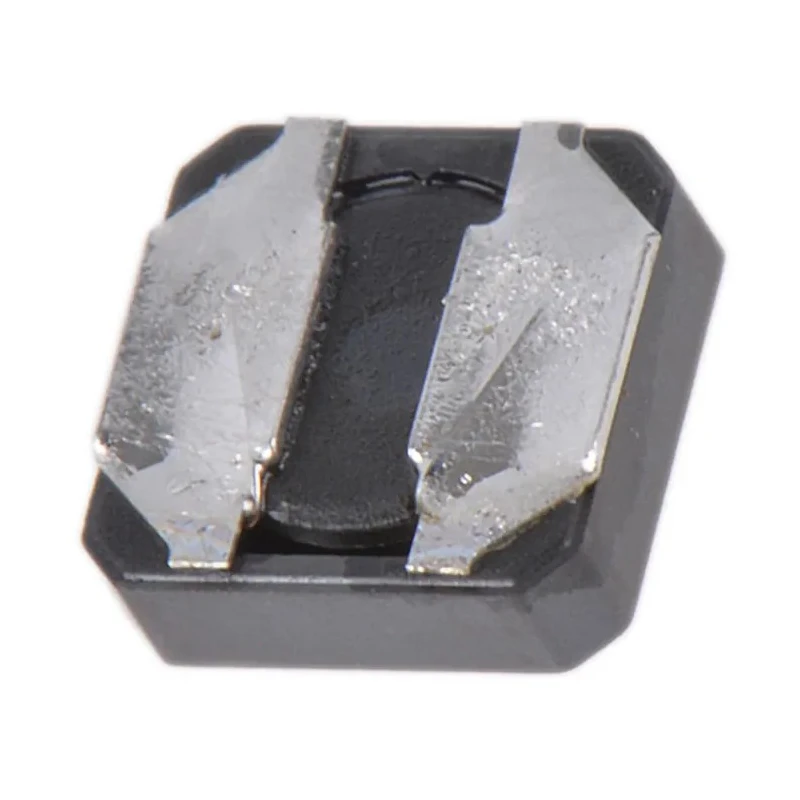

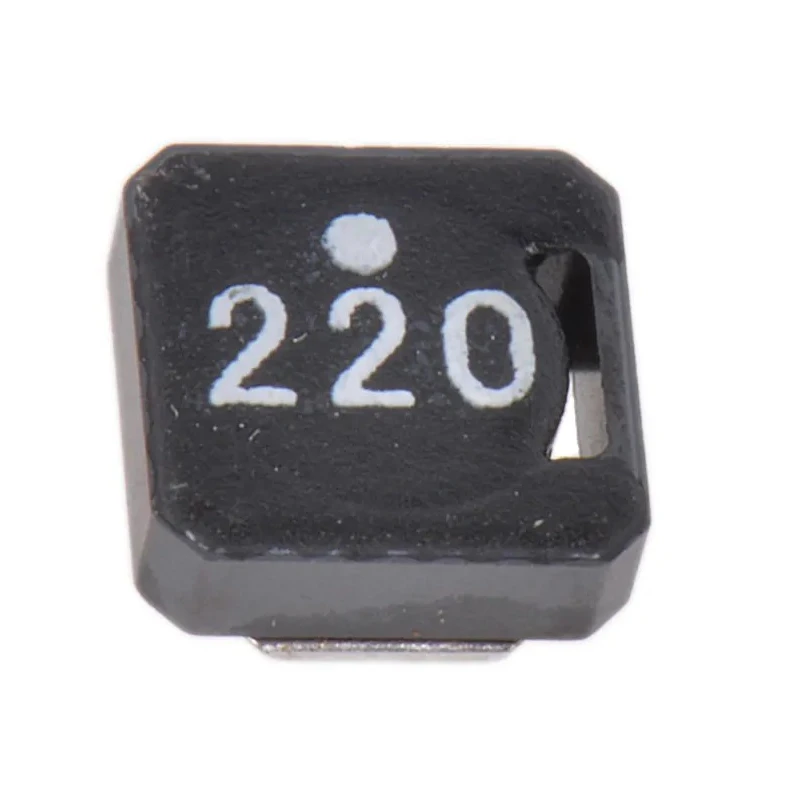

TDK VLCF Shielded Wirewound Surface Mount Inductor Ferrite Core 22 μH ±20/±30% 1 A IDC VLCF5020T-220MR75-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-220MR75-1 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 496mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- This inductor is part of the VLCF series with high magnetic shielding for enhanced performance.
- The package case size is 5020 with compact dimensions of 5.3 mm length, 5 mm depth and 2 mm height.
- Designed with a wirewound construction and ferrite core, it offers stability over a temperature range of -40°C to 105°C.
- The device includes tape and reel packaging, ideal for automated manufacturing assembly.
- Typical maximum DC resistance is 496 mΩ ensuring efficient current handling.
- The inductor complies with RoHS standards indicating environmental safety.
- Surface mount termination style facilitates integration into diverse electronic circuits.
Product Description
TDK VLCF5020T-220MR75-1 shielded wirewound surface mount inductor with a ferrite core delivers 22 μH inductance with ±20/±30% tolerance, capable of handling up to 1 A maximum DC current. This VLCF series product features a high magnetic shield construction aimed at improving performance in power circuits.
Its compact 5020 package measures 5.3 mm in length, 5 mm in depth and 2 mm in height, making it suitable for mobile device power sources including HDDs, digital video cameras, digital still cameras, LCD displays, and various DC to DC converters.
The inductor operates reliably within a wide temperature range from -40°C to 105°C and incorporates a wirewound construction over a ferrite core to enhance magnetic efficiency and minimize electromagnetic interference through its shielding.
Packaged in tape and reel, this component is ready for automated automated machine insertion, improving production efficiency in mass manufacturing environments.
Compliance with RoHS ensures that the product meets environmental and safety standards, suitable for industrial, telecommunications, consumer electronics, and automotive applications that do not require automotive specific standards.
This component offers high magnetic shielding, reducing EMI in critical applications. Wirewound construction enhances inductance stability and power handling capacity. Compact 5020 surface mount case optimizes PCB space usage.
Designed for integration within DC to DC converter power circuits of mobile and consumer electronics. Tape and reel packaging supports efficient automated assembly. Maximum DC resistance at 496 mΩ ensures minimal energy losses.
Temperature rating supports a broad range of operating environments.
For detailed design and application information, TDK provides extensive technical documentation including 3D models, schematics, and PCB footprints. This product is part of EnvMart's extensive catalog of high-quality Surface Mount Inductors ideal for electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20/±30%.
It can handle a maximum DC current of 1 A.
This inductor has dimensions of 5.3 mm in length, 5 mm in depth, and 2 mm in height.
The operating temperature range is from -40°C to 105°C.
It features a wirewound construction over a ferrite core, enhancing magnetic efficiency and minimizing electromagnetic interference.
It is packaged in tape and reel format, which is suitable for automated manufacturing assembly.
The typical maximum DC resistance is 496 mΩ, ensuring efficient current handling.
Yes, it complies with RoHS standards, indicating it meets environmental safety requirements.
The termination style is surface mount, facilitating integration into various electronic circuits.
It is suitable for use in power circuits of mobile devices, including HDDs, digital cameras, LCD displays, and DC to DC converters.
This inductor is part of the VLCF series, designed for high magnetic shielding and performance.
The country of origin for this inductor is India.
