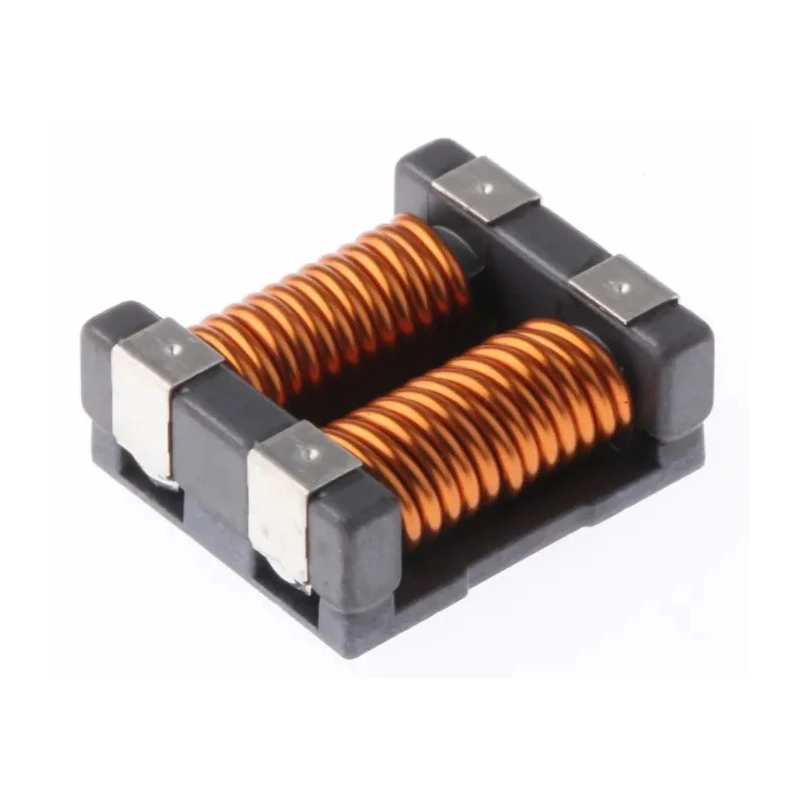

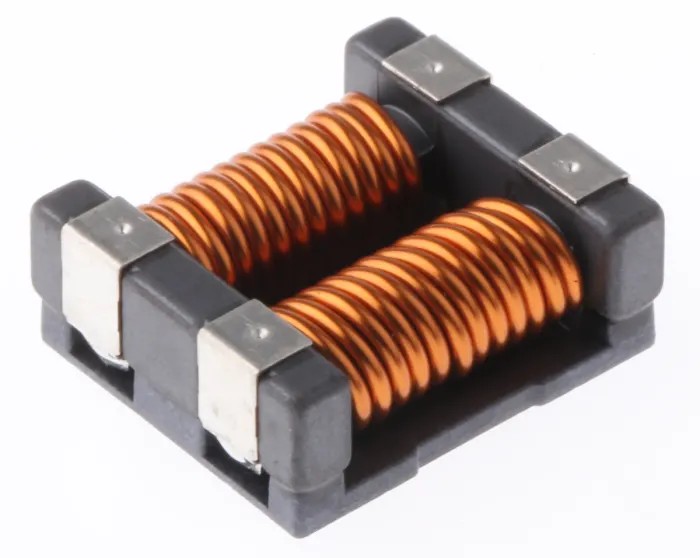

TDK Wirewound Surface Mount Inductor with Ferrite Core 10A Maximum DC Current ACM1513-551-2PL-TL
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 6mm |
| Length | 15mm |
| Model | ACM1513-551-2PL-TL |
| Depth | 6mm |
| Packaging | Taping |
| Series | ACM |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Interfaces | USB and IEEE1394 computer lines, LVDS panel link lines |
| Core Material | Ferrite |
| Standards/Approvals | RoHS |
| Package/Case | 1513 |
| Maximum DC Current | 10A |
| Pin Count | 4 |
| Maximum DC Resistance | 4mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Compact 1513 package size with surface mount termination style.
- Constructed using wirewound inductor design and ferrite core material.
- Handles maximum DC resistance of 4 mΩ for minimal power loss.
- Operates reliably in temperature range from -25°C to 85°C.
- Features 4 pins facilitating easy PCB integration and stable mechanical fixing.
- Typical length of 15 mm with height and depth dimensions of 6 mm each.
- RoHS compliant ensuring environmental and safety standards adherence.
- Ideal for use in USB and IEEE1394 computer lines and LVDS panel link lines for common-mode noise suppression.
Product Description
The TDK ACM1513-551-2PL-TL is a high-quality wirewound Surface Mount Inductor designed with a ferrite core to provide excellent electromagnetic interference (EMI) suppression in electronic applications requiring high current capacity of up to 10 A DC. This miniature inductor features a compact 1513 package size and surface mount termination making it suitable for modern automated PCB assembly processes.
Constructed using a wirewound inductor design, it offers a low DC resistance of 4 mΩ which helps reduce power loss and heat generation. The device operates reliably within a wide temperature range of -25°C to 85°C, making it robust for diverse environmental conditions.

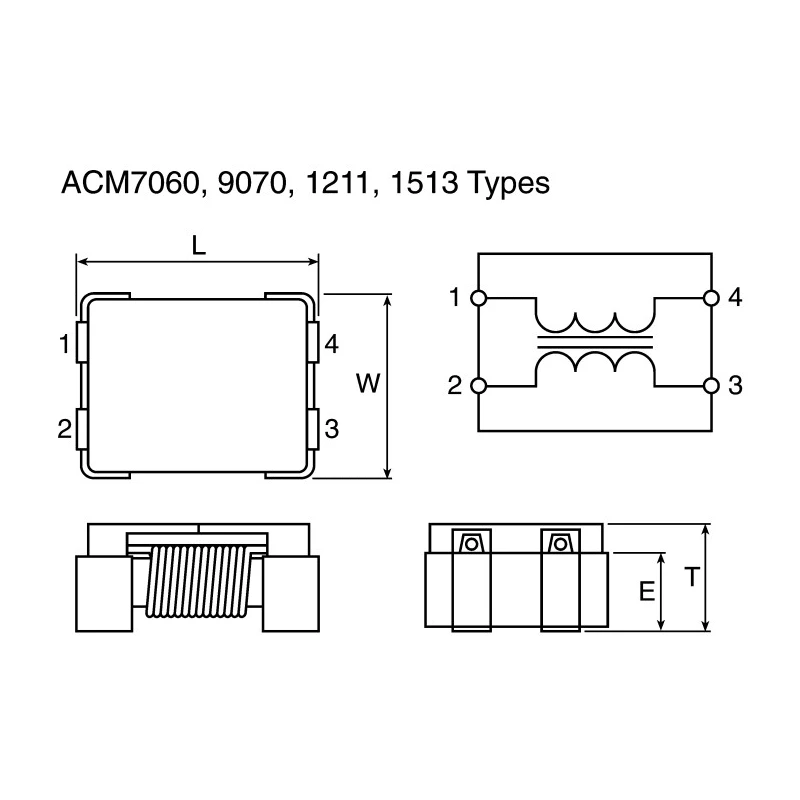

The inductor has a 15 mm length and both its height and depth measure 6 mm, optimized for space-conscious electronic designs. It includes 4 pins for secure mounting and electrical connection on printed circuit boards.
Compliant with RoHS standards, it supports environmentally safe manufacturing and disposal practices. Its common-mode choke design effectively suppresses noise on USB and IEEE1394 computer bus lines, as well as LVDS panel links, facilitating stable signal transmission and reducing undesirable electromagnetic interference.
Compact 1513 package size with surface mount termination style. Wirewound construction with ferrite core for high performance. Maximum DC current rating of 10 A to support demanding power applications. Low DC resistance of 4 mΩ reduces power loss.
Wide operating temperature range from -25°C to 85°C. Four-pin configuration for easy PCB integration. RoHS compliant to meet environmental regulations. Applications in radiation and common-mode noise suppression including USB and IEEE1394 lines.
This TDK inductor is suitable for industrial, commercial, and communication equipment requiring effective EMI suppression and reliable current handling. Explore more electronics components and inductors at EnvMart to find compatible products for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK ACM1513-551-2PL-TL has a maximum DC current rating of 10 A.
It operates reliably within a temperature range of -25°C to 85°C.
The inductor features a low DC resistance of 4 mΩ, which helps to minimize power loss.
This model has a length of 15 mm and both height and depth dimensions of 6 mm each.
It uses a surface mount termination style, suitable for modern PCB assembly processes.
The inductor has 4 pins for secure mounting and electrical connection on printed circuit boards.
The core material of this inductor is ferrite, which contributes to its electromagnetic interference suppression capabilities.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
It is ideal for use in USB and IEEE1394 computer lines and LVDS panel link lines for common-mode noise suppression.
The inductor comes in a compact 1513 package size, optimized for space-conscious electronic designs.
This inductor features a wirewound construction, which enhances its performance in high current applications.
The TDK ACM1513-551-2PL-TL is manufactured in India.
