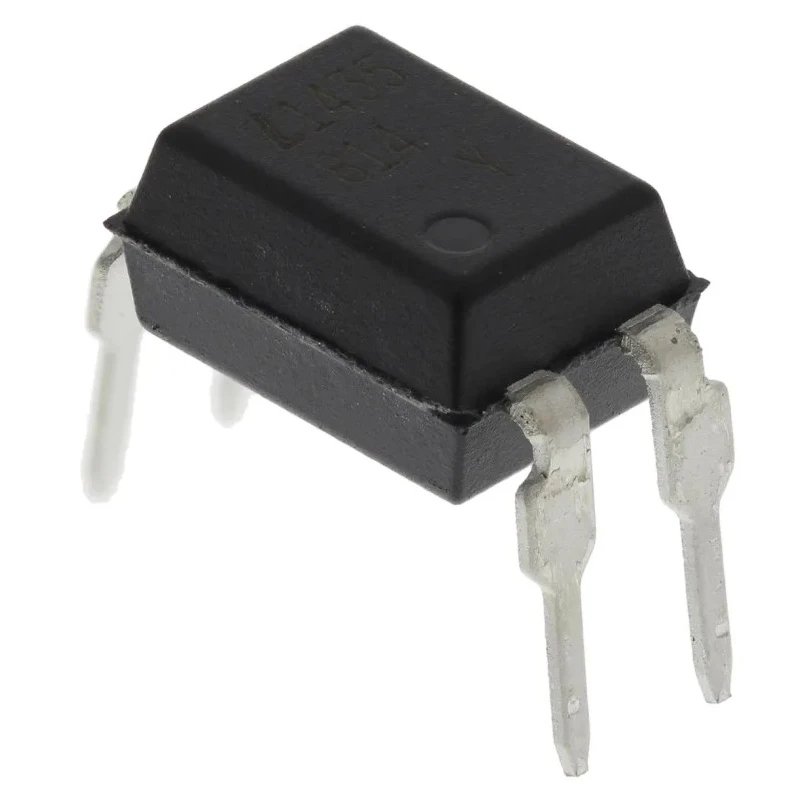

Lite-On AC Input Transistor Output Optocoupler Through Hole 4-Pin PDIP LTV-814
Specifications
| Country of Origin | India |
|---|---|
| Brand | Lite-On |
| Model | LTV-814 |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | LTV |
| Maximum Operating Temperature | 110°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -30°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 3% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 20% |
Key Features
- Features a maximum forward voltage of 1.4 volts for efficient operation.
- Supports input current up to 50 mA ensuring high reliability.
- Provides isolation voltage rated at 5 kVrms for circuit protection.
- Operates reliably from -30°C to 110°C temperature range.
- Includes fast switching times with typical rise time of 4 microseconds and fall time of 3 microseconds.
- Offers current transfer ratio between 20% minimum and 3% maximum.
- Meets CSA and UL standards ensuring quality and safety compliance.
- Part of the LTV series by Lite-On, suitable for transistor output optocoupler needs.
Product Description
The Lite-On LTV-814 is a high-quality AC input transistor output optocoupler designed for through hole mounting with a 4-pin PDIP package. This device provides electrical isolation between input and output signals in electronic circuits, ensuring enhanced signal integrity and safety.
Designed to operate with an input current AC type, it features a maximum forward voltage of 1.4 volts and supports input current up to 50 mA. The optocoupler operates efficiently over a wide temperature range from -30°C to 110°C, making it suitable for diverse industrial, electronics manufacturing, and laboratory applications.
With a typical rise time of 4 microseconds and fall time of 3 microseconds, the LTV-814 offers rapid switching performance necessary for precision electronic equipment. Its current transfer ratio ranges between a minimum of 20% and a maximum of 3%, enabling reliable signal transmission across isolated circuits.
The device is rated for an isolation voltage of 5 kVrms, providing strong insulation between input and output to protect sensitive downstream components. The LTV series from Lite-On includes various configurations, and the LTV-814 is tailored for AC input transistor output applications.
This optocoupler complies with CSA and UL standards, assuring safety and quality in professional electronics assembly and maintenance. Maximum forward voltage: 1.4V for stable operation. Maximum input current: 50mA to handle varying loads.
Isolation voltage: 5 kVrms to safeguard circuit components. Operating temperature range from -30°C to 110°C for versatility. Typical rise and fall times enable fast switching performance. Current transfer ratio optimized between 20% minimum and 3% maximum.
Compact 4-pin PDIP through hole mount package. Meets industry standards CSA and UL for compliance.
This optocoupler is commonly utilized in industrial electronics, electronic instrumentation, power supplies, and control systems where signal isolation and noise reduction are critical.
Discover a wide selection of Optocouplers and related components in the Electronics & Electricals category of EnvMart for all your professional and industrial electronics assembly needs.
