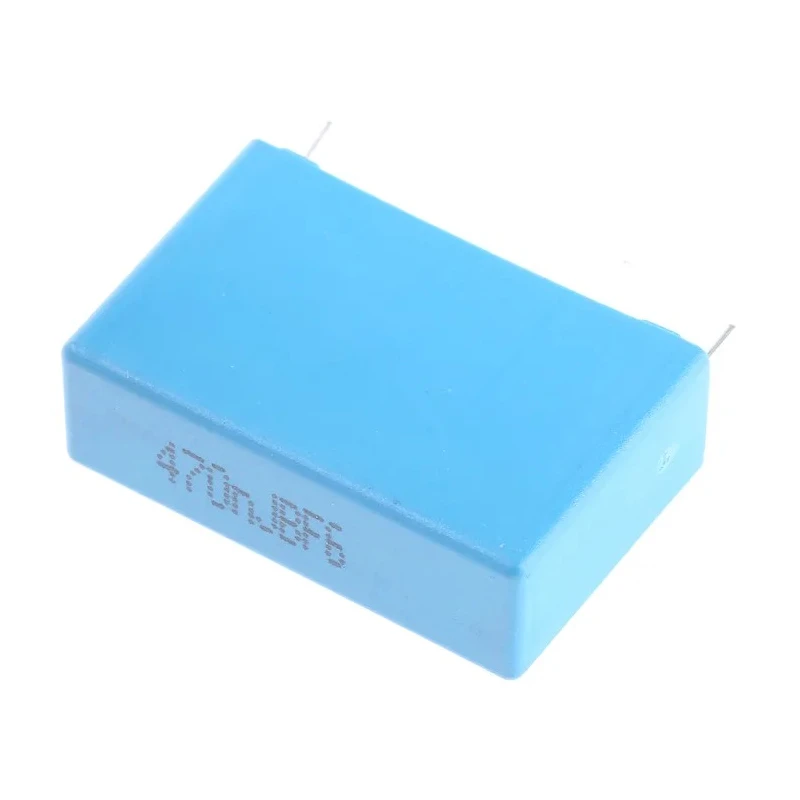

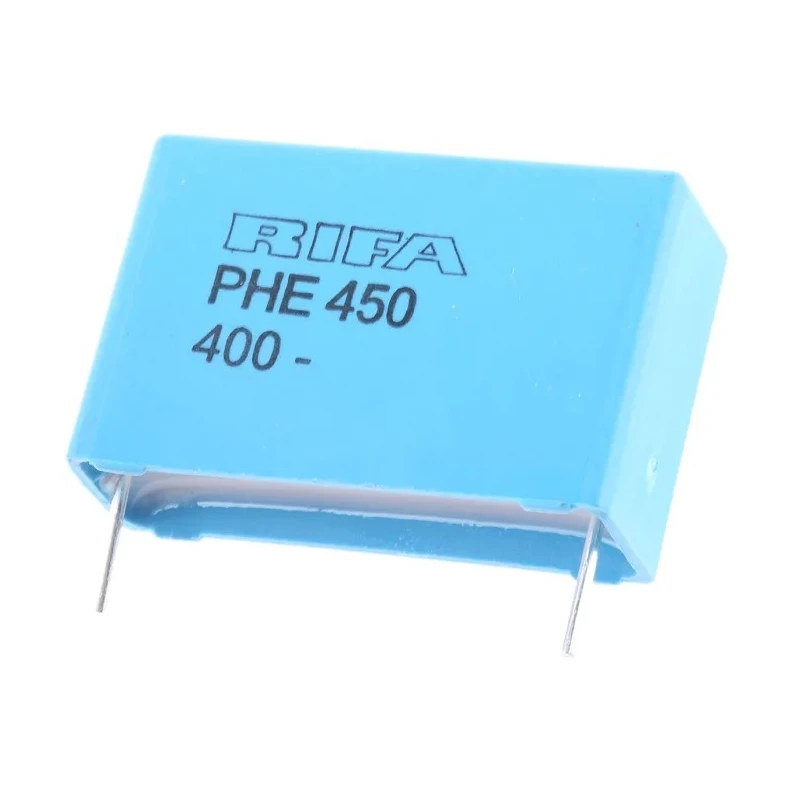

KEMET Film Capacitor, ±5% Tolerance, 470 nF, 400 V dc, 180 V ac, Through Hole Radial Lead PHE450

KEMET PHE450 Film Capacitor PHE450KF6470JR06L2 is a high-quality metallized polypropylene film capacitor designed for reliable performance in demanding electronic circuits. It offers a capacitance of 470 nF with a tolerance of ±5%, supporting a DC voltage rating of 400 V and an AC voltage rating of 180 V. This through-hole radial lead capacitor has a lead pitch of 27.5 mm and a lead diameter of 0.8 mm, making it suitable for through-hole PCB mounting.

Encapsulated in a self-extinguishing resin that meets UL 94 V-0 requirements, the PHE450 capacitor ensures enhanced safety and durability under high current stress conditions. It operates efficiently within a temperature range from -55°C to 105°C, which suits many industrial, commercial, and consumer electronics applications. The capacitor’s precise performance makes it ideal for pulse and snubber circuits in switch mode power supplies as well as deflection circuits in television sets.

Measuring 31.5 mm in length, 20.5 mm in height, and 10.5 mm in width, it is packaged in tape and reel format to facilitate automated assembly lines and improve production efficiency. The radial terminal design further ensures secure and reliable connections during installation.

KEMET's PHE450 series capacitors comply with RoHS standards, confirming their environmental safety and quality assurance. These capacitors are manufactured in Indonesia and provide a dissipation factor of 0.0003%, reflecting low energy loss for sensitive electronic circuits.

The capacitor features a rated AC voltage of 180 V and DC voltage of 400 V. It has a capacitance of 470 nanofarads with ±5% tolerance for accuracy. Constructed with double metallized polypropylene film, encapsulated in a self-extinguishing resin meeting UL 94 V-0 standards.

Lead pitch measures 27.5 mm with radial terminal type and 0.8 mm lead diameter. Operational temperature range spans from -55°C to 105°C for versatile applications. Dimensions are 31.5 mm length, 20.5 mm height, and 10.5 mm width, suitable for through-hole mounting.

Ideal for pulse and snubber circuits in switch mode power supplies and deflection circuits in televisions. Compliant with RoHS standards, ensuring environmental safety and quality. Packaging is tape and reel for automated assembly processes.

Applications include use in industrial electronics, power supply design, consumer electronics, telecommunications equipment, and other fields requiring stable, low-loss capacitors. Choose KEMET PHE450 for dependable performance, longevity, and compliance with international standards.
