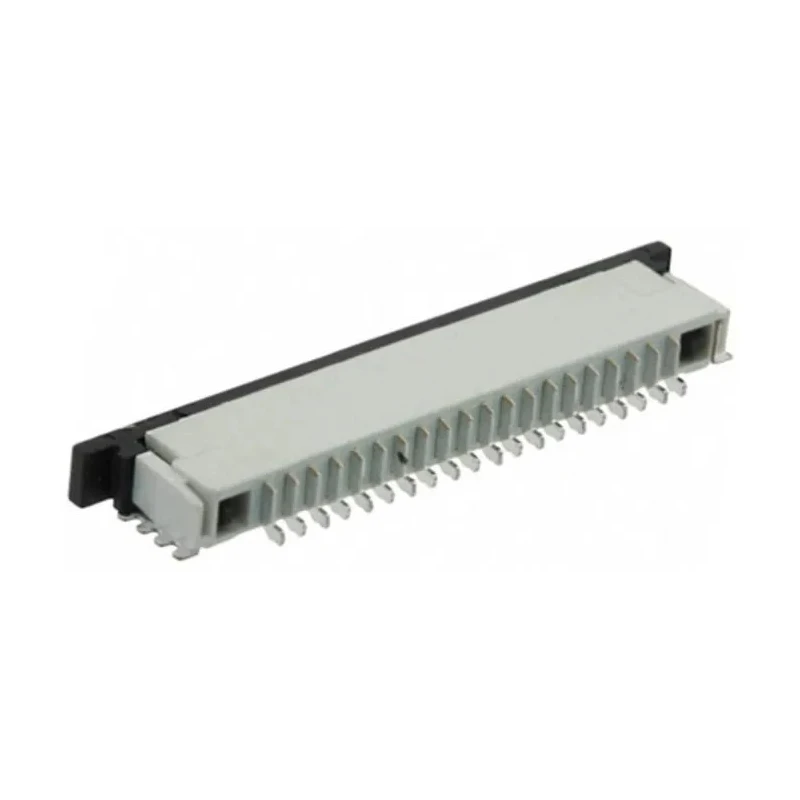

TE Connectivity FPC 1 mm Pitch 24 Way Right Angle Female FPC Connector, Solder 2-84952-4

TE Connectivity 2-84952-4 FPC Connector is designed with a 1 mm pitch and 24 female contacts in a right angle configuration. It supports solder termination and is constructed to industry standards for reliable electrical connections in compact spaces.

This connector features phosphor bronze contacts plated with tin, ensuring excellent conductivity and corrosion resistance. The housing is made of liquid crystal polymer, providing robustness and stability under thermal and mechanical stress.

Equipped with a Zero Insertion Force (ZIF) slider lock actuator, it allows for easy insertion and removal of Flexible Printed Circuit (FPC) cables without damaging contacts, enhancing durability and mating cycles. The surface mount design includes solder tabs that increase retention strength to PCBs.

Operating at a voltage of 200 V AC and a current of 1 A, the connector is suited for a wide range of applications including handheld scanners, set-top boxes, PCs, peripherals, industrial equipment, medical devices, and business equipment. Rated for temperatures from -40°C to 85°C, it performs reliably in various environmental conditions.

The compact 1.0 mm pitch and single-row layout provide an efficient solution for routing signals in confined spaces where larger wire-to-board connectors are impractical. Compact 1 mm pitch design suitable for high density PCB applications.

Features 24 contacts made of phosphor bronze with tin plating for reliable electrical performance. Right angle orientation with bottom contact position ensures efficient cable routing. Zero Insertion Force (ZIF) slider lock actuator for easy, secure cable insertion and extended contact durability.

Surface mount type with solder termination for strong PCB retention. Operating voltage rated at 200 V AC, supporting 1 A current capacity. Housing made from liquid crystal polymer provides high mechanical and thermal stability.

Wide operating temperature range from -40°C to 85°C suitable for demanding environments. Single row configuration with locking mechanism for reliable connections in industrial and medical equipment.

This TE Connectivity FPC Connector is widely applicable in electronic manufacturing sectors, including industrial automation, medical instrumentation, consumer electronics, and telecom equipment. It provides a secure, durable connection with reduced wear and improved retention for flexible printed circuits.
