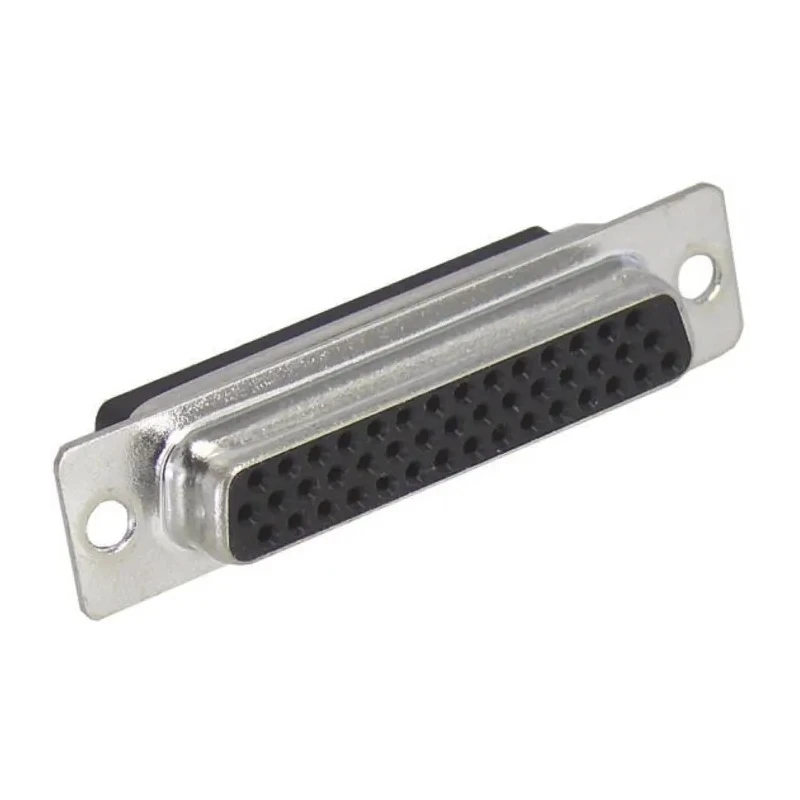

HARTING D-Sub Connector 62 Way Straight 2.41 mm Pitch Cable Female with Screw Lock 09564004701
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | Screw Lock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.41mm |
| Standards/Approvals | UL Recognised, UL 94-V0, RoHS |
| Contact Plating | Gold Plated |
| Number of Contacts | 62 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-4 |
Key Features
- The connector features 62 contacts with a 2.41 mm pitch for compact high-density connections.
- It is designed for cable mounting with a straight orientation suitable for various applications.
- The housing is made of durable steel with a metal shell providing good mechanical strength.
- Contacts are gold plated copper alloy, ensuring excellent electrical conductivity and corrosion resistance.
- Supports 2A current and operates up to 1000V with temperature tolerance from -55°C to 105°C.
- Termination is via crimp type contacts, with the connector gender female and mounting hardware using a screw lock.
- Certified to UL Recognised, UL 94-V0, and RoHS standards for quality and safety.
Product Description
HARTING 09564004701 D-Sub Connector 62 Way Straight Female is a high-density cable connector designed for robust electronic component interconnection applications. It features a compact 2.41 mm pitch that allows 62 contacts in a small form factor, optimizing space for complex wiring harnesses.
The connector is made with a steel housing providing enhanced mechanical protection and durability. Its screw lock mounting ensures secure and stable fixed connections in demanding industrial environments.
This D-Sub connector supports current ratings of 2A and withstands voltage levels up to 1000V, suitable for a variety of power and signal transmission uses across industrial, manufacturing, and electronic equipment sectors.
The connector operates reliably in harsh temperature conditions between -55°C and 105°C. Crimp termination offers secure contact attachment, improving connectivity and reducing installation time.
Contacts are fabricated from copper alloy and plated with gold, delivering superior conductivity and resistance to wear and corrosion. This product complies with UL Recognized Component standards, the UL 94-V0 flammability rating, and RoHS environmental compliance, ensuring safety and sustainability.
The connector features 62 contacts with a 2.41 mm pitch for compact high-density connections. It is designed for cable mounting with a straight orientation and screw lock mechanism for secure fixing. The steel housing provides robust protection and mechanical stability.
Gold plated copper alloy contacts assure high conductivity and durability. Supports 2A current and operates at up to 1000V voltage rating. Termination type is crimp, simplifying assembly and maintenance. Suitable for industrial, manufacturing, automotive, and electronic applications requiring reliable high-density connections.
This HARTING D-Sub Connector model 09564004701 provides a reliable interface in electronic assemblies, enhancing performance, safety, and durability. For more options and related products, browse the Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a maximum voltage rating of 1000V.
It supports a current capacity of 2A.
The connector features a pitch of 2.41 mm for its 62 contacts.
The housing is made of steel, while the contacts are fabricated from copper alloy and gold plated for enhanced conductivity.
This model is designed for cable mounting and features a screw lock mechanism for secure fixing.
It can operate reliably in temperatures ranging from -55°C to 105°C.
The connector uses crimp type contacts for termination.
It is certified to UL Recognised, UL 94-V0, and RoHS standards.
The connector has female contacts.
This model features a total of 62 contacts.
It is suitable for various applications in industrial, manufacturing, automotive, and electronic sectors requiring reliable high-density connections.
The shell size for this D-Sub connector is DS-4.
