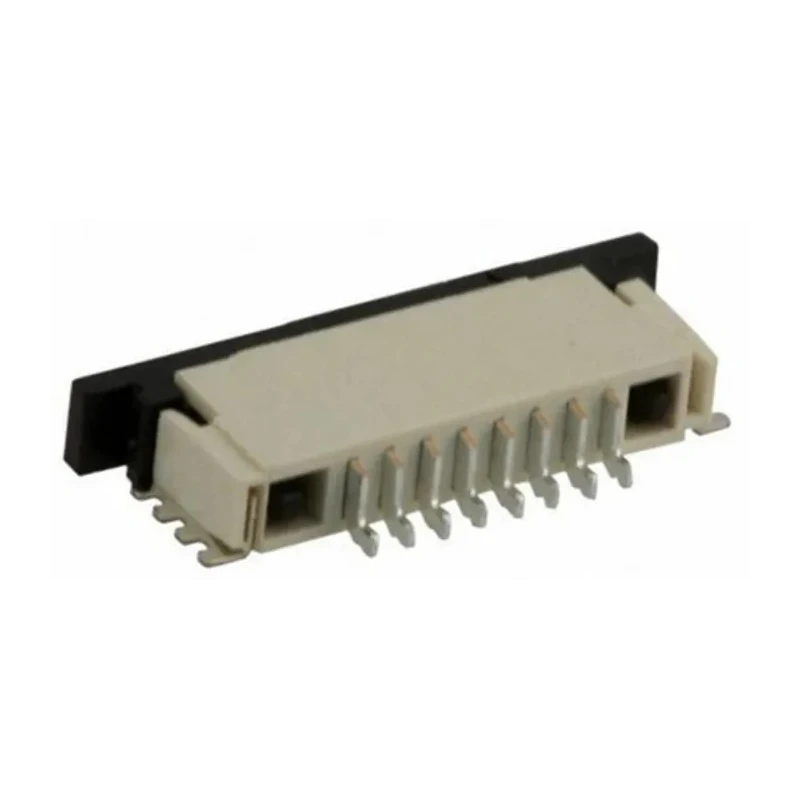

TE Connectivity FPC 1 mm Pitch 8 Way Right Angle Female FPC Connector ZIF Bottom Contact 84952-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 84952-8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | ZIF Bottom Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Offers a compact design suitable for tight PCB spaces.
- Features 8 female contacts with 1 mm pitch for precise signal routing.
- Utilizes ZIF bottom contact termination type ensuring minimal insertion force.
- Right angle orientation and slide lock actuator enhance secure cable insertion.
- Contact material is phosphor bronze with tin plating for corrosion resistance.
- Housing made from durable liquid crystal polymer for thermal stability.
- Rated for 1A current and 200V AC voltage operation.
- Operates reliably in temperatures from -40°C to 85°C.
Product Description
TE Connectivity model 84952-8 is an FPC (Flexible Printed Circuit) connector designed with a 1 mm pitch and 8 female contacts. This right angle connector features a ZIF (Zero Insertion Force) bottom contact termination, facilitating easy insertion and secure retention of the flexible circuit cables on the PCB without damaging the contacts.
The connector's phosphor bronze contacts are plated with tin, ensuring reliable conductivity and resistance to corrosion. Its compact design includes a slide lock actuator, which enhances mating cycles and durability by reducing wear and tear in high vibration environments. The connector housing is made of liquid crystal polymer, providing excellent thermal stability and mechanical strength.
Electrical ratings allow for 1A current and 200V AC voltage, making it compatible with various electronic applications requiring moderate current and voltage handling. It supports operation within a wide temperature range from -40°C to 85°C, suitable for many industrial and commercial conditions.
This FPC Connector is ideal for use in handheld scanners, set-top boxes, personal computers and peripherals, business equipment, medical devices, and various industrial electronics where compact and reliable PCB connections are critical.
Compact and robust design with a right angle orientation for space-saving PCB layouts. Zero Insertion Force bottom contact termination minimizes damage during assembly. Slide lock actuator provides secure cable retention and eases installation.
Phosphor bronze contacts with tin plating enhance conductivity and durability. Liquid crystal polymer housing ensures thermal and mechanical reliability. Rated for up to 1A current and 200V AC voltage applications. Wide operating temperature range from -40°C to 85°C for diverse environments.
Applicable across industrial, medical, business, and consumer electronics sectors. Explore EnvMart's comprehensive Electronics Components category for a wide selection of high-quality connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1A.
It is rated for operation at 200V AC voltage.
The contacts are designed with a pitch of 1 mm.
The contact material is phosphor bronze with tin plating, and the housing is made from liquid crystal polymer.
It operates reliably within a temperature range from -40°C to 85°C.
This connector features 8 female contacts.
It utilizes a ZIF (Zero Insertion Force) bottom contact termination type.
This model has a right angle orientation.
The mounting type is surface mount.
It is suitable for use in handheld scanners, set-top boxes, personal computers, medical devices, and various industrial electronics.
The slide lock actuator enhances durability by providing secure cable retention and reducing wear in high vibration environments.
The country of origin for this connector is India.
