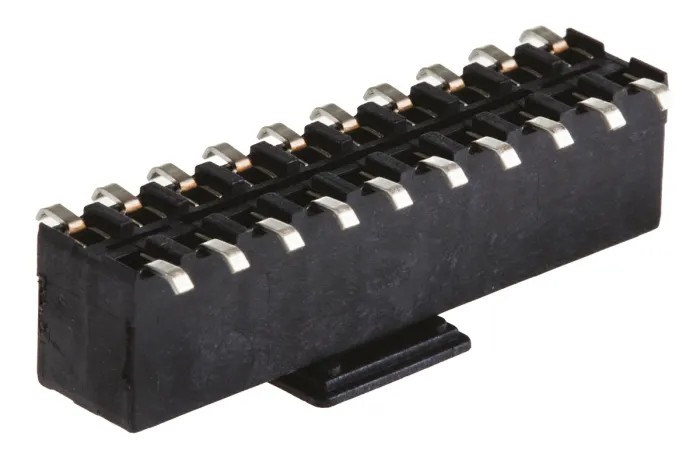

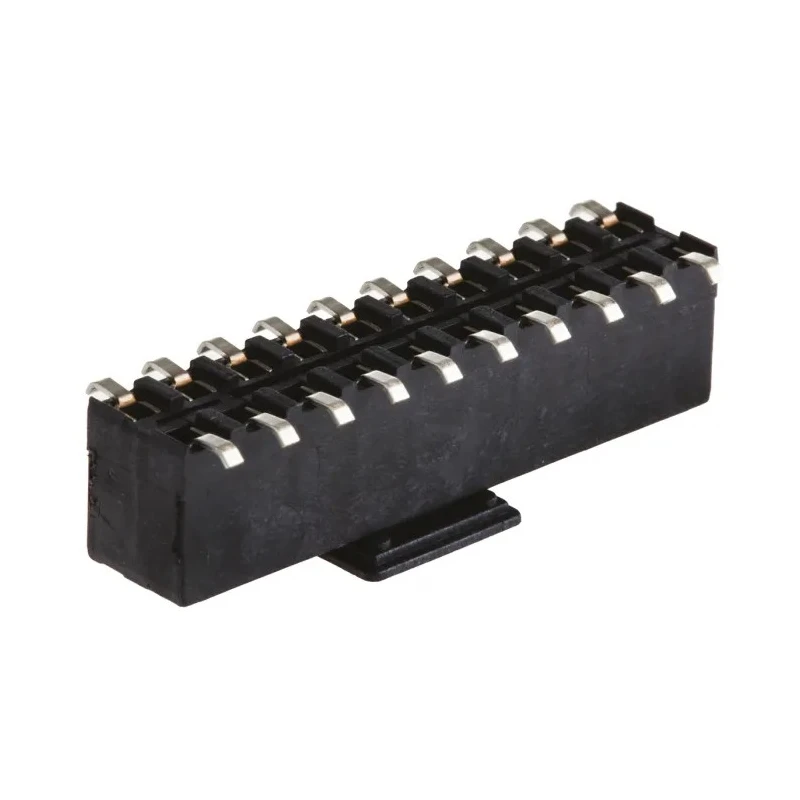

TE Connectivity AMPMODU HV100 Series 20-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket 250V 12A

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPMODU HV100 Series 20-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket 250V 12A

Name: TE Connectivity AMPMODU HV100 Series 20-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket 250V 12A
Brand: TE Connectivity
SKU: 123115



Category PCB Sockets Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	12A
Model	HV100
Mount Type	Surface
Contact Material	Bronze
Series	AMPMODU HV100
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Female
Connector System	Wire-to-Board

Key Features

This PCB socket features a 2.54 mm pitch for standard electronic applications.
It supports wire-to-board connections with a solder termination type.
The contacts are made of bronze and plated with tin for durability and conductivity.
Operating temperature ranges from -65°C to 105°C, suitable for demanding industrial environments.
The connector is RoHS compliant ensuring environmental safety.
Its straight orientation and surface mount allow easy PCB integration.
Designed as part of the AMPMODU HV100 series for broad industry compatibility.
Contact gender is female, matching typical mating connectors.

Product Description

TE Connectivity 1-969973-0 AMPMODU HV100 Series Straight Surface PCB Socket is a high-quality 20-contact, 2-row socket connector designed for reliable wire-to-board connections in electronics assemblies. It features a 2.54 mm pitch spacing and supports a maximum current of 12A at 250V, meeting rigorous industrial electronic standards.

Constructed with bronze contacts plated in tin, this PCB socket ensures excellent conductivity and resistance to corrosion. Its surface mount type and straight orientation facilitate easy and secure PCB mounting. The operating temperature range from -65°C to 105°C accommodates a wide range of industrial and commercial conditions.

This socket belongs to the AMPMODU HV100 series, known for modular interconnect reliability and versatility in applications such as manufacturing, testing equipment, communications, and control systems.

The design includes the ability to be end stackable with options for top or bottom entry, increasing flexibility in board layout design. Its female contact gender matches standard mating components, while the solder termination type provides strong mechanical and electrical connection.

The product complies with RoHS directives, ensuring environmental compliance with hazardous substance restrictions. It is supplied as a new condition component, ideal for use in prototype development, mass production, and repair tasks.

This PCB socket offers 20 contacts organized in 2 rows to optimize wiring density. Surface mount technology (SMT) provides a compact and automated PCB installation method. Suitable for use in electronics manufacturing and industrial automation equipment.

Robust contact material and plating ensure longevity and corrosion resistance. Wide temperature range supports harsh operating environments. RoHS compliance supports environmentally conscious manufacturing. End stackable and multiple entry options optimize space and system design.

Female connector gender enables compatibility with a broad range of mating connectors. Explore more PCB socket products by TE Connectivity and other leading brands in the Electronics Components category at EnvMart for diverse industrial and commercial applications.
