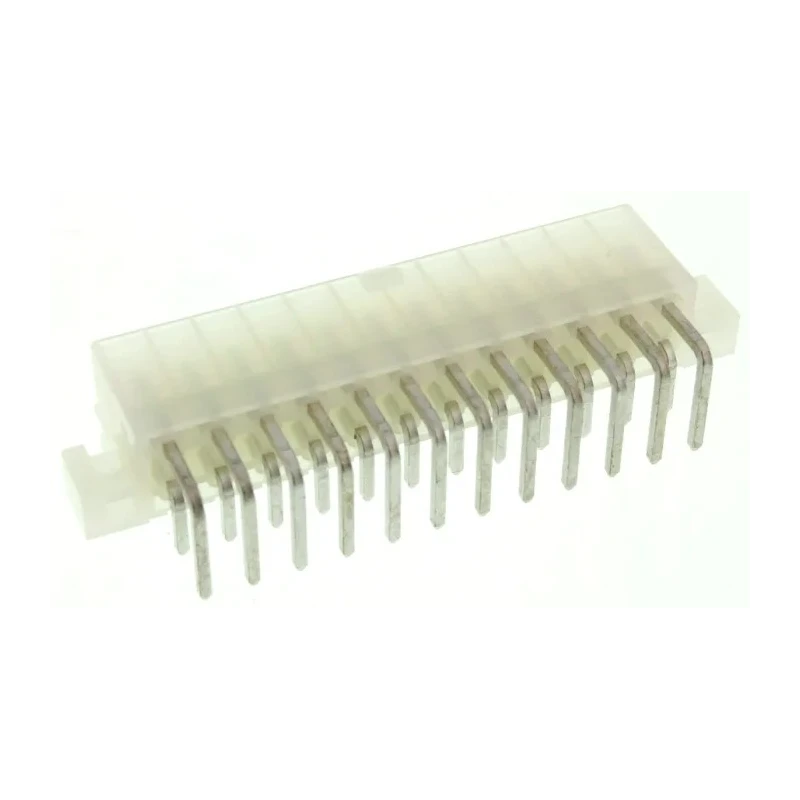

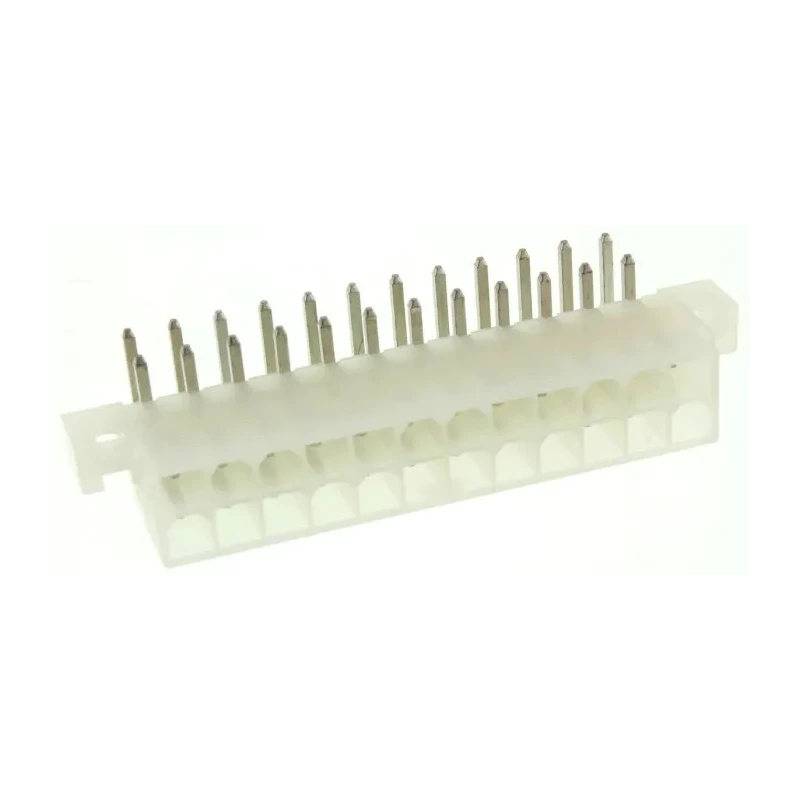

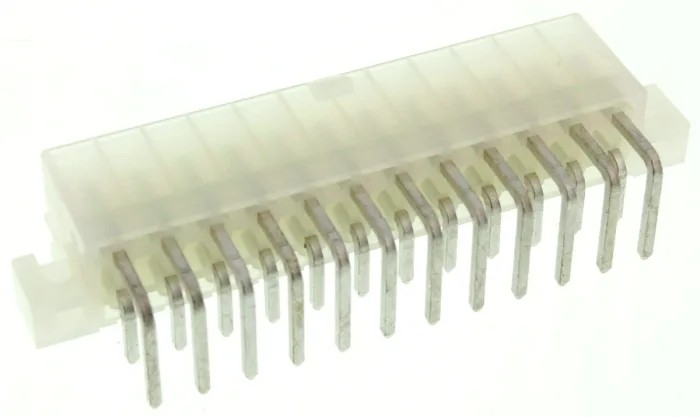

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header 24 Contacts 4.2mm Pitch 2 Row Shrouded 39-29-1248
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header supports high current up to 6A per contact.
- It features a durable nylon housing and brass contacts with tin plating.
- Right angle orientation and through hole mount type ensure reliable PCB connection.
- Fully isolated terminals prevent damage and ensure safety.
- The housing includes scoop-proof design and positive locking mechanism.
- Operating temperature ranges from -40°C to 105°C for robust performance.
- It is designed for wire-to-board connector systems with male contact gender.
Product Description
Molex 39-29-1248 Mini-Fit Jr Series Right Angle Through Hole PCB Header is engineered for reliable wire-to-board connections in demanding electronic applications. This shrouded header features 24 contacts arranged in two rows with a 4.2 mm pitch, providing efficient current handling up to 6A per circuit.
The connector uses brass contacts plated with tin to ensure dependable electrical conductivity and corrosion resistance. Its nylon housing is scoop-proof, protecting terminals from damage during mating, and includes polarization and keying features to prevent mismating.
The right angle orientation and through hole mounting provide sturdy mechanical support on PCBs. Fully isolated terminals safeguard against debris and arcing, further enhancing durability.
Designed to withstand temperatures from -40°C to 105°C, this header is suitable for consumer electronics, industrial automation equipment, networking devices, and office equipment requiring high current density and secure connections.
Supports up to 6A current per contact in high density PCB layouts. Durable nylon housing with scoop-proof design for longevity. Positive locking mechanism provides secure mating and audible click confirmation. Polarization and keying features prevent connector misalignment.
Brass contacts with tin plating ensure reliable conductivity and corrosion resistance. Operating temperature range from -40°C to 105°C supports harsh environments. Right angle, shrouded design for reliable mechanical and electrical interface.
This PCB header is a part of the renowned Mini-Fit Junior power connector system by Molex, widely used in electronics manufacturing requiring compact, reliable, and high current connectors. It is manufactured in China and complies with industry standards for performance and quality.
Explore more Molex Mini-Fit Jr power connectors and PCB Headers on EnvMart to meet diverse electronic connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 6A per contact.
The contacts in this model are arranged with a pitch of 4.2 mm.
It features a through hole mounting type, providing sturdy mechanical support on PCBs.
The housing is made of durable nylon, while the contacts are brass with tin plating for reliable conductivity.
The operating temperature range is from -40°C to 105°C, suitable for harsh environments.
This model has a total of 24 contacts arranged in two rows.
Yes, it includes polarization and keying features to prevent connector misalignment.
The orientation of this header is right angle, facilitating efficient PCB layouts.
This model uses solder termination for secure connections.
It is designed for wire-to-board connections in consumer electronics, industrial automation, networking devices, and office equipment.
Yes, it features a positive locking mechanism that provides secure mating and audible click confirmation.
This PCB header is manufactured in China.
