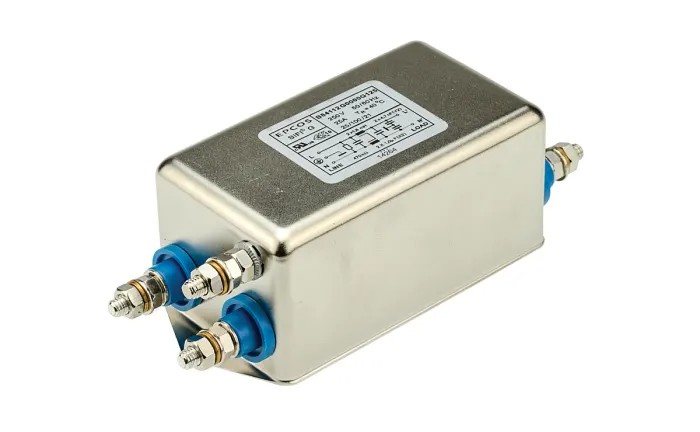

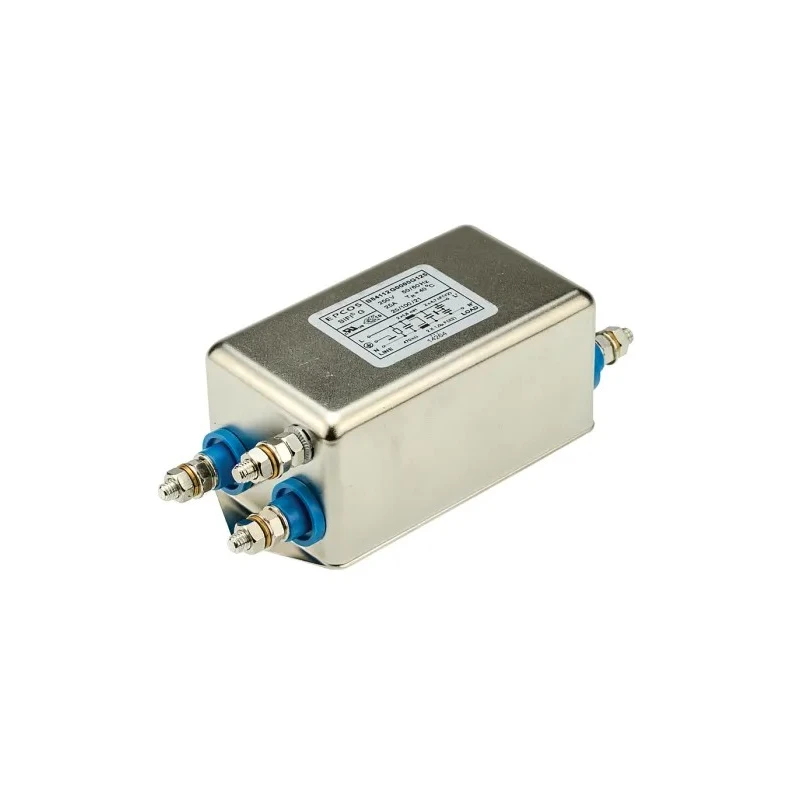

TDK Chassis Mount EMC Power Line Filter 25 A 250V AC/DC 50Hz/60Hz Screw Termination 1 Phase B84112G0000G125

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Power Line Filter 25 A 250V AC/DC 50Hz/60Hz Screw Termination 1 Phase B84112G0000G125



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	43mm
Length	135mm
Model	B84112G0000G125
Depth	52mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	25A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Screw

Key Features

Compact design with metal case for ease of installation.
Constructed of two line filters for enhanced interference suppression.
Operating temperature range from -25°C to 100°C ensuring reliable performance.
Leakage current is minimal at 369 μA for efficient operation.
UL 1283 standard approved ensuring safety and quality compliance.
Ideal for use in industrial electronics, switch-mode power supplies, telecom and data systems.

Product Description

TDK B84112G0000G125 chassis mount EMC power line filter is designed specifically for single phase systems with a rated current of 25 A and a voltage rating of 250 V AC/DC. It operates efficiently over standard power frequencies of 50 Hz and 60 Hz and uses screw termination for reliable connection.

Its compact and robust metal casing provides ease of installation and excellent durability, making it ideal for industrial and commercial electronic equipment.

The filter comprises two line filters to provide enhanced suppression of electromagnetic interference (EMI) and radio frequency interference (RFI), complying with UL 1283 standards for safety and effectiveness.

The operating temperature range from -25°C to 100°C allows it to perform reliably in diverse environmental conditions. With a low leakage current of 369 μA, this filter ensures minimal energy loss and efficient functioning.

Physical dimensions are 135 mm in length, 43 mm in height, and 52 mm in depth, making it suitable for chassis mounting in compact electronic enclosures and control panels.

Applications include industrial electronics, switch-mode power supplies, telecom systems, data communication equipment, and DC applications. There is also a specialized version available for medical equipment.

This TDK power line filter is manufactured in China to high quality standards and provides a robust solution for EMI filtering needs in various electronic systems. Compact design with metal case for ease of installation.

Constructed of two line filters for enhanced interference suppression. Rated voltage of 250 V AC/DC suitable for industrial applications. Operating temperature range from -25°C to 100°C ensuring reliable performance. Leakage current is minimal at 369 μA for efficient operation.

Dimensions: length 135 mm, height 43 mm, depth 52 mm for convenient chassis mounting. UL 1283 standard approved ensuring safety and quality compliance. Ideal for use in industrial electronics, switch-mode power supplies, telecom and data systems.
