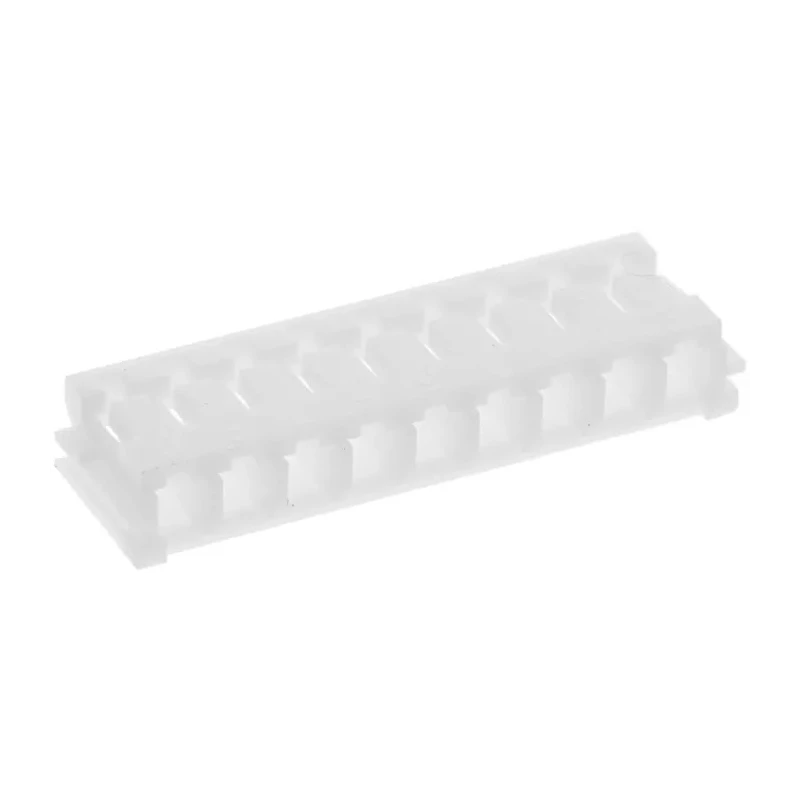

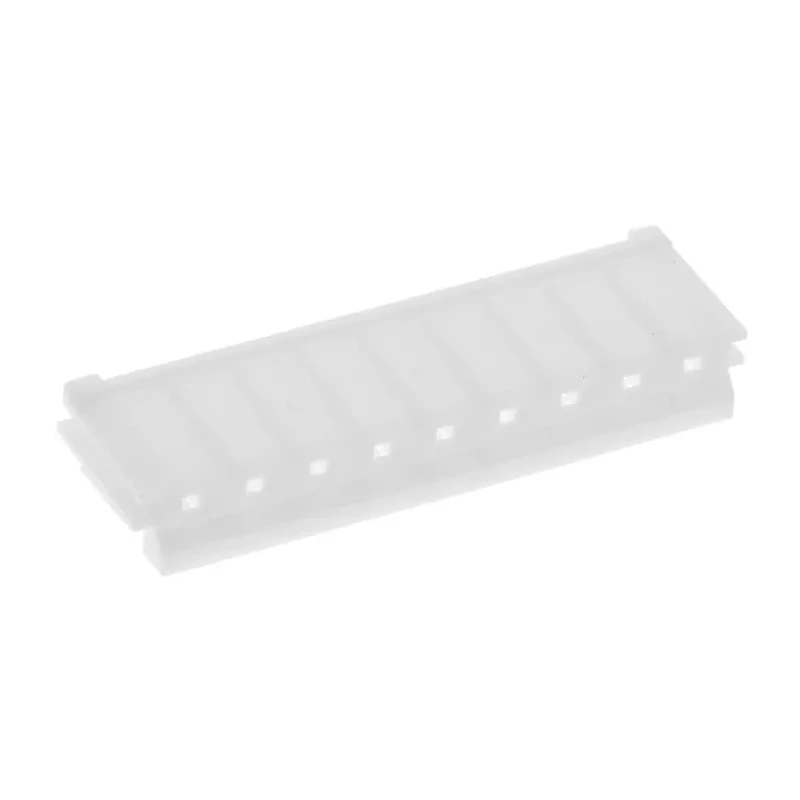

JST EH Female Connector Housing, 2.5 mm Pitch, 9 Way, 1 Row Straight EHR-9

Free Delivery in India | Lowest Global Shipping Charges

JST EH Female Connector Housing, 2.5 mm Pitch, 9 Way, 1 Row Straight EHR-9



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	24.5mm
Model	EHR-9
Width	3.8mm
Mount Type	Cable
Housing Material	Nylon
Series	EH
Number of Rows	1
Pitch	2.5mm
For Use With	Disconnectable Crimp Connector
Number of Contacts	9
Connector Gender	Female

Key Features

Features a slim and compact design enabling high-density PCB connections.
Manufactured from durable nylon housing material for reliable insulation.
Offers easy and effective crimping for quick assembly.
Includes polarising guides to prevent incorrect mating.
Compatible with EH series crimp socket connectors offering low contact resistance.
Orientation is straight for direct cable connections.
Has 9 contact positions arranged in a single row.
Connector gender is female, suited for socket connections.

Product Description

The JST EHR-9 EH Female Connector Housing is a precise and reliable component designed for electronic and electrical applications requiring secure wire to board connections. This connector housing features a 2.5 mm pitch with 9 contact positions arranged in one straight row, enabling compact yet effective linkages. Its nylon material ensures durability and good insulation properties, making it suitable for a wide range of industrial environments.

Designed to be cable mounted, the product works with disconnectable crimp connectors, allowing for easy assembly and maintenance. The slim form factor of the housing supports high-density PCB mounting, which is critical in modern electronic devices where space is premium. The assembly ensures low contact resistance and high reliability, essential for precise data or power transmission.

The housing incorporates polarising guides to prevent mismating, enhancing connection integrity and safety. Its straight orientation allows for straightforward cable routing without complex bends. This connector housing is a part of JST's EH series, known for quality and performance in electronic wire housings.

Applications for this connector housing span multiple industrial sectors including electronics manufacturing, power distribution, communication equipment, and other commercial and industrial uses requiring dependable wire housing solutions. Its robust construction and consistent performance make it ideal for assembly lines and automated manufacturing setups.

Features a slim and compact design enabling high-density PCB connections. Manufactured from durable nylon housing material for reliable insulation. Offers easy and effective crimping for quick assembly. Includes polarising guides to prevent incorrect mating.

Compatible with EH series crimp socket connectors offering low contact resistance. Orientation is straight for direct cable connections. Has 9 contact positions arranged in a single row. Connector gender is female, suited for socket connections.

Length measures 24.5 mm with a width of 3.8 mm. Ideal for electronic, power, and connector applications requiring reliable wire housing.
