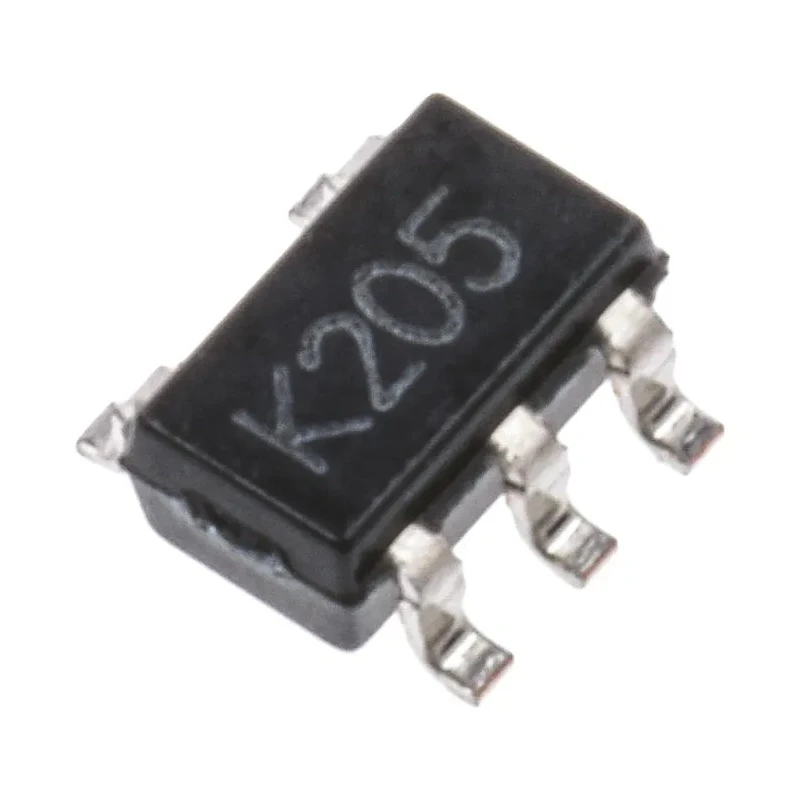

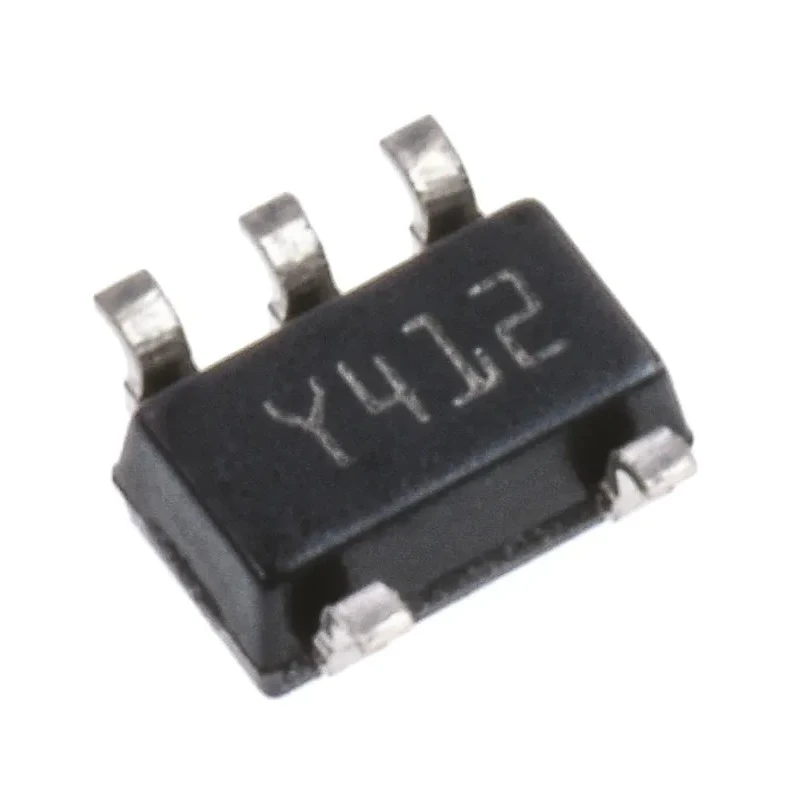

STMicroelectronics Operational Amplifier, Single Channel, Surface Mount, SOT-23 Package, 5-Pin, 100 kHz Bandwidth TS931ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | TS931ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TS931 |
| Output Current | 5mA |
| Maximum Operating Temperature | 105°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Power Supply Voltage | 2.7 V to 10 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 100kHz |
| Input Bias Current | 300 pA |
| Vos - Input Offset Voltage | 15 mV |
| Slew Rate | 0.05V/μs |
| Input Offset Current | 200 pA |
Key Features
- Offers micro-power consumption of 20 μA for energy-efficient applications.
- Operates with power supply voltage range from 2.7 V to 12 V.
- Features rail-to-rail output voltage swing supporting output up to 2.9 Vpp at 3 V supply with 100 kΩ load.
- Equipped with low input bias current of 300 pA and input offset voltage of 15 mV.
- Supports maximum operating temperature of 105°C meeting AEC-Q100 automotive standard.
- Compact SOT-23 package with dimensions approximately 3 mm length, 1.75 mm width, and 1.3 mm height.
- Designed for applications requiring precise analog signal amplification with 5 mA output current capability.
- Compliant with RoHS environmental standards ensuring hazardous substance restrictions.
Product Description
The STMicroelectronics TS931ILT is a single-channel operational amplifier designed for low-power, high-performance analog amplification tasks. It features a bandwith gain product of 100 kHz and supports supply voltages ranging from 2.7 V to a maximum of 12 V, making it suitable for a variety of electronics systems.
Encased in a compact 5-pin SOT-23 surface mount package measuring 3 mm x 1.75 mm x 1.3 mm, this device is ideal for space-constrained circuit board layouts. The TS931ILT delivers micro-power consumption at only 20 μA, which extends battery life in portable devices.
This operational amplifier provides rail-to-rail output voltage swing, capable of reaching 2.9 V peak-to-peak output with a 100 kΩ load at 3 V supply, ensuring efficient signal driving performance. Low input bias current (300 picoamperes) and low input offset voltage (15 millivolts) contribute to high accuracy signal processing.
The device is rated for operation over a wide temperature range from -40°C to 105°C and complies with the AEC-Q100 automotive standard, making it reliable for automotive and industrial applications.
Micro-power consumption enables energy-efficient operation. Wide supply voltage range from 2.7 V to 12 V enhances application flexibility. Compact SOT-23 package suitable for dense PCB layouts. Low offset voltage and input bias current improve signal accuracy.
Rail-to-rail output provides larger dynamic range and output drive capability. AEC-Q100 certification ensures quality and reliability for automotive use. RoHS compliant for environmental and safety considerations. Output current up to 5 mA supports various load conditions.
This operational amplifier is well-suited for industrial controls, instrumentation, automotive sensors, consumer electronics, and other analog signal processing applications where power efficiency and small form factor are critical.
Explore the Electronics & Electricals category at EnvMart for a wide selection of Operational Amplifiers and semiconductor devices from leading manufacturers including STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TS931ILT operational amplifier features a gain bandwidth product of 100 kHz, making it suitable for various analog amplification tasks.
It operates with a power supply voltage range from 2.7 V to 12 V, providing flexibility for different applications.
The TS931ILT can deliver an output current of up to 5 mA, supporting various load conditions in its applications.
This model comes in a compact SOT-23 package with dimensions of approximately 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The input bias current of this operational amplifier is 300 picoamperes, contributing to its high accuracy in signal processing.
The TS931ILT is rated for a maximum operating temperature of 105°C, complying with the AEC-Q100 automotive standard.
Yes, it supports rail-to-rail output voltage swing, capable of reaching 2.9 V peak-to-peak output with a 100 kΩ load at a 3 V supply.
The input offset voltage for this operational amplifier is 15 millivolts, which enhances its accuracy in applications.
The TS931ILT is RoHS compliant, ensuring it meets hazardous substance restrictions for environmental safety.
This operational amplifier is well-suited for industrial controls, instrumentation, automotive sensors, and consumer electronics requiring precise analog signal amplification.
The TS931ILT has a minimum operating temperature of -40°C, making it suitable for a wide range of environments.
This model is a single-channel operational amplifier, designed for specific analog signal amplification tasks.
