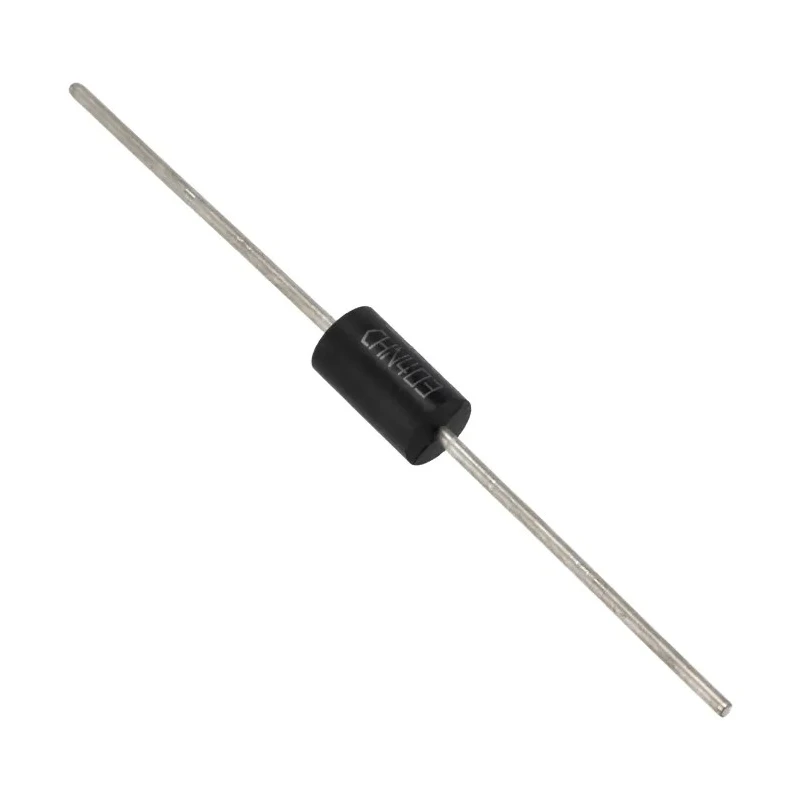

STMicroelectronics 1-Element Bi-Directional Transient Voltage Suppressor Diode 1.5 kW, 2-Pin DO-201 1.5KE180CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE180CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 317V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 171V |
| Maximum Reverse Stand-off Voltage Vwm | 154V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 31.5A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode configuration is single and bi-directional for transient voltage suppression.
- Minimum breakdown voltage is 171 V with maximum reverse stand-off voltage of 154 V.
- It features a peak pulse power dissipation of 1.5 kW and a clamping voltage of 317 V.
- Designed for operation between -65°C to 175°C for high reliability.
- Maximum peak pulse current rating of 31.5 A ensures strong transient protection.
- Package dimensions include length 9.5 mm and diameter 5.3 mm in DO-201 form factor.
- This TVS diode is ideal for protecting sensitive electronics from voltage spikes in industrial and consumer applications.
Product Description
STMicroelectronics 1.5KE180CA is a 1-Element Bi-Directional Transient Voltage Suppressor (TVS) Diode with a 1.5 kW peak pulse power dissipation rating. It is housed in a robust 2-Pin DO-201 through-hole package suitable for versatile PCB mounting in industrial and electronic circuit protection applications.
This TVS diode provides essential transient voltage protection by clamping voltage spikes to safe levels, safeguarding sensitive semiconductor components and preventing damage due to electrostatic discharge or switching transients.
The single-element diode configuration is bi-directional, allowing protection against voltage transients in both directions. The device has a minimum breakdown voltage of 171 V and a maximum reverse stand-off voltage of 154 V, ensuring stable operation within specified voltage ranges. Its clamping voltage is rated at 317 V, with a maximum peak pulse current of 31.5 A, providing reliable surge suppression performance.
Designed for harsh environments, the 1.5KE180CA operates reliably within a temperature range of -65°C to 175°C. The axial leaded DO-201 package measures 9.5 mm in length and 5.3 mm in diameter, facilitating easy integration into through-hole designs.
Applications include industrial machinery, power supplies, automotive electronics, and consumer devices needing protection against transient voltage surges. This component offers dependable surge suppression, extending the lifetime and reliability of electronic systems.
The diode configuration is single and bi-directional for transient voltage suppression. Minimum breakdown voltage is 171 V with maximum reverse stand-off voltage of 154 V. It features a peak pulse power dissipation of 1.5 kW and a clamping voltage of 317 V.
Designed for operation between -65°C to 175°C for high reliability. Maximum peak pulse current rating of 31.5 A ensures strong transient protection. Package dimensions include length 9.5 mm and diameter 5.3 mm in DO-201 form factor.
This TVS diode is ideal for protecting sensitive electronics from voltage spikes in industrial and consumer applications.
This product is an essential component in electronic circuit protection for industrial, manufacturing, automotive, and power supply systems. Explore the full range of TVS Diodes and semiconductor components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the 1.5KE180CA is rated at 1.5 kW.
The minimum breakdown voltage is 171 V.
The maximum reverse stand-off voltage is 154 V.
The clamping voltage of this TVS diode is rated at 317 V.
The maximum peak pulse current rating is 31.5 A.
This model operates reliably within a temperature range of -65°C to 175°C.
The package dimensions are 9.5 mm in length and 5.3 mm in diameter.
It features a single-element, bi-directional diode configuration for transient voltage suppression.
This model uses a through-hole mounting type.
This TVS diode is suitable for protecting sensitive electronics in industrial machinery, power supplies, automotive electronics, and consumer devices.
The maximum reverse leakage current is rated at 1 μA.
The test current is specified at 1 mA.
