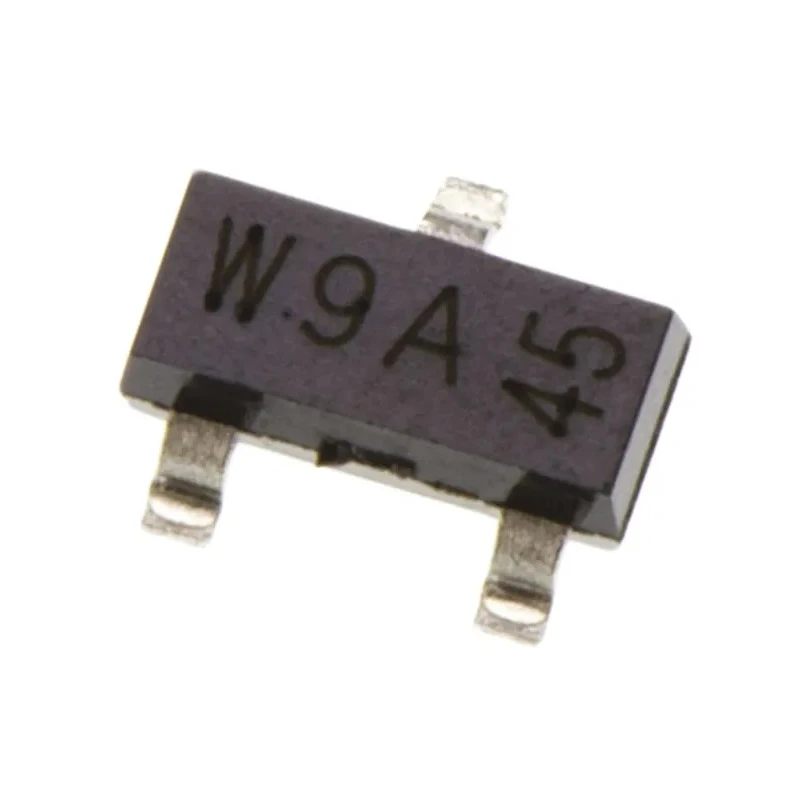

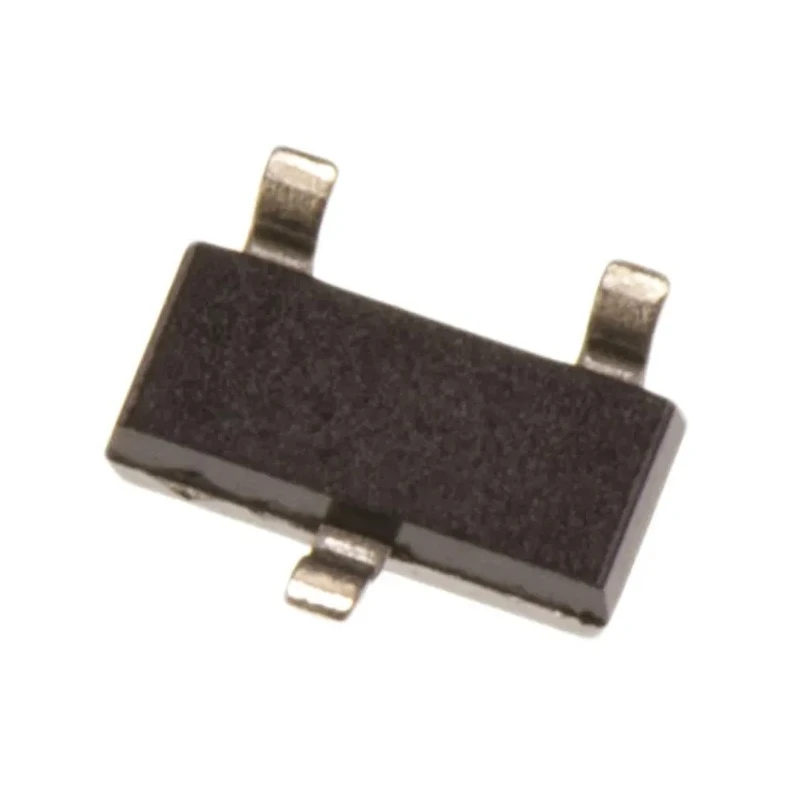

Nexperia 1.5 V Zener Diode Single 250 mW 4% Surface Mount 3-Pin SOT-23 PLVA650A,215

Name: Nexperia 1.5 V Zener Diode Single 250 mW 4% Surface Mount 3-Pin SOT-23 PLVA650A,215
Brand: Nexperia
SKU: 121796
Price: 0.13 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	PLVA650A,215
Mount Type	Surface
Series	PLVA6xxA
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Test Current It	0.25mA
Maximum Reverse Leakage Current	20μA
Nominal Zener Voltage Vz	5V
Zener Type	Avalanche
Maximum Zener Impedance	700Ω
Typical Voltage Temperature Coefficient	0.2mV/°C

Key Features

The diode operates with a zener voltage tolerance of 4% ensuring stable voltage regulation.
It features an avalanche zener type with low noise characteristics suitable for sensitive applications.
The device can handle a maximum power dissipation of 250 mW at test current of 0.25 mA.
It supports operating temperatures between -65°C and 150°C, making it reliable under harsh conditions.
The package height is 1.1 mm with a length of 3 mm suitable for compact circuit integration.
Maximum zener impedance is 700 Ω and maximum reverse leakage current is 20 μA for efficient performance.
Complies with the automotive standard AEC-Q101, assuring quality for automotive electronics.
Mounting type is surface mount, facilitating automated PCB assembly processes.

Product Description

Nexperia PLVA650A,215 is a single Zener diode with a nominal zener voltage of 1.5 V and maximum power dissipation of 250 mW. Packaged in a compact 3-pin SOT-23 surface mount form factor, it is designed for applications requiring stable voltage regulation and low noise.

This diode exhibits a zener voltage tolerance of ±4% and operates efficiently across a temperature range from -65°C to 150°C. The maximum zener impedance of 700 Ω and maximum reverse leakage current of 20 μA indicate low power losses under normal conditions. The diode's test current is set at 0.25 mA, representing typical operation.

Its surface mount package facilitates automated assembly and enhances design flexibility for compact electronic devices. Typical uses include voltage regulation, voltage reference in power supply circuits, and protection circuits in electronic components and systems.

The diode configuration is single element with avalanche zener type for stable voltage performance. The device supports operating temperature extremes from -65°C to 150°C for versatile environmental adaptability. The compact SOT-23 package has a height of 1.1 mm and length of 3 mm suitable for space-constrained PCB layouts.

Low maximum reverse leakage current and zener impedance contribute to efficient and reliable circuit protection. Compliance with the AEC-Q101 automotive standard ensures suitability for stringent quality and reliability demands.

Surface mount design supports high-volume manufacturing processes and automated insertion.

This Zener diode is ideal for industrial, automotive, consumer electronics, and general electronic circuit board applications requiring precise voltage regulation and noise minimization.
