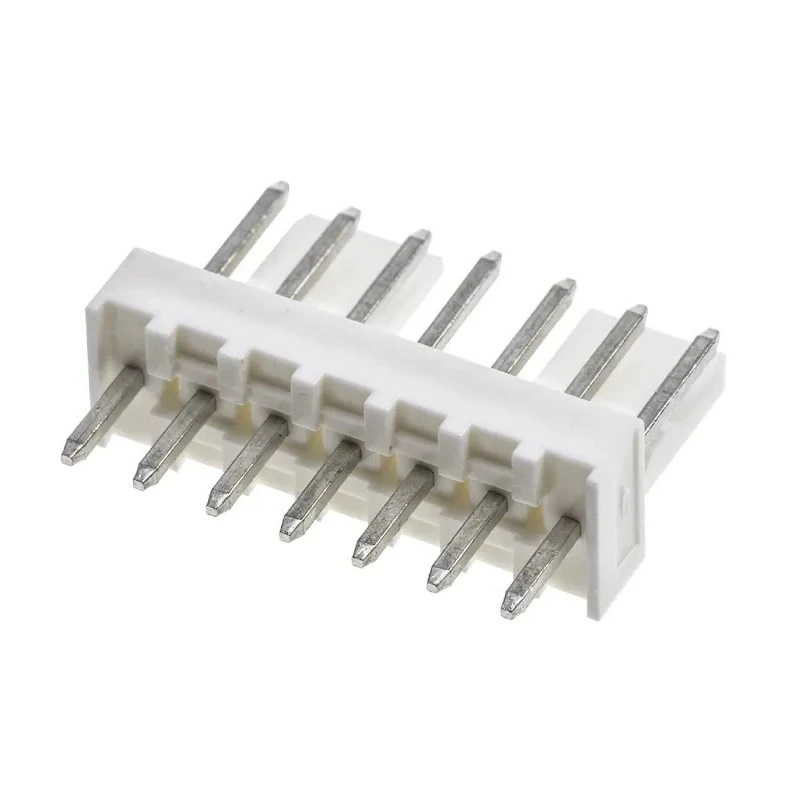

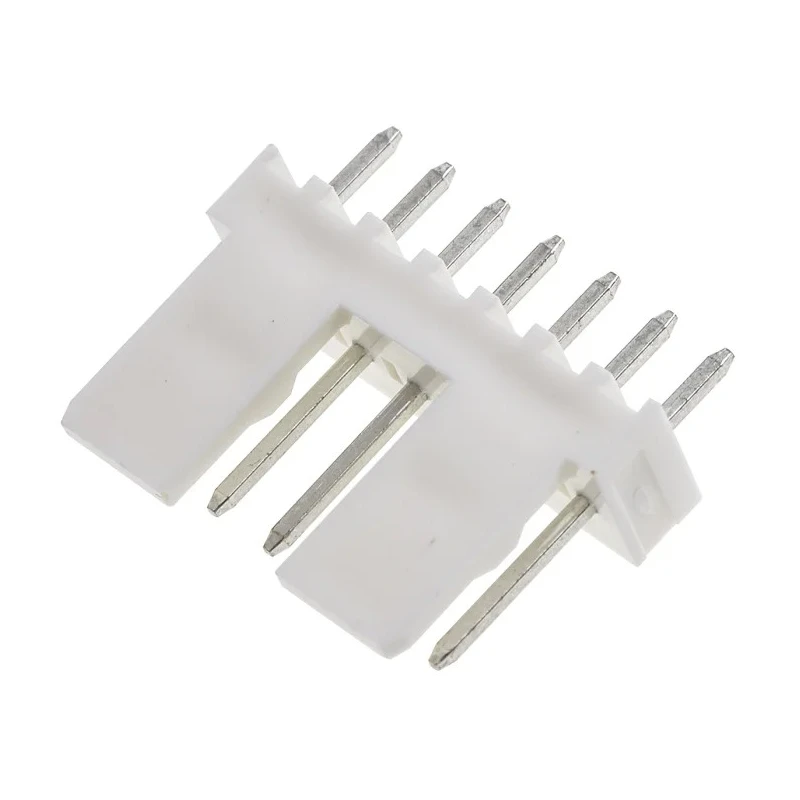

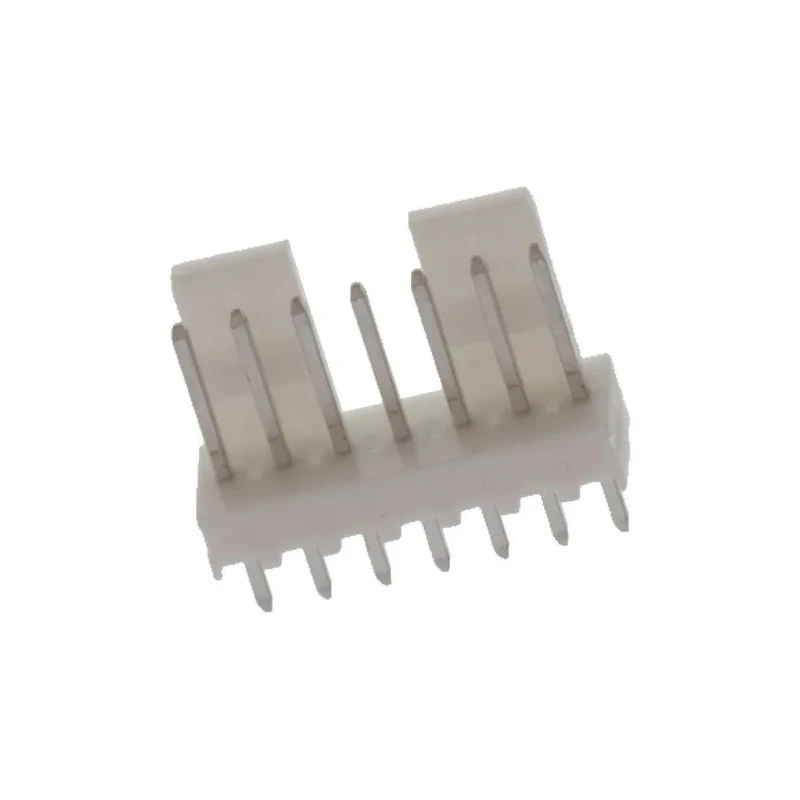

Molex KK 254 Series Straight Through Hole Pin Header 7 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-27-2071
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
| Mating Pin Length | 7.5mm |
Key Features
- Constructed with nylon housing ensuring durability and insulation.
- Brass male contacts plated with tin for excellent conductivity and corrosion resistance.
- Designed for through-hole solder mounting to provide strong mechanical connection.
- Operates safely at voltages up to 250V and currents up to 4A.
- Suitable for temperatures ranging from -40°C to 105°C for challenging environments.
- Lightweight design with 0.78g weight minimizes PCB stress.
- Ideal for automotive, electronics evaluation, and computer equipment applications.
- Unshrouded one-row configuration enables easy manual or automated wiring.
Product Description
Molex 22-27-2071 KK 254 Series Straight Through Hole Pin Header provides precise and reliable electrical connections in PCB applications. Constructed with a durable nylon housing and featuring 7 male brass contacts plated with tin, this connector delivers excellent electrical conductivity and corrosion resistance. Its 2.54 mm pitch and single-row unshrouded design support easy wiring and integration into electronic circuits.
Designed for through-hole mounting, this pin header guarantees strong solder joints and mechanical stability on printed circuit boards. It operates safely at voltages up to 250V and handles current up to 4A, making it suitable for a variety of power and signal interfacing needs.
The product withstands operating temperatures from -40°C to 105°C, making it well suited for demanding environments including automotive electronics and industrial controls. Its lightweight construction of approximately 0.78 grams reduces strain on the PCB while maintaining robustness. Tail pin length is 3.56mm with a mating pin length of 7.5mm, ensuring secure mating with compatible components.
This pin header is ideal for industrial, automotive, computer equipment, and electronics testing applications. The unshrouded design allows easy access for soldering and inspection. While this product does not hold specific UL or CSA approvals, it aligns with industry standards for quality and performance. Each pack includes multiple headers to support batch assembly and prototyping.
Constructed with nylon housing ensuring durability and insulation. Brass male contacts plated with tin for excellent conductivity and corrosion resistance. Designed for through-hole solder mounting to provide strong mechanical connection.
Operates safely at voltages up to 250V and currents up to 4A. Suitable for temperatures ranging from -40°C to 105°C for challenging environments. Lightweight design with 0.78g weight minimizes PCB stress. Dimensions include tail pin length of 3.56mm and mating pin length of 7.5mm.
Ideal for automotive, electronics evaluation, and computer equipment applications. Unshrouded one-row configuration enables easy manual or automated wiring. Meets industry standards without specific approvals and is RoHS compliant.
Explore our wide range of PCB connectors and headers on EnvMart to find the perfect solution for your electronic assembly projects.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely at voltages up to 250V and currents up to 4A.
The contact pitch for this pin header is 2.54 mm.
The tail pin length is 3.56 mm.
It features a nylon housing and brass male contacts plated with tin for excellent conductivity and corrosion resistance.
This pin header is suitable for temperatures ranging from -40°C to 105°C.
This model has 7 male contacts.
It is designed for through-hole solder mounting, providing a strong mechanical connection.
This connector features an unshrouded design, allowing for easy manual or automated wiring.
The weight of this model is approximately 0.78 grams, minimizing PCB stress.
It is ideal for automotive, electronics evaluation, and computer equipment applications.
The mating pin length is 7.5 mm.
While it does not hold specific UL or CSA approvals, it aligns with industry standards for quality and performance and is RoHS compliant.
