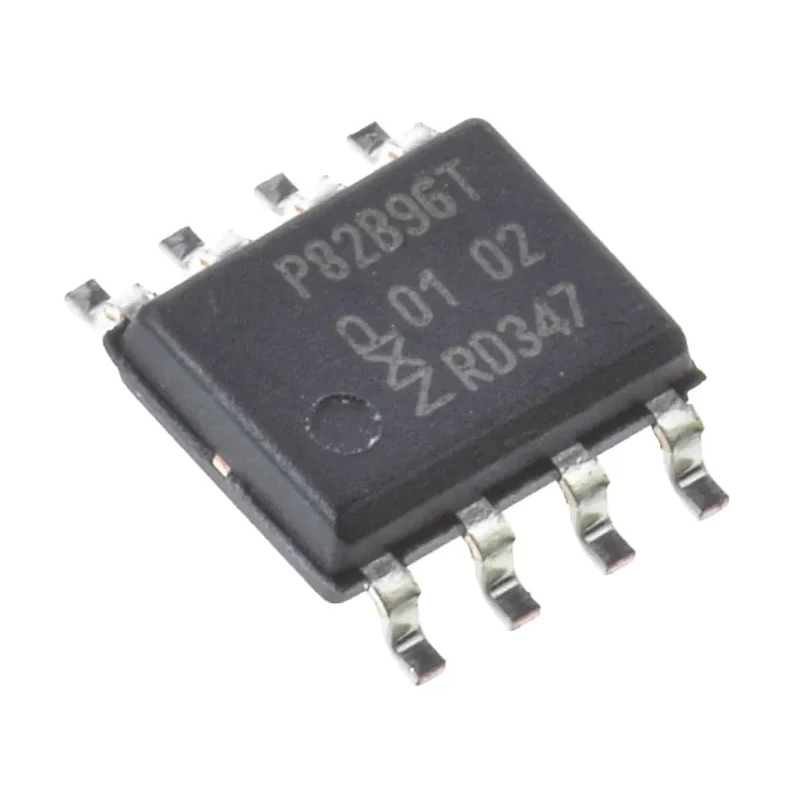

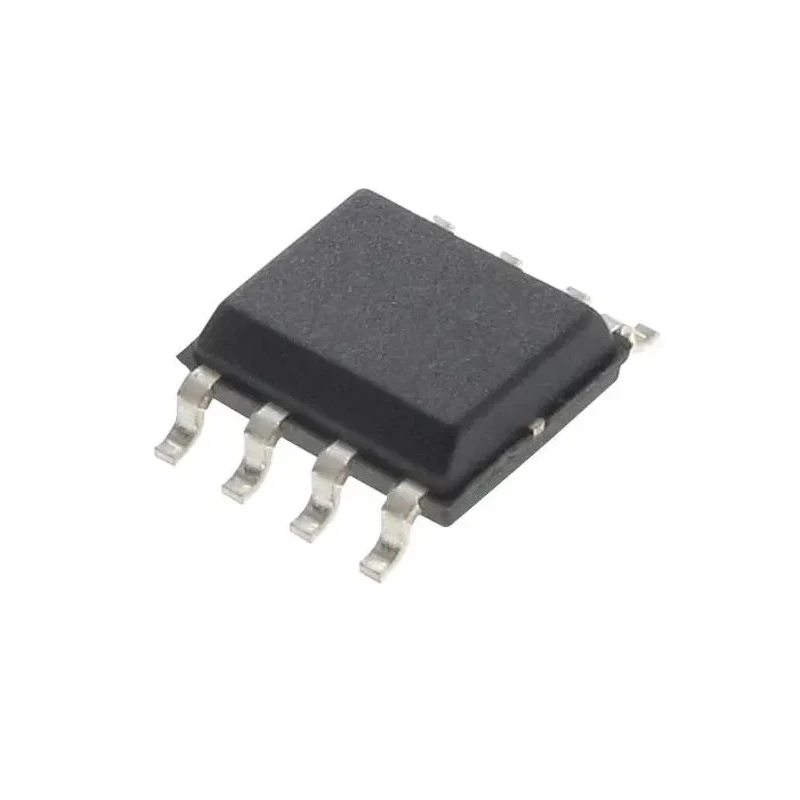

NXP Open Collector Octal Bus Buffer, 8-Pin SOIC P82B96TD,112

Free Delivery in India | Lowest Global Shipping Charges

NXP Open Collector Octal Bus Buffer, 8-Pin SOIC P82B96TD,112



Category Logic ICs Brand NXP Condition New

Specifications

Country of Origin	Thailand
Brand	NXP
Height	1.45mm
Length	5mm
Model	P82B96TD,112
Mount Type	Surface
Output type	Open Collector
Series	P82B96
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Pin Count	8
Maximum Supply Voltage	15V
Logic Family	LVC
Logic Function	Buffer
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	50ns
Supply Current	4mA

Key Features

Operates within supply voltage range of 2 to 15 volts providing flexible power options.
Features 8-pin SOIC surface mount package ideal for compact PCB designs.
Offers a maximum propagation delay time of 50 nanoseconds ensuring fast signal processing.
Supports operating temperatures from -40°C to 85°C for reliable performance in harsh environments.
Utilizes low-voltage CMOS (LVC) logic family for compatibility with modern systems.
Designed without Schmitt trigger inputs to maintain signal integrity in differential input applications.
Consumes 4 mA supply current, enabling low power consumption in circuit designs.
Manufactured in Thailand ensuring consistent quality and compliance.

Product Description

NXP P82B96TD,112 Open Collector Octal Bus Buffer provides reliable signal buffering and bus driving capabilities within electronic and semiconductor applications. This component, supplied in an 8-pin SOIC surface mount package, operates with a minimum supply voltage of 2 volts up to a maximum of 15 volts, making it versatile for a wide range of electronic circuit designs.

Featuring a differential input type and an open collector output, this buffer is optimized for interfacing with other logic devices and enables the control of multiple inputs or outputs efficiently. It operates without Schmitt trigger inputs, suitable for signal conditions that require straightforward buffering without hysteresis.

The device belongs to the LVC logic family, supporting low voltage CMOS technology for better power efficiency. It offers a maximum propagation delay time of 50 nanoseconds at specified load conditions, facilitating timely signal management in digital circuits.

Durability is assured with operating temperature specifications ranging from -40°C to 85°C, allowing deployment in various industrial and commercial environments. It consumes a supply current of only 4 mA, contributing to power-saving system designs.

Manufactured in Thailand, the P82B96TD,112 meets consistent production standards. This component finds applications across electronics manufacturing, industrial automation, instrument control systems, and other semiconductor-based projects.

Operates within supply voltage range of 2 to 15 volts providing flexible power options. Features 8-pin SOIC surface mount package ideal for compact PCB designs. Offers a maximum propagation delay time of 50 nanoseconds ensuring fast signal processing.

Supports operating temperatures from -40°C to 85°C for reliable performance in harsh environments. Utilizes low-voltage CMOS (LVC) logic family for compatibility with modern systems. Designed without Schmitt trigger inputs to maintain signal integrity in differential input applications.

Consumes 4 mA supply current, enabling low power consumption in circuit designs. Manufactured in Thailand ensuring consistent quality and compliance. Browse our extensive selection of semiconductors, Logic ICs, and buffers at EnvMart for advanced and reliable electronic components.
