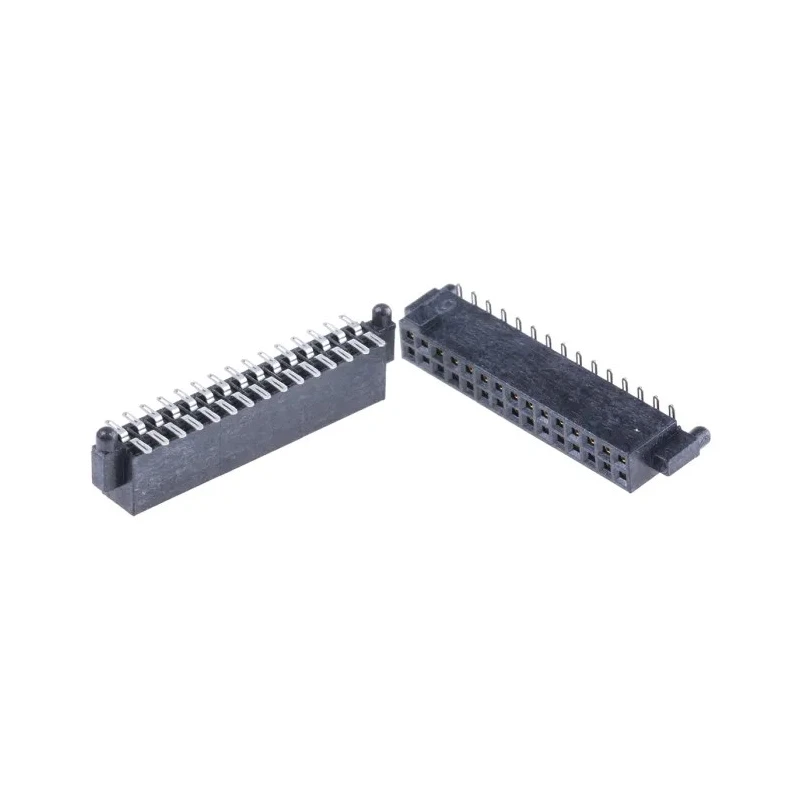

Samtec Straight Surface PCB Socket 30-Contact 2 Row 1.27 mm Pitch Solder 350V SFM-115-02-S-D-A

Samtec SFM-115-02-S-D-A Straight Surface PCB Socket is a high-quality 30-contact, dual-row socket designed for surface mount applications with a 1.27 mm pitch. This board-to-board socket is engineered to deliver dependable and robust electrical connections in industrial and electronic device manufacturing.

The socket housing is made from liquid crystal polymer, offering excellent mechanical strength and resilience under diverse operating conditions. The contacts are fabricated from beryllium copper alloy and are gold plated to ensure superior conductivity and resistance to corrosion.

This socket operates efficiently within a temperature range of -55°C to 125°C and supports currents up to 12A with a voltage rating of 350V, making it suitable for demanding electronic and electrical applications including industrial control systems, telecommunications equipment, and computing hardware.

The straight orientation and surface mount design facilitate easy and reliable installation on printed circuit boards. With a stacking height of 12 mm, the SFM series socket allows flexible multi-board stack-ups while maintaining signal integrity.

Compatible mating components typically include Samtec TFM series headers and FTS series micro terminal strips, supporting diverse system configurations. The gold plating thickness of 0.75 microns combined with a multi-finger Tiger Eye contact design ensures redundant and stable contact points.

Applications span industrial manufacturing, laboratory equipment, telecom infrastructure, and commercial electronics assembly where high reliability and precise board-to-board connectivity are paramount.

This product comes in a new condition and is made in India, meeting quality expectations for rigorous industrial and commercial uses. The socket features a straight orientation suitable for surface mounting. It supports a maximum current of 12A and voltage rating up to 350V.

Constructed with liquid crystal polymer housing for durability and high performance. The contact material is beryllium copper alloy plated with gold for corrosion resistance and reliable conductivity. Operating temperature range spans from -55°C to 125°C for versatile application environments.

Stacking height is 12 mm allowing compact board assembly configurations. Compatible connector systems include cable and board-to-board interfacing options. Gold plating thickness of 0.75 μm ensures endurance and signal integrity.
