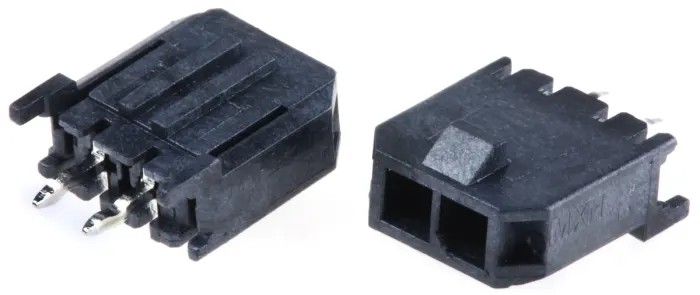

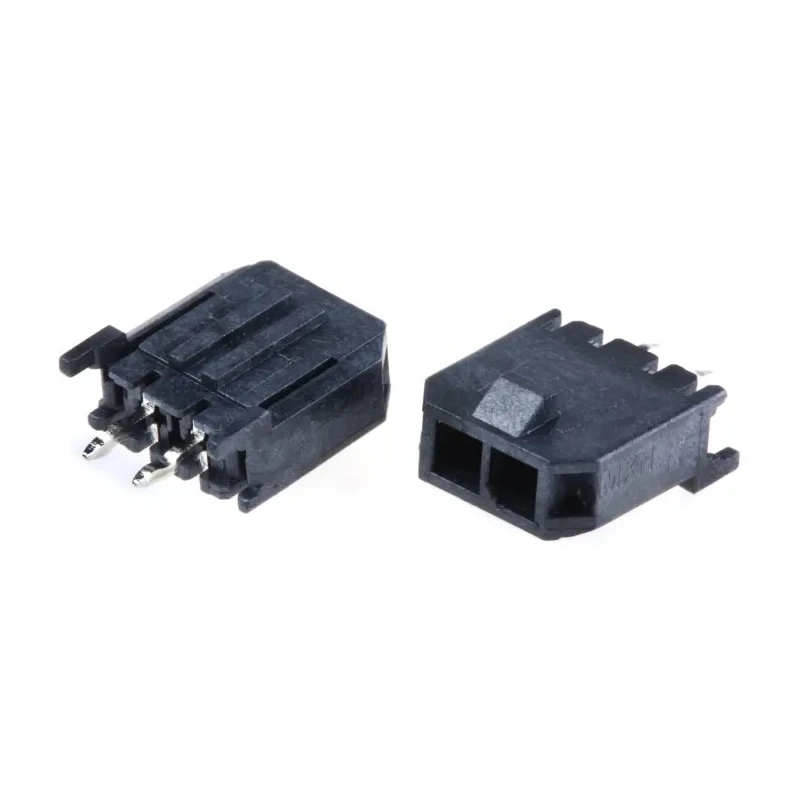

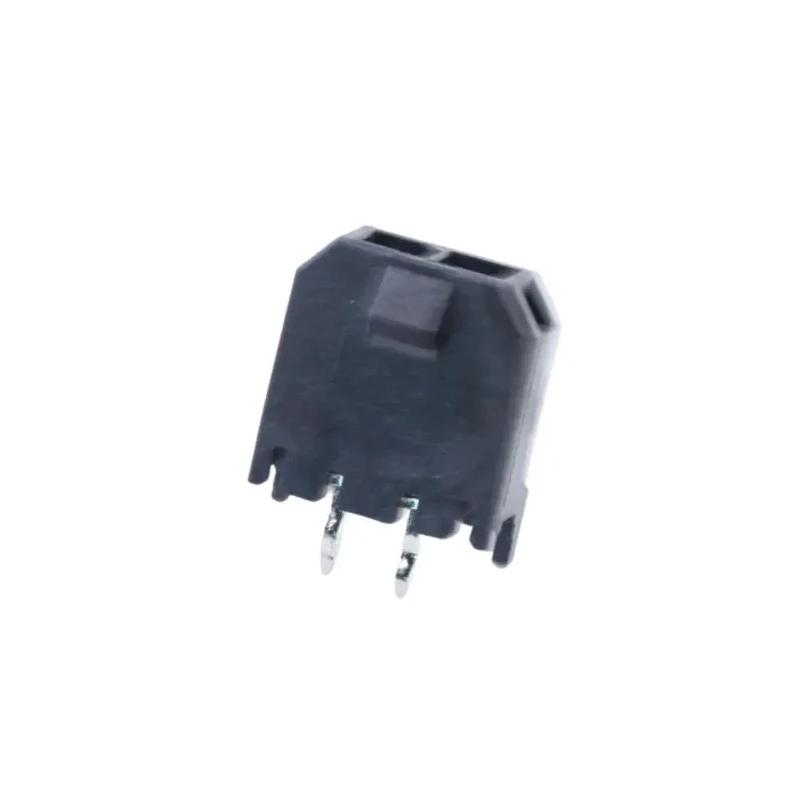

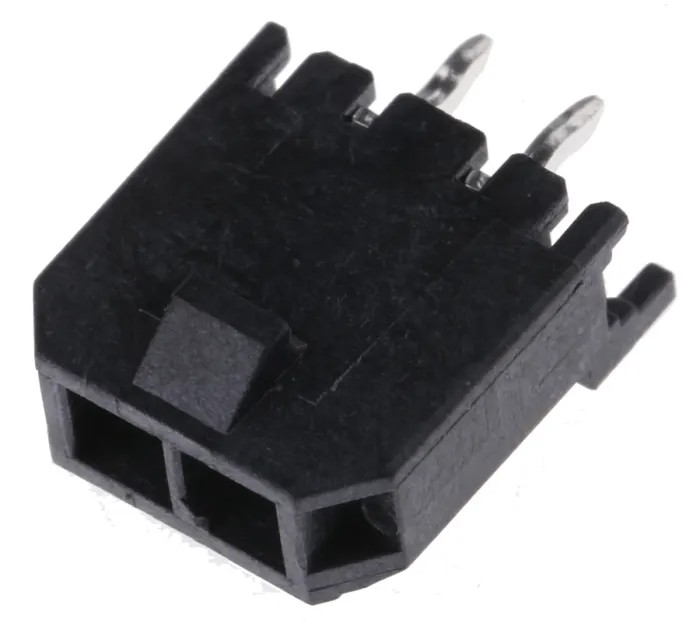

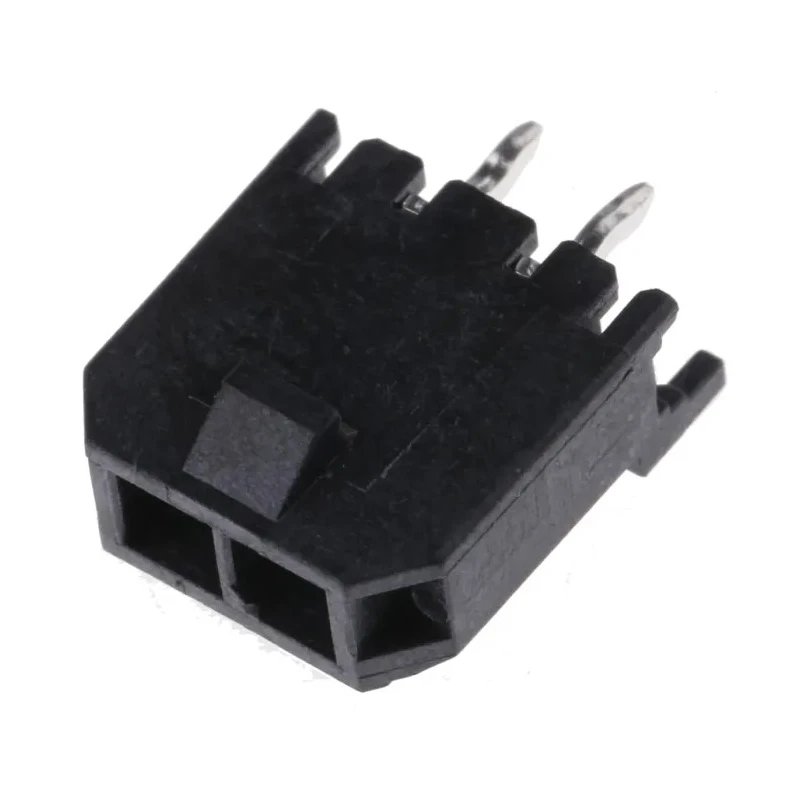

Molex Micro-Fit 3.0 Series Straight Through Hole PCB Header 2 Contacts 3mm Pitch 1 Row Shrouded 43650-0215
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact header designed with a 3 mm pitch for precise PCB alignment.
- Supports a maximum current of 5A per contact for robust power delivery.
- Constructed of thermoplastic housing and brass contacts with tin plating for durability.
- Through-hole mounting ensures a strong mechanical and electrical connection.
- Operating temperature range from -40°C to 105°C suitable for harsh environments.
- Shrouded design with locking ramp prevents accidental disconnections.
- Lightweight at approximately 0.46 grams, minimizing PCB strain.
- Single row configuration with 2 male contacts ideal for compact circuit boards.
Product Description
Molex 43650-0215 Micro-Fit 3.0 Series Straight Through Hole PCB Header is a compact wire-to-board connector designed for robust electrical connections in electronics assemblies. Featuring 2 male contacts in a single row with a 3 mm pitch, this header enables efficient circuit integration with a secure shrouded housing to mitigate accidental disconnections.
The header supports a continuous current rating of 5A per contact at voltages up to 250V, making it well suited for applications requiring reliable power distribution such as PC power supplies, LCD circuit boards, automotive electronics, and household appliances. Its thermoplastic housing combines high durability with resistance to temperatures ranging from -40°C to 105°C, ensuring dependable performance even in harsh environmental conditions.
With through-hole mounting and solder termination, this PCB header maintains a strong mechanical bond to printed circuit boards while facilitating ease of assembly. The brass contacts are plated with tin to provide corrosion resistance and excellent conductivity. The inclusion of a positive latching mechanism via a locking ramp housing design enhances connector stability and longevity.
Compact 3 mm pitch spacing enhances PCB layout flexibility and density. Thermoplastic housing provides high temperature resistance to 105°C. Male brass contacts with tin plating offer reliable electrical performance. Through-hole mounting offers mechanical strength and durability.
Operating temperature suitability from -40°C to 105°C for diverse applications. Shrouded design prevents accidental mating errors and improves connector protection. Suitable for industrial, automotive, laboratory, and consumer electronic uses.
Lightweight design minimizes PCB stress and overall product weight. Secure locking ramp aids in reliable mating retention during vibration or movement.
This Molex Micro-Fit 3.0 Series PCB Header 43650-0215 is ideal for engineers and electronic assemblers seeking a dependable, high-performance connector solution. Its versatile design supports a broad range of uses in industrial, HVAC, manufacturing, and commercial electronic products. Browse EnvMart for more Molex connectors and high-quality electronic components.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5A per contact, making it suitable for robust power delivery applications.
It operates effectively within a temperature range of -40°C to 105°C, suitable for harsh environments.
This unit features through-hole mounting, ensuring a strong mechanical and electrical connection to printed circuit boards.
The housing is made from thermoplastic, while the contacts are brass with tin plating for corrosion resistance and conductivity.
This model has 2 male contacts arranged in a single row, designed for compact circuit boards.
The pitch of the contacts is 3mm, allowing for efficient PCB layout and integration.
It utilizes solder termination, facilitating ease of assembly and a strong electrical connection.
This model is shrouded, which helps prevent accidental disconnections and improves connector protection.
The header is rated for a maximum voltage of 250V, making it suitable for various electrical applications.
It is suitable for applications such as PC power supplies, LCD circuit boards, automotive electronics, and household appliances.
This unit weighs approximately 0.46 grams, which helps minimize strain on the PCB.
The country of origin for this model is India.
