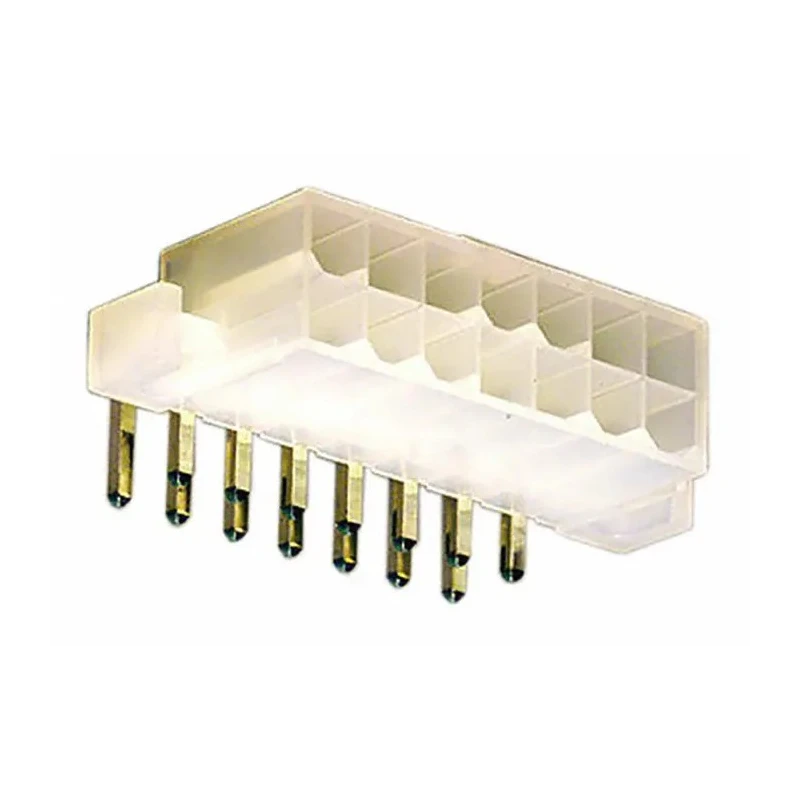

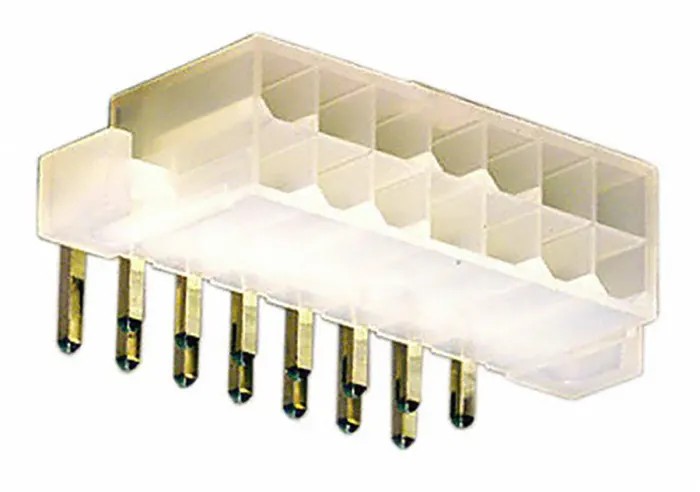

Molex Mini-Fit Jr. Series Right Angle Through Hole PCB Header 14 Contacts 4.2 mm Pitch 2 Row Shrouded 39-29-1148
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 13.0 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features a shrouded, right angle, 2-row design enhancing durability and preventing misalignment.
- Rated for up to 13A current per circuit, suitable for high current applications.
- Constructed with a nylon housing that is scoop-proof to protect pin terminals during mating.
- Includes fully isolated brass terminals with tin plating to ensure corrosion resistance and reliable conductivity.
- Operates reliably from -40°C up to 105°C, accommodating extreme conditions.
- Features polarization, keying, and a positive locking mechanism to ensure secure mating and prevent accidental unmating.
- Offers an audible click on mating to confirm connection integrity.
- Mounting type is through hole with solder termination for secure PCB attachment.
Product Description
Molex 39-29-1148 Mini-Fit Jr. Series Right Angle Through Hole PCB Header is a precision-manufactured connector component designed for wire-to-board power connections requiring high current capacity and reliability. Featuring 14 male contacts arranged in 2 rows with a 4.2 mm pitch, this shrouded header is engineered for industrial, electronics manufacturing, and automation applications.
The connector housing is made from durable nylon material that is scoop-proof to prevent damage during harsh mating angles, and it incorporates polarization and keying to eliminate misalignment. Fully isolated brass contacts are tin plated, providing reliable conductivity and corrosion resistance. The connector supports up to 13A per circuit and is rated for 600V, making it suitable for high current density circuits.
Operating temperature range spans from -40°C to 105°C, maintaining performance in both low and elevated temperature environments. The right angle orientation with through hole mounting and solder termination ensures secure PCB integration. A positive locking mechanism with an audible click signals secure mating preventing disconnections caused by vibration or shock.
This PCB header is ideal for consumer electronic products, office equipment, industrial networks, rack-mount servers, routers, switches, and other power interconnection systems requiring compact connectors with high current handling.
High current capacity up to 13A per circuit for demanding power applications. Scoop-proof nylon housing for protecting pin terminals and durability. Polarized and keyed design to ensure correct mating with receptacles. Positive lock with audible feedback to confirm secure connection.
Wide operating temperature range for versatile industrial use. Through-hole mount and solder termination for reliable PCB attachment. Shrouded 2-row contact configuration for secure connector alignment.
Made in India, this connector meets high quality industry standards, suitable for industrial, manufacturing, and electronic assembly environments. Explore the full Molex Mini-Fit Jr. connector range at EnvMart for compatible mating components and accessories.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum current of 13A per circuit, making it suitable for high current applications.
It operates reliably within a temperature range of -40°C to 105°C, accommodating both low and high temperature environments.
The connector has a voltage rating of 600V, suitable for high current density circuits.
This model features 14 male contacts arranged in 2 rows with a 4.2 mm pitch.
It utilizes solder termination for secure attachment to the PCB.
The housing is made from nylon, and the contacts are fully isolated brass with tin plating for corrosion resistance.
The connector includes polarization and keying features, which help to eliminate misalignment during mating.
This model is designed for through hole mounting, ensuring secure integration with the PCB.
Yes, it features a positive locking mechanism that provides an audible click to confirm secure mating.
It is suitable for applications in consumer electronics, office equipment, industrial networks, and power interconnection systems.
The connector is designed with a right angle orientation, which can be beneficial for space-constrained applications.
This product is made in India, adhering to high quality industry standards.
