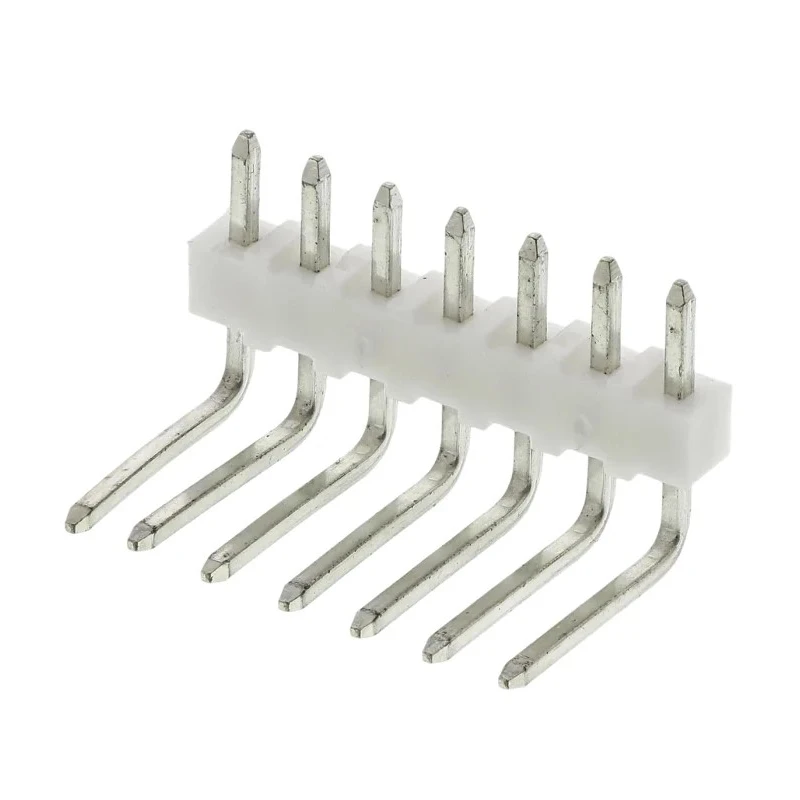

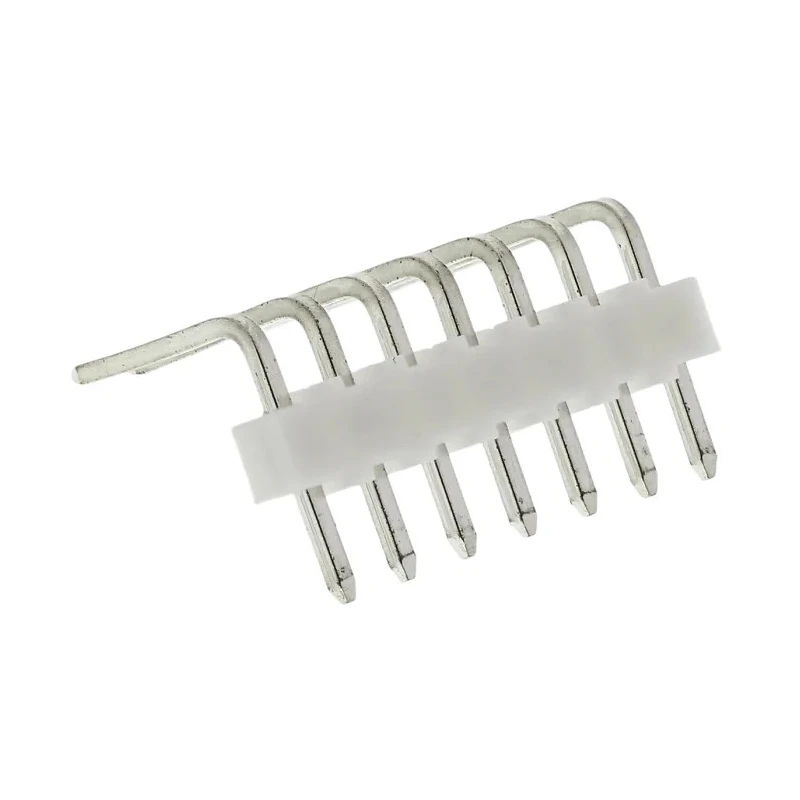

Molex KK 254 Series Right Angle Through Hole Pin Header 7 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-05-2071

The Molex 22-05-2071 KK 254 Series Right Angle Through Hole Pin Header is a high-quality connector designed for industrial and electronic applications requiring robust board-to-board or wire-to-board connections.

This connector features 7 male pins arranged in a single row with a 2.54 mm pitch, a widely used spacing standard ensuring versatility and compatibility with various PCBs.

The contact pins are brass with tin plating, which guarantees excellent conductivity and corrosion resistance, while the housing is made from white nylon material certified to UL 94V-0 standards, providing outstanding flame retardancy and mechanical durability.

With a right-angle orientation, the header is ideal for space-saving PCB layouts where perpendicular connections are needed. It supports a maximum current rating of 4 A and a voltage rating of 250 V, making it suitable for a range of electronic circuits and power levels.

Designed for through-hole mounting with solder termination, the header offers secure mechanical and electrical connections for reliable performance over a temperature range of -40°C to 105°C.

The product's stackable design allows headers to be connected end to end or side to side, enabling flexible circuit board expansion and customization.

Typical applications include industrial equipment, consumer electronics, communication systems, and manufacturing machinery requiring durable and standardized connector interfaces.

Features 7 male pin contacts in a single row. Pitch between pins is 2.54 mm for standard PCB compatibility. Right angle orientation suitable for board-to-board and wire-to-board connections. Constructed with brass contacts plated with tin for durability and conductivity.

The housing is made of UL 94V-0 rated white nylon ensuring flame resistance. Rated for a current of 4 A and voltage up to 250 V. Designed for through-hole mounting with solder termination type. Operates reliably within temperature range from -40°C to 105°C.

Stackable end to end and side to side to enhance design flexibility. Explore the Electronics & Electricals category on EnvMart for more Molex connectors and related PCB components to meet your project requirements.
