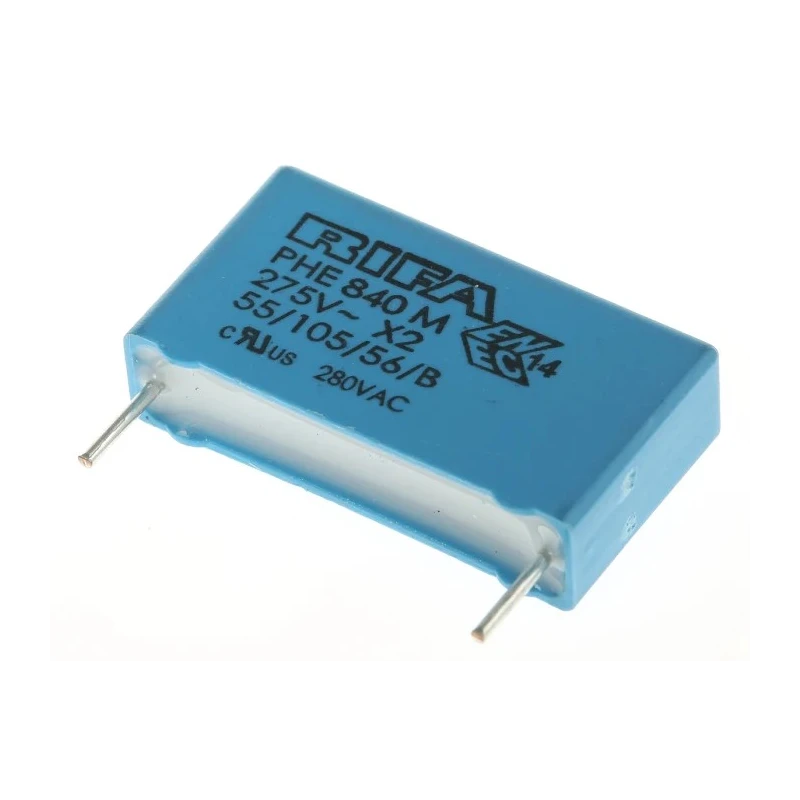

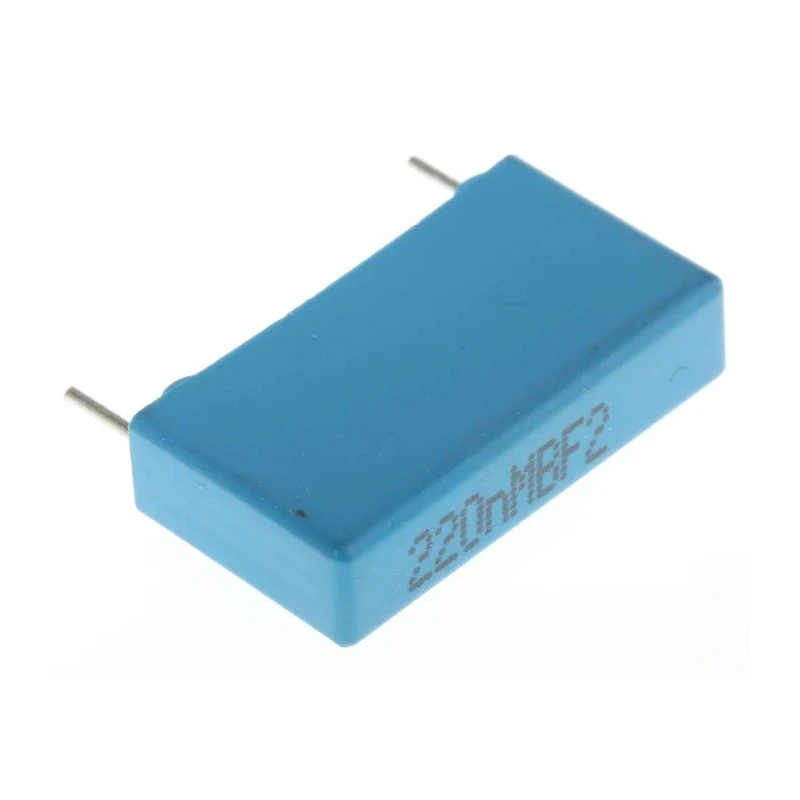

KEMET Film Capacitor Through Hole Mount 220 nF ±20% 760V DC 280V AC PHE840
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 14.5mm |
| Length | 26mm |
| Model | PHE840 |
| Packaging | Tray |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | PHE840 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Wire |
| Dissipation Factor | 0.1% |
| Lead Length | 30mm |
| Pin Count | 2 |
| Rated AC Voltage | 280V ac |
| Rated DC Voltage | 760V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Vishay F1772 Film Capacitor 220 nF 310V ac 310 V dc, Through HoleBrand | Vishay |
| CAP.X2,PHE830MD6220MBrand | NEUTRAL |
| EPCOS Polyester Film Capacitor, 275V ac, ±20%, 220nF, Through HoleBrand | Epcos |
Key Features
- Capacitance of 220 nanofarads with a tolerance of ±20%.
- Rated for 760 volts DC and 280 volts AC operation.
- Through hole mount type with a lead pitch of 22.5 mm.
- Constructed with metallised polypropylene film encapsulated in self-extinguishing material.
- Suitable for use as interference suppressors in X2 and across the line applications.
- Operating temperature range from -55°C to 105°C.
- Dissipation factor of 0.1% ensuring low energy loss.
- Wire terminal type with lead length of 30 mm and lead diameter of 0.8 mm.
Product Description
KEMET PHE840 film capacitor model PHE840MD6220MD13R06L2 is a high-quality through hole mounted capacitor with a capacitance of 220 nF and a tolerance of ±20%. It is rated for 760 V DC and 280 V AC, designed primarily for EMI suppression and interference suppression in electronic circuits.
This capacitor utilizes a metallised polypropylene film encapsulated in a self-extinguishing material conforming to UL94V-0 standards, ensuring safety and reliability in industrial and commercial electronic applications. With lead pitch of 22.5 mm and wire terminals, it is suited for through-hole PCB mounting with ease of assembly.
Operating reliably between a minimum of -55°C and maximum of 105°C, it features a low dissipation factor of 0.1%, indicating efficient energy performance. The physical dimensions are compact with length 26 mm, height 14.5 mm, width 6.5 mm, and lead length 30 mm, supporting dense circuit packing.
This capacitor meets several international standards and approvals such as EN132400, UL1283, UL1414, CSA, and more, emphasizing its quality and global compliance. It is ideal for EMI/RFI interference suppression in industrial electronics, power supplies, HVAC controls, and other electrical equipment requiring noise reduction.
Capacitance of 220 nF with ±20% tolerance. Rated voltage of 760 V DC and 280 V AC. Metallised polypropylene film dielectric for stable performance. Encapsulated in self-extinguishing UL94V-0 material for safety. Through hole mounting with 22.5 mm pitch and wire terminals.
Operating temperature range from -55°C to 105°C. Low dissipation factor of 0.1% for energy efficiency. Dimensions: 26 mm (L) x 6.5 mm (W) x 14.5 mm (H). Lead length 30 mm and diameter 0.8 mm for secure PCB insertion. Complies with EN132400, UL, CSA and other international standards.
Suitable for industrial, commercial, and HVAC applications requiring robust EMI suppression capacitors. Browse more Film Capacitors at EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a capacitance of 220 nF with a tolerance of ±20%.
This model is rated for 760 V DC and 280 V AC operation.
The operating temperature range is from -55°C to 105°C.
It features a low dissipation factor of 0.1%, indicating efficient energy performance.
The dimensions are 26 mm in length, 6.5 mm in width, and 14.5 mm in height.
It is designed for through hole mounting with a lead pitch of 22.5 mm.
The lead length is 30 mm and the lead diameter is 0.8 mm.
It is constructed with metallised polypropylene film encapsulated in a self-extinguishing material conforming to UL94V-0 standards.
It is suitable for EMI/RFI interference suppression in industrial electronics, power supplies, and HVAC controls.
It complies with several international standards including EN132400, UL1283, and CSA.
It features wire terminals for secure PCB insertion.
It is packaged in a tray for convenience during handling and assembly.
