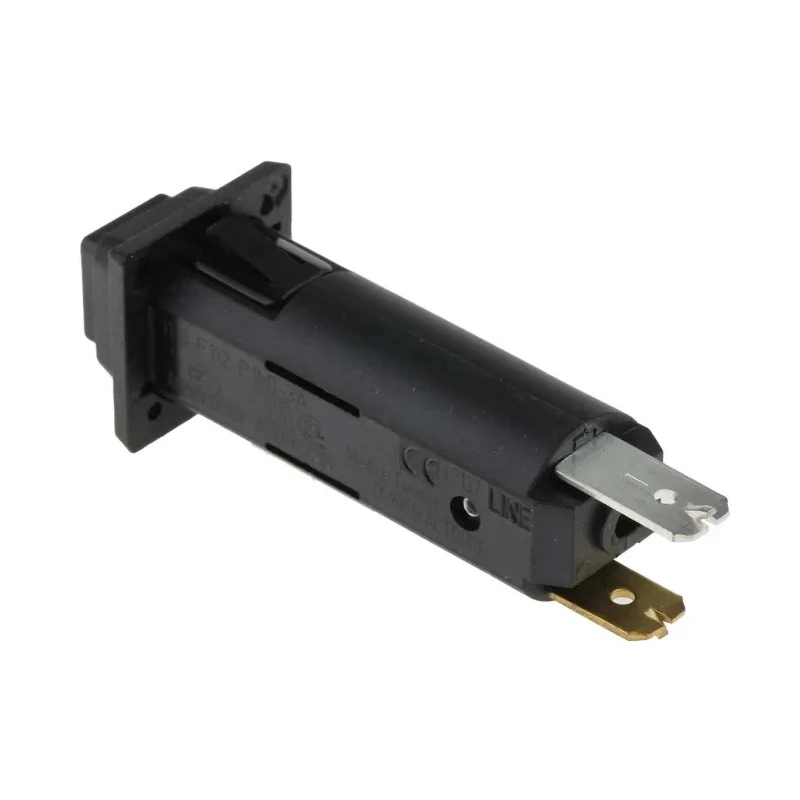

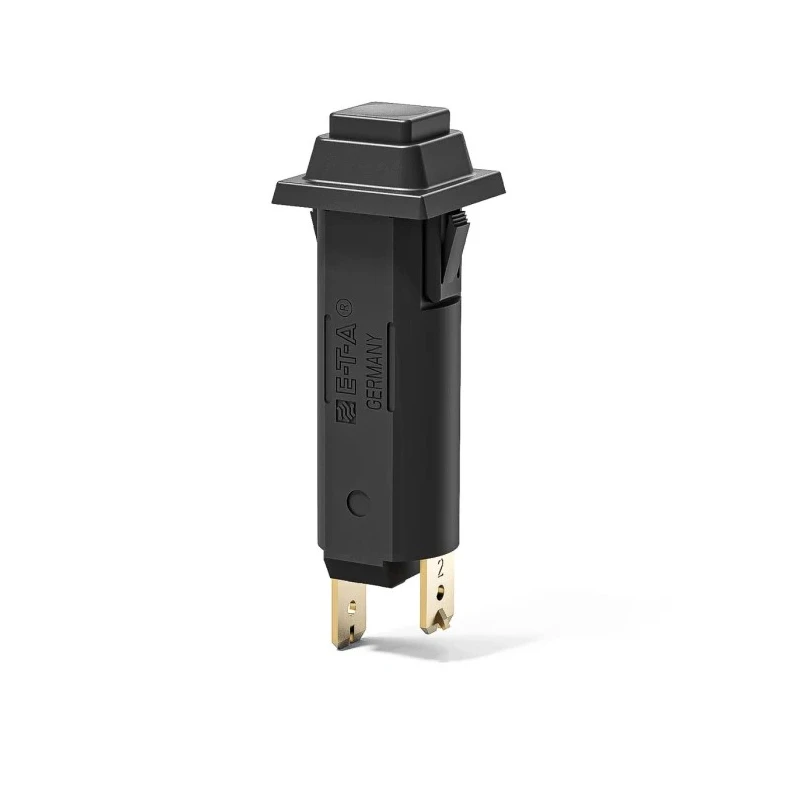

ETA Thermal Circuit Breaker 3A Current Rating 1-Pole Panel Mount 1110-F112-P1M1-3A



Category Circuit Breaker Brand ETA Condition New

Specifications

Country of Origin	India
Brand	ETA
Height	50.3mm
Model	1110-F112-P1M1-3A
Width	19mm
Mount Type	Panel Mount
Current Rating	3A
Series	1110
Terminal type	Blade
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	RoHS, CE
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
Tripping Characteristics	Type R
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Break Time	Medium
CBC,thermal,panel mount,indicating,3ABrand	TE Connectivity
ETA 1110 Thermal Circuit Breaker -, 2A Current Rating 1-Pole, Panel MountBrand	ETA

Key Features

Features a panel mount design with blade terminals for easy installation.
Equipped with a thermal tripping mechanism and Type R tripping characteristics.
Rated for 250V AC and 50V DC operation suitable for motors, transformers, and power supplies.
Includes a button reset actuator and visual trip indication for operational convenience.
Standard front panel snap-in mount with a width of 19mm and height of 50.3mm.
Boasts breaking capacity of 25A and medium break time response.
Complies with RoHS and CE standards ensuring safety and environmental compliance.
Designed predominantly for industrial electrical protection applications.

Product Description

ETA 1110-F112-P1M1-3A Thermal Circuit Breaker is a reliable 3 ampere, 1-pole protective device for panel mount installations, featuring a thermal tripping mechanism that ensures effective overload protection.

The compact breaker has a width of 19mm and height of 50.3mm, fitting standard fuse holder cutout dimensions with front panel snap-in mounting for straightforward assembly.

This circuit breaker is rated at 250V AC and 50V DC, suitable for controlling electrical circuits in motors, transformers, and power supplies, classified under IEC S/TO for enhanced safety and durability.

The blade terminal type allows secure connection and the button reset actuator provides easy reset after tripping. The breaker includes a visual indication of the tripped/off position, enabling quick diagnostics.

With a breaking capacity of 25A and medium break time, it delivers dependable protection against faults, featuring a tease free/trip free mechanism with typical response time between 20 to 30 seconds at twice its nominal current rating.

Certified to RoHS and CE standards and supported by UL, CSA, and VDE approvals, this thermal circuit breaker meets stringent industrial requirements. Panel mount design with blade terminals for simple installation. Thermal tripping mechanism with Type R characteristics for precise protection.

Rated AC voltage of 250V and DC voltage of 50V for versatile applications. Button reset actuator and visual tripped position indicator enhance usability. Compact dimensions: 19mm width and 50.3mm height for panel integration.

Breaking capacity of 25A with medium break time response. Compliant with RoHS, CE, UL, CSA, and VDE standards.

This thermal circuit breaker is ideal for industrial electrical circuits requiring reliable overload and short circuit protection, commonly used in manufacturing, automation, and power distribution systems.
