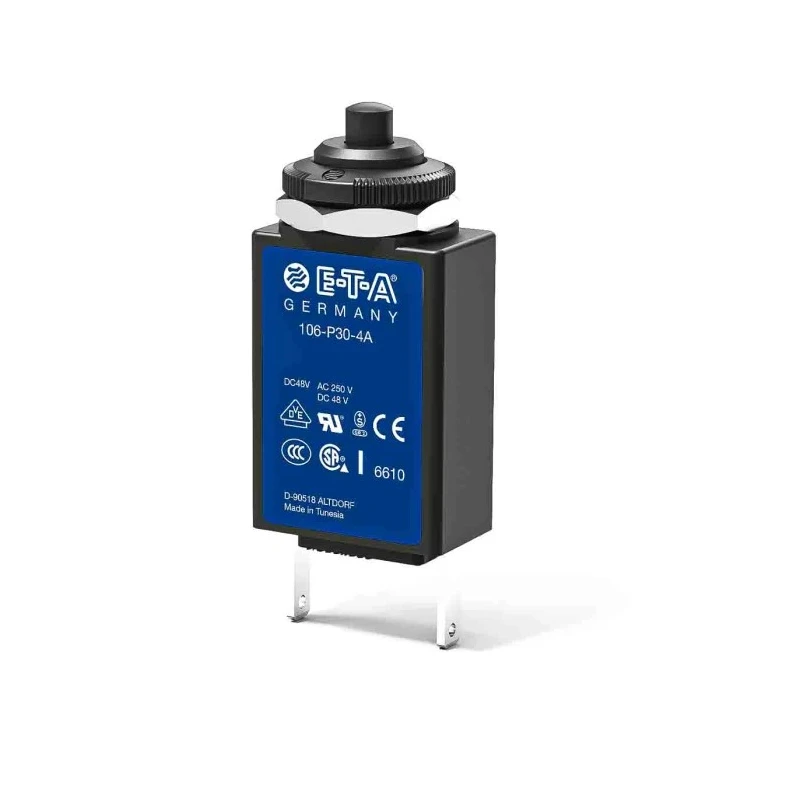

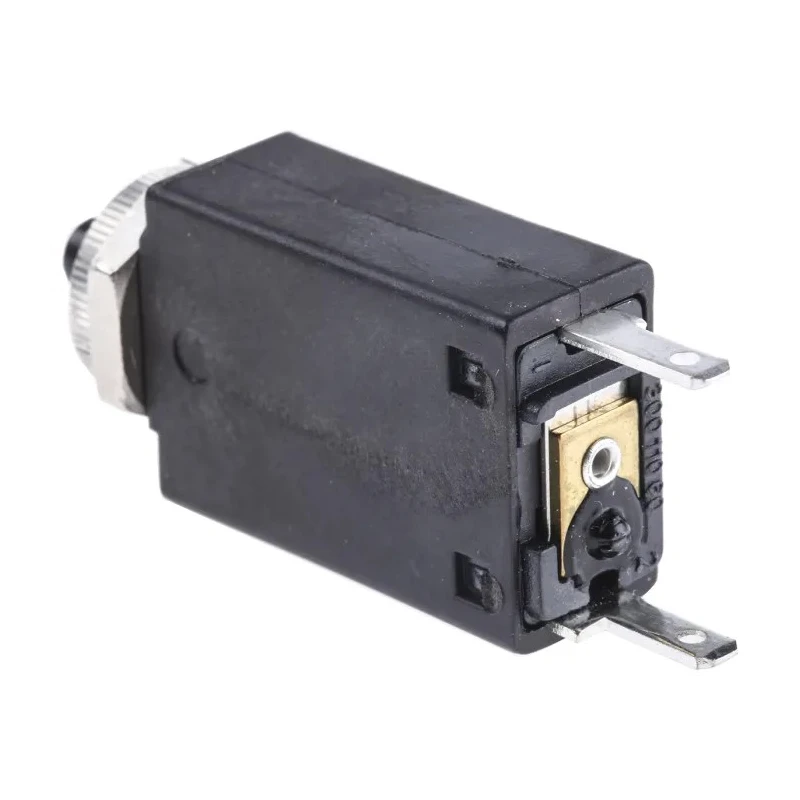

ETA 106-P30 Thermal Circuit Breaker 500mA Current Rating 1-Pole Panel Mount 106-P30-000040-0.5A

ETA 106-P30-000040-0.5A Thermal Circuit Breaker is a single pole, panel mount device designed for precision protection of electrical circuits with a current rating of 500mA. It features a thermal tripping mechanism which provides a slow response time of approximately 30 seconds at twice the nominal current, ideal for reactive or inductive loads such as motors, transformers, and power supplies.

This thermal breaker has a compact width of 11mm and a height of 64mm, making it suitable for tight panel mounting spaces. The device includes a user-friendly button reset actuator and blade terminal type for easy connectivity. The mounting hole size measures 9.6 by 8.9 mm, ensuring secure installation.

Rated for 250 volts AC and 48 volts DC operation, this circuit breaker offers a breaking capacity of 200 amperes, safeguarding electrical systems against short circuits and overloads. The 106-P30 series maintains a typical lifespan of 5000 operations for currents between 0.5A to 3A, and 1000 operations for higher currents at twice the rated load.

Designed with double insulation and a trip-free mechanism, this breaker complies with multiple international standards including UL, LROS, DEMKO, VDE, ABS, BV, and CSA approvals, ensuring reliability and safety in industrial and commercial installations.

Its robust build is well-suited for industrial, automation, electrical panel assemblies, and manufacturing applications where consistent circuit protection is critical. The device supports a PCB single-hole mounting configuration within electrical control systems.

Compact design with 11mm width and 64mm height for panel mount. Thermal tripping mechanism with slow response time for inductive loads. Button reset actuator and blade terminal type for ease of use. Rated 250V AC, 48V DC voltages with 200A breaking capacity.

Compliance with UL, LROS, DEMKO, VDE, ABS, BV, and CSA standards. Long operational life with up to 5000 operations at nominal current. Suitable for protection of motors, transformers, and power supplies. Trip free and double insulated for enhanced safety.

Panel mount type with mounting hole size of 9.6 x 8.9 mm. Industrial and electrical automation application compatibility. Explore more reliable circuit protection devices in the Thermal Circuit Breaker category available at EnvMart for industrial and commercial electrical safety solutions.
