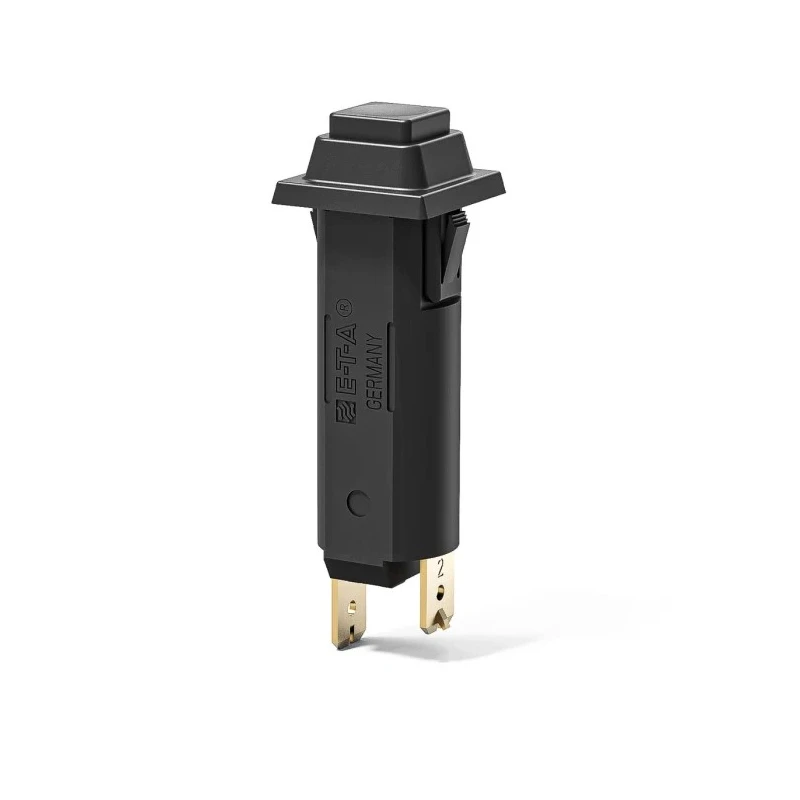

ETA Thermal Circuit Breaker 500mA Current Rating 1-Pole Panel Mount 1110-F112-P1M1-0.5A

ETA 1110-F112-P1M1-0.5A Thermal Circuit Breaker is a panel mount, 1-pole device designed with a thermal tripping mechanism, rated at 500mA current. It provides robust protection for electrical circuits commonly used in industrial, commercial, and manufacturing environments.

This circuit breaker is tailored for applications involving motors, transformers, and power supplies, with a standard front panel snap-in mounting fitting standard fuse holder cut-out dimensions. Its compact form factor of 19mm width and 50.3mm height allows easy integration into control panels.

The breaker integrates blade terminals sized 6.3-0.8mm ensuring secure and reliable electrical connections. The trip-free mechanism and visual indication feature improve safety by ensuring the breaker trips reliably under overload conditions, and offers clear visual feedback when tripped.

With a breaking capacity of 25A and rated AC voltage of 250V and DC voltage of 50V, it is suitable for a broad range of medium power applications. The medium break time characteristic provides a typical response of 20 to 30 seconds at twice the nominal current, protecting equipment from prolonged overload.

Designed to meet CE and RoHS standards, this breaker supports global compliance for electrical safety and environmental regulations. Its button reset actuator enables easy manual reset without panel removal, facilitating maintenance and reducing downtime.

The device’s expected life spans approximately 300 operations at twice the nominal current, ensuring durability and reliability in industrial use.

ETA provides extensive technical documentation and compliance certificates supporting this product, making it well suited for electrical, automation, and manufacturing system integrators.

Set your industrial or manufacturing control panels up with the ETA 1110 Thermal Circuit Breaker for dependable, thermal circuit protection. Features a thermal tripping mechanism with Type R characteristics for stable performance.

Includes a resettable button actuator for easy circuit restoration after trip. Panel mount with 6.3-0.8mm blade terminals ensures secure electrical connections. Compact design with 19mm width and 50.3mm height fits standard panel cut-outs.

Offers a breaking capacity of 25A and medium break time for effective circuit protection. Rated for 250V AC and 50V DC applications suitable for motors, transformers, and power supplies. Designed to comply with CE and RoHS standards ensuring quality and safety.

Equipped with a visual tripped/off indication and trip-free mechanism for clear fault detection. Has a typical response time of 20 to 30 seconds at twice nominal current for reliable operation. Durable construction rated for approximately 300 operations at twice nominal current rating.
