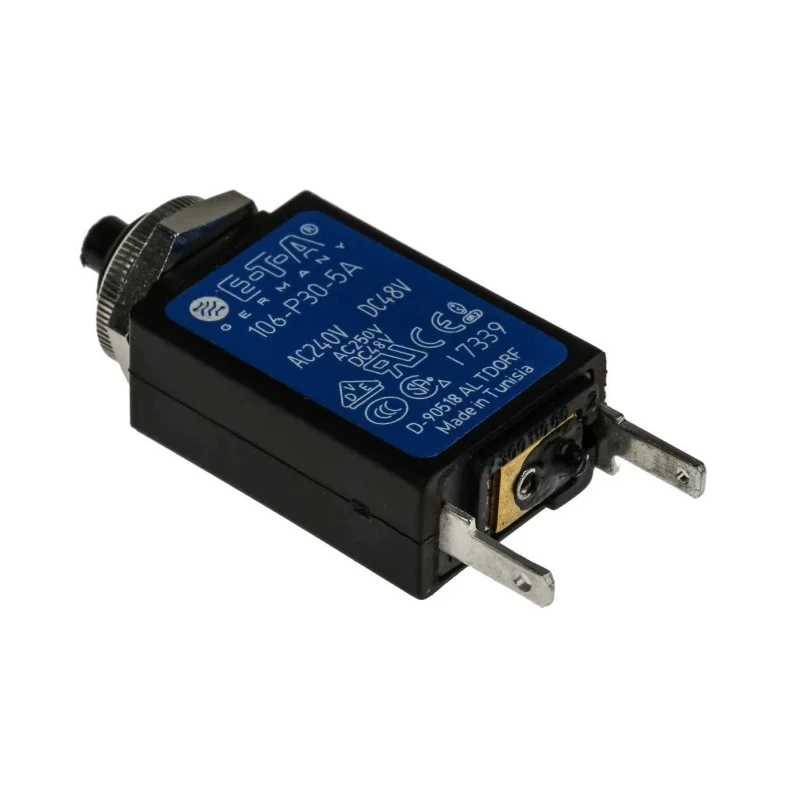

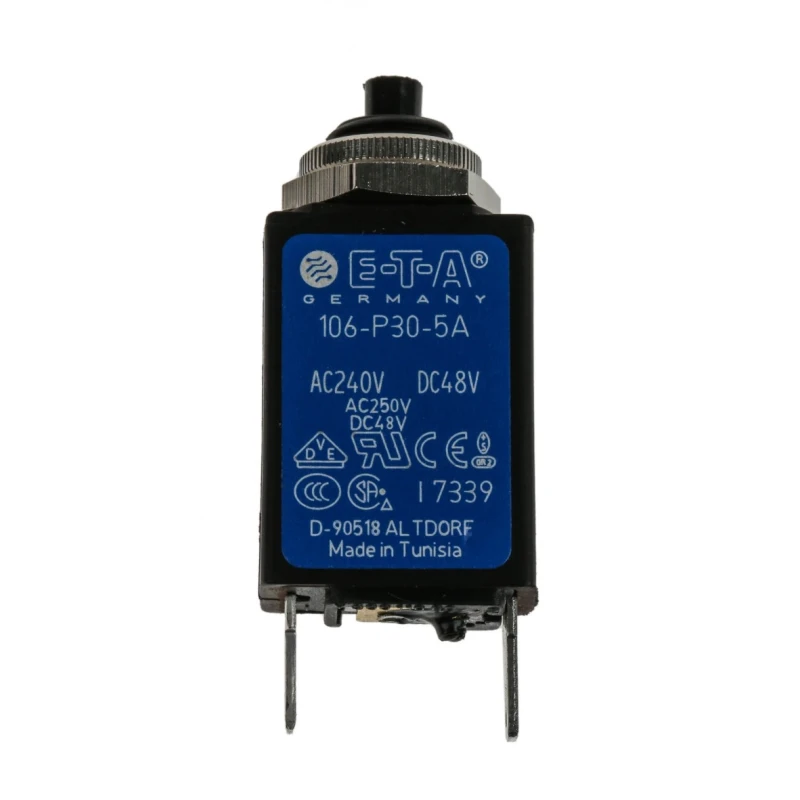

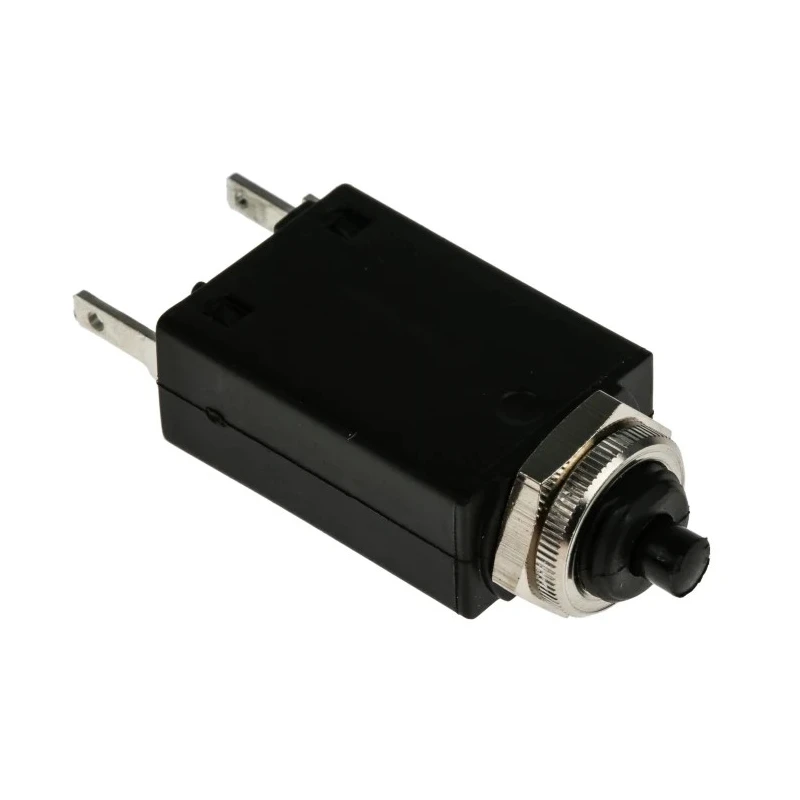

ETA 106-P30 Thermal Circuit Breaker 5A Current Rating 1-Pole Panel Mount 106-P30-000040-5A
Specifications
| Country of Origin | Tunisia |
|---|---|
| Range | 106-P30 |
| Brand | ETA |
| Height | 64mm |
| Model | 106-P30-000040-5A |
| Width | 11mm |
| Mount Type | Panel Mount |
| Current Rating | 5A |
| Series | 106-P30 |
| Terminal type | Blade |
| Breaking Capacity | 200A |
| Number of Poles | 1 |
| Standards/Approvals | LROS, BV, DEMKO, ABS, UL, CSA, VDE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 48V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Button |
| Mount Hole Size | 9.6 x 8.9 mm |
| ETA 1110 Thermal Circuit Breaker -, 5A Current Rating 1-Pole, Panel MountBrand | ETA |
Key Features
- Sub-miniature PCB mount with single hole mounting for compact installation.
- Double insulated and trip free mechanism ensuring safety during overload.
- Slow response time of approximately 30 seconds at twice nominal current rating, ideal for inductive and reactive loads.
- Typical operational life of 5000 cycles for 0.5 to 3A range and 1000 cycles for 4 to 5A at twice rated current.
- Approved under multiple standards including UL, CSA, VDE, SEV, and NEMKO.
- Rated for 250V AC and 48V DC with breaking capacity of 200A.
- Mounts securely via panel mount with blade type terminals and button reset actuator.
- Suitable for motor, transformer, and power supply protection applications in industrial and electrical systems.
Product Description
ETA 106-P30-000040-5A thermal circuit breaker is a panel mount device designed for electrical circuit protection, featuring a 5A current rating and a single pole configuration. This sub-miniature breaker mounts on PCBs with a single hole, combining compact form factor with robust functionality.
It is double insulated and incorporates a trip free mechanism, ensuring reliable operation under fault conditions without manual reset requirement. The slow tripping characteristic, approximately 30 seconds at twice the rated current, is optimal for protecting inductive and reactive loads, such as motors and transformers.
The device has a typical operational life of 5000 operations for currents between 0.5 to 3A, and 1000 operations for 4 to 5A at twice the nominal current rating. It complies with several international safety certifications including UL, CSA, VDE, SEV, and NEMKO, guaranteeing adherence to rigorous performance standards.
Rated for 250V AC and 48V DC with a breaking capacity of 200A, the breaker features blade terminals for reliable electrical connections and a button reset actuator for ease of use. Mounting dimensions are 11mm wide by 64mm high, with mounting hole size of 9.6 x 8.9 mm, facilitating easy panel integration.
Sub-miniature design for PCB single hole mounting. Double insulated and equipped with trip free mechanism. Slow response suitable for inductive/reactive loads. Operational life up to 5000 cycles at rated conditions. Conforms to UL, CSA, VDE, SEV, and NEMKO standards.
Rated 250V AC, 48V DC, and 200A breaking capacity. Blade terminal type and button reset actuator. Compact panel mount form factor with precise mounting dimensions.
This thermal circuit breaker is ideal for industrial, manufacturing, and electrical distribution applications requiring reliable circuit protection with internationally recognized compliance. Explore more products in the Thermal Circuit Breaker category at EnvMart to meet diverse circuit safety needs.
