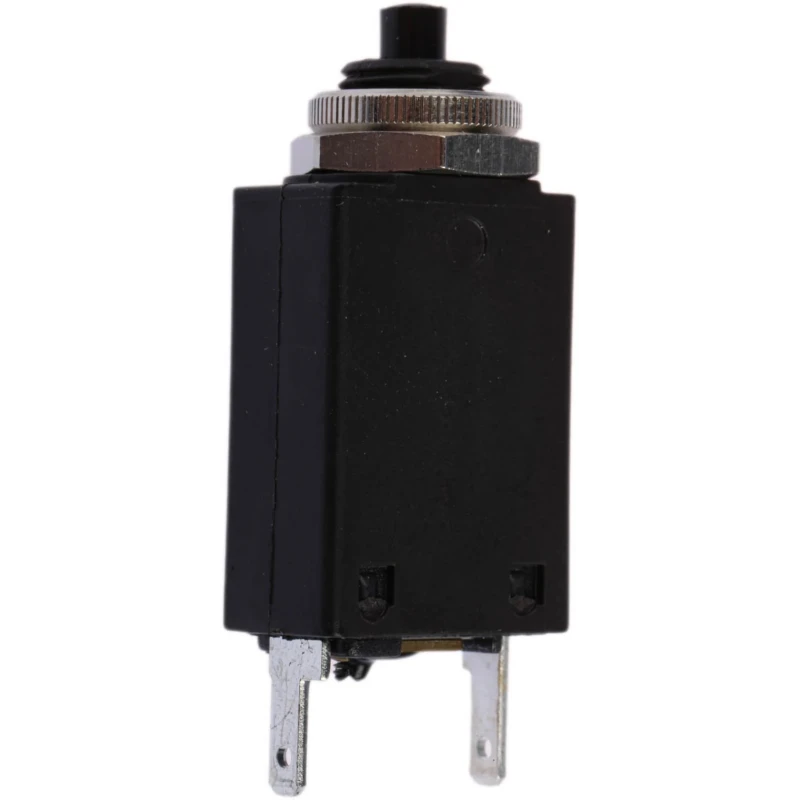

ETA 106-P30 Thermal Circuit Breaker Panel Mount 1A Current Rating 1-Pole 250V AC 48V DC 200A Breaking 106-P30-000040-1A

ETA 106-P30-000040-1A Thermal Circuit Breaker is a high-quality panel mount breaker designed for industrial, electrical, automation, and power supply control applications. It features a robust thermal tripping mechanism with a button reset actuator, ensuring reliable protection against overcurrent conditions.

This thermal circuit breaker supports a 1A current rating and 1-pole configuration, making it suitable for use in motors, transformers, and other inductive or reactive loads. The breaker has a rated AC voltage of 250V and a rated DC voltage of 48V, providing flexibility in various electrical circuits.

Compact in size with an 11mm width and 64mm height, this device facilitates easy panel mounting with a 9.6 x 8.9 mm hole size. It employs a blade terminal type that offers secure and straightforward wiring connections. The breaker’s breaking capacity is rated at 200A, allowing it to handle short circuits and fault currents safely.

The 106-P30 series thermal breakers utilize a trip free mechanism and have a slow response time of approximately 30 seconds at twice the nominal current rating, ideal for inductive/reactive loads. The expected operational life is around 5000 operations for currents between 0.5 to 3A and 1000 operations for higher currents up to 5A at double the nominal rating.

This model complies with rigorous international approvals and standards such as UL, CSA, VDE, DEMKO, ABS, BV, LROS, SEV, and NEMKO, certifying it for global industrial use. Its double insulation and sub-miniature design enhance safety and compactness.

Panel mount thermal circuit breaker suitable for motors, transformers, and power supplies. Operates at rated AC voltage of 250V and rated DC voltage of 48V. Features a thermal tripping mechanism with a button-type reset actuator.

Compact width of 11mm and height of 64mm for space-efficient installation. Breaking capacity of 200A ensures safe interruption of fault currents. Includes slow response time ideal for inductive and reactive loads. Single-hole PCB mounting with a blade terminal type for secure connections.

Complies with international standards including DEMKO, ABS, BV, VDE, CSA, LROS, and UL approvals. Trip free mechanism improves safety by preventing manual override of the trip function.

This product is ideal for use in industrial automation, electrical panels, manufacturing equipment, HVAC systems, and laboratory devices. Enhance system protection and ensure operational reliability with this Thermal Circuit Breaker from ETA. Explore the Electronics & Electricals category for related circuit protection products at EnvMart.
