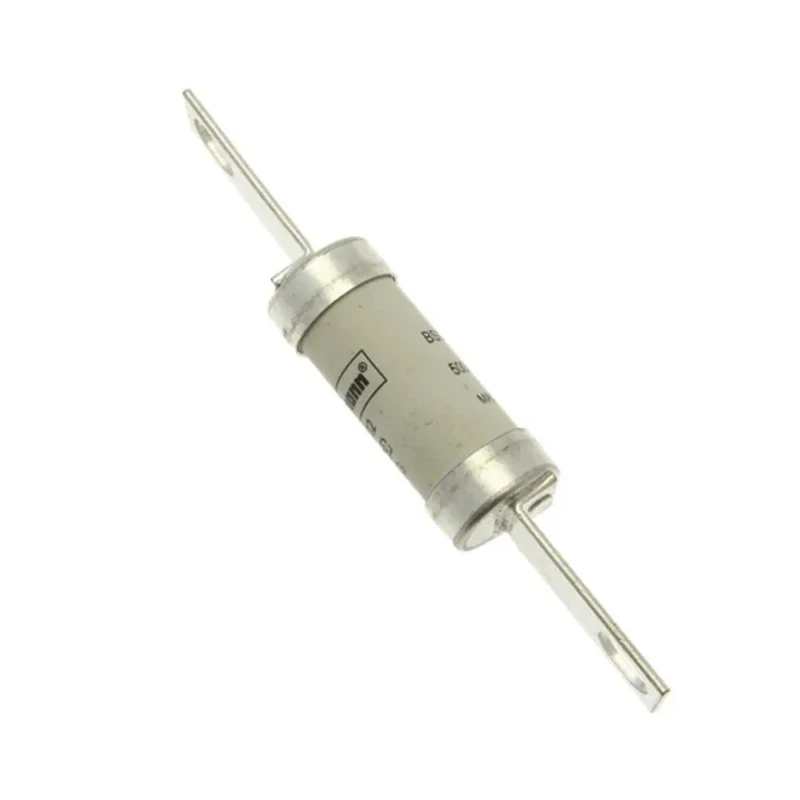

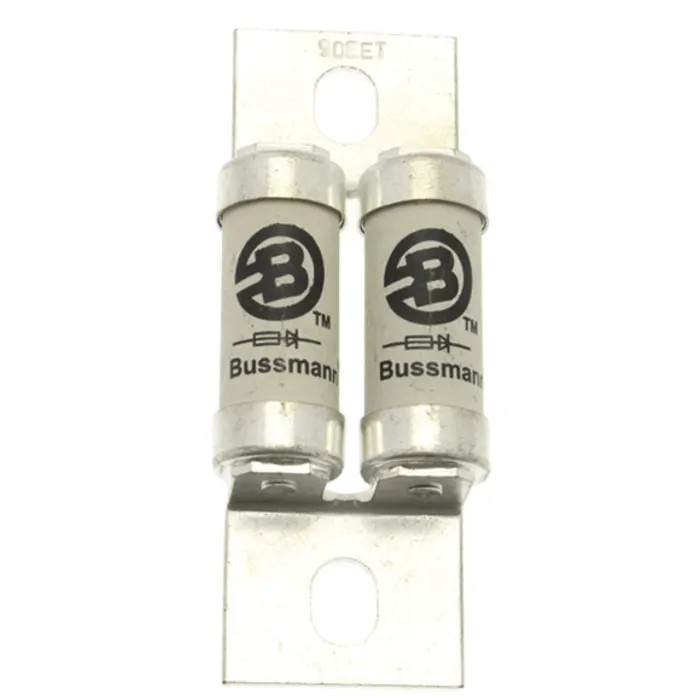

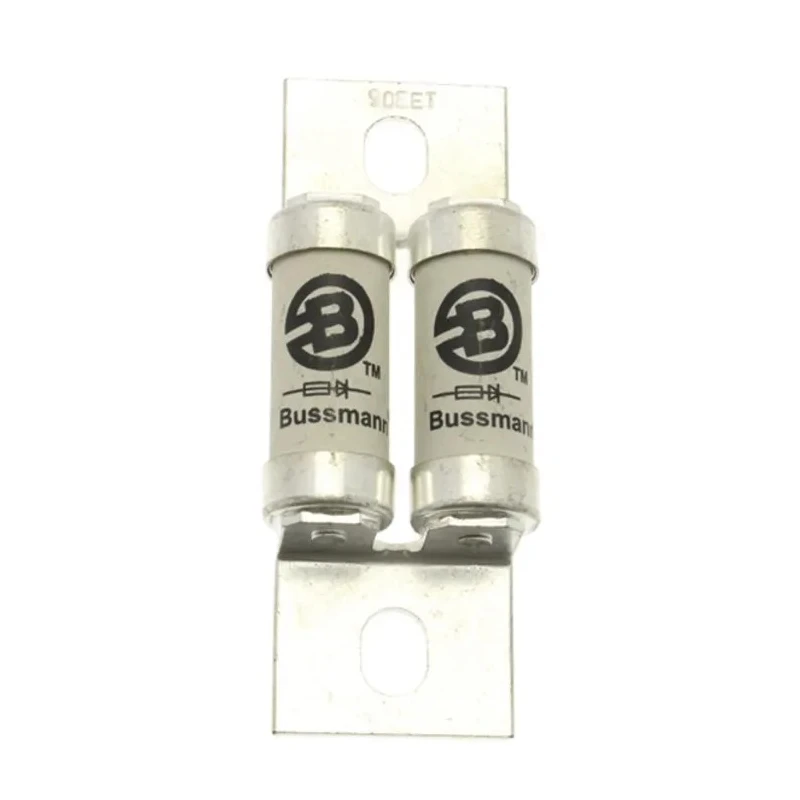

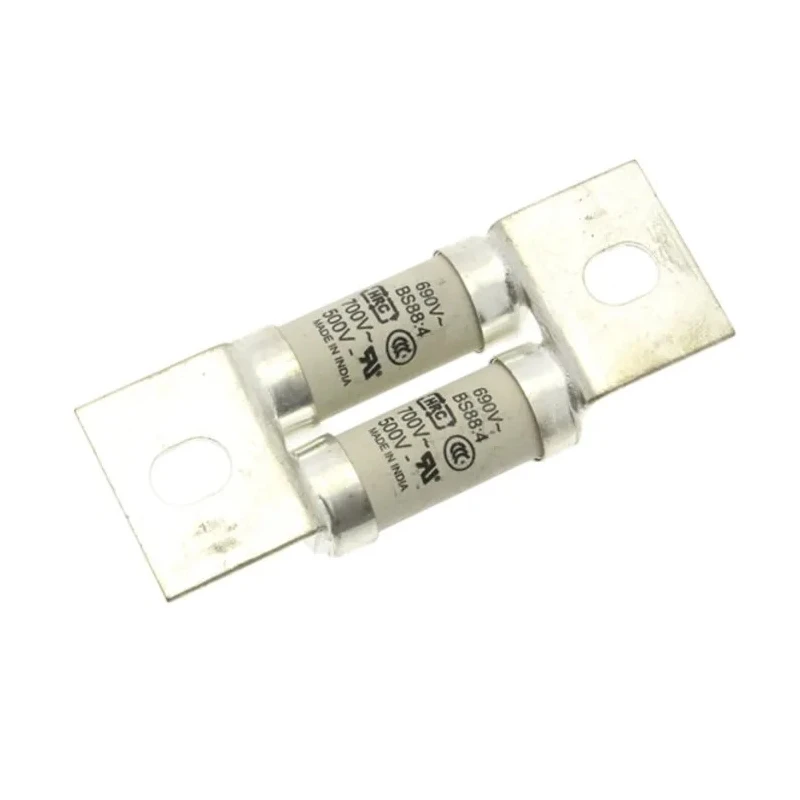

Eaton 90A Bolted Tag Fuse, High Rupture Capacity, 690 V AC, 500 V DC, 70 mm Fixing Centres 90EET

Eaton 90EET bolted tag fuse is a high-speed fuse rated at 90 amps, designed for AC voltage up to 690 V and DC voltage up to 500 V, suitable for industrial electrical circuit protection. This fuse provides high rupture capacity to safely interrupt fault currents and prevent damage to electrical equipment.

The bolted Tag Fuse has fixing centres of 70 mm with a tag width of 31.8 mm offset for secure mounting. The physical dimensions include a tag length of 46 mm and an overall length of 94 mm, creating a compact yet robust design with a diameter of 19 mm and width of 20 mm. It belongs to the EET series, well-regarded for dependable electrical protection in demanding environments.

This product complies with international standards including IEC 60269-4 and UL certifications, along with environmental compliance through RoHS and CE marks. It is manufactured in India, assuring quality and availability for the local market.

Key features highlighted in this fuse include its high speed operation and high rupture capacity, making it suitable for industrial, commercial, and electrical automation applications. The Eaton 90EET is ideally used for protecting circuits in installations requiring reliable fuse performance and safety.

Supports 90A current rating ensuring adequate circuit protection. High rupture capacity for safe disconnection under fault conditions. Compatible with AC 690 V and DC 500 V voltage applications. Designed with fixing centres of 70 mm for standard installations.

Compact dimensions facilitating easy integration in electrical setups. Conforms to IEC, UL, RoHS, and CE standards confirming safety and quality. Manufactured in India under Eaton’s EET series assurance. Explore the Eaton brand and its wide range of fuses and circuit protection devices on EnvMart for reliable industrial and electrical solutions.
