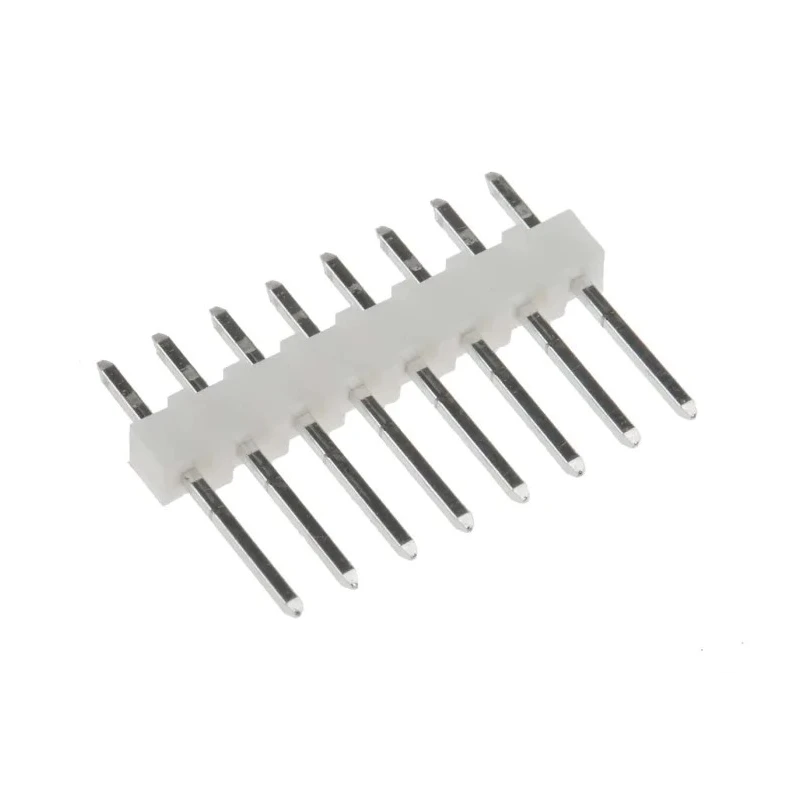

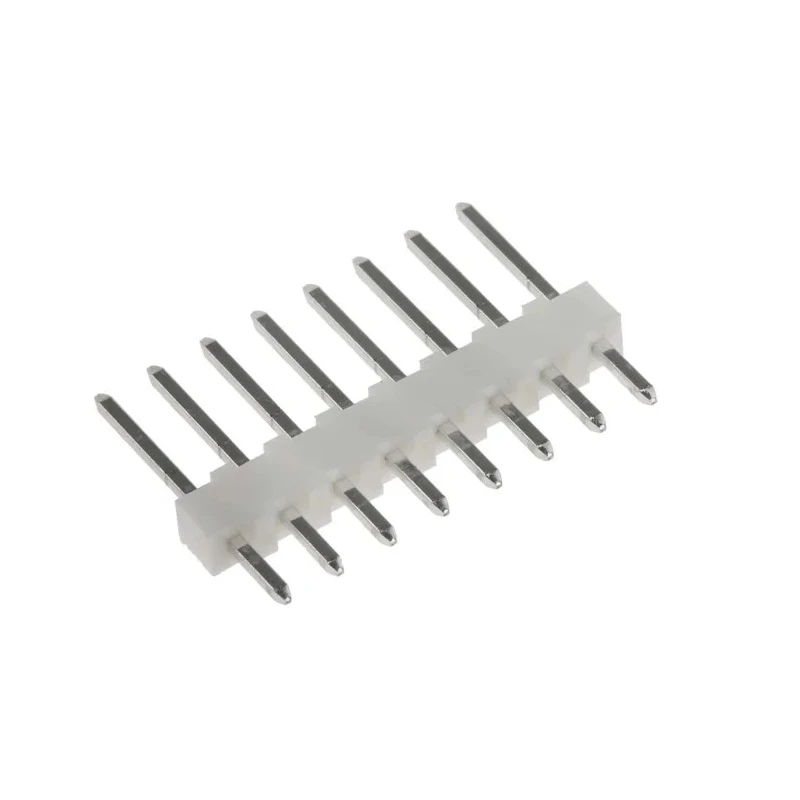

Molex KK 254 Series Straight Through Hole Pin Header 8 Contact 2.54 mm Pitch 1 Row Unshrouded 22-03-2081
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- This pin header is constructed with brass contacts plated in tin for reliable conductivity.
- The housing is made from durable nylon material ensuring insulation and mechanical stability.
- It operates with a voltage rating up to 250 V and current rating of 4 A suitable for various electronic applications.
- The pin header has a straight orientation and male contact gender suitable for board-to-board and wire-to-board connections.
- The operating temperature range is from -40°C to 105°C ensuring performance in a wide range of environments.
- Tail pins have a length of 3.43 mm while mating pins measure 2.54 mm to ensure a secure solder termination.
- This unshrouded design allows for easy integration into PCB assemblies.
- It is classified as new condition and ideal for use in industrial, electronic, and manufacturing sectors.
Product Description
Molex 22-03-2081 KK 254 Series Straight Through Hole Pin Header offers a high-quality solution for electronic component connections with 8 male contacts arranged in a single row at 2.54 mm pitch.
Constructed with a nylon housing and brass contacts plated with tin, the connector ensures electrical reliability and mechanical durability. The through-hole mount type facilitates sturdy PCB assembly connections for both board-to-board and wire-to-board configurations, suited for a wide range of electronic manufacturing applications.
With voltage tolerance up to 250 V and current capacity of 4 A, this pin header is compatible with varied electrical loads and industrial standards. It performs reliably in temperatures ranging from -40°C up to 105°C, suitable for use in demanding environments.
The 3.43 mm tail pin length and 2.54 mm mating pin length allow for secure solder termination and effective mating with other components.
This unshrouded, straight orientation connector supports easy installation and flexibility in PCB designs. It is commonly used in industrial electronics, control systems, and assembly lines where robust connector interfaces are essential.
This pin header's brass contact material is plated with tin for enhanced conductivity and corrosion resistance. The nylon housing is rated for UL 94V-2 and UL 94V-0 standards, providing flame retardance and mechanical protection.
The connector system supports both board-to-board and wire-to-board applications, enhancing design versatility. Its new product condition ensures high quality and reliability for manufacturing projects. The product complies with no specific approval standards but meets industrial connector expectations.
Explore more PCB connector solutions including right-angle and top-entry options within the same KK 254 series at EnvMart's Electronics Components category.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of up to 250 V and a current rating of 4 A, making it suitable for various electronic applications.
This pin header features a pitch of 2.54 mm and contains 8 male contacts arranged in a single row.
The housing is made from nylon, while the contacts are constructed from brass and plated with tin for reliable conductivity.
It operates within a temperature range of -40°C to 105°C, ensuring performance in various environments.
This model utilizes a through-hole mount type, facilitating sturdy PCB assembly connections.
The tail pins have a length of 3.43 mm, allowing for secure solder termination.
It is commonly used in industrial electronics, control systems, and assembly lines where robust connector interfaces are essential.
The unshrouded design allows for easy integration into PCB assemblies, enhancing flexibility in design.
This model features a solder termination type, ensuring a secure connection to the PCB.
It supports both board-to-board and wire-to-board connections, providing versatility in applications.
While it does not comply with specific approval standards, it meets industrial connector expectations.
