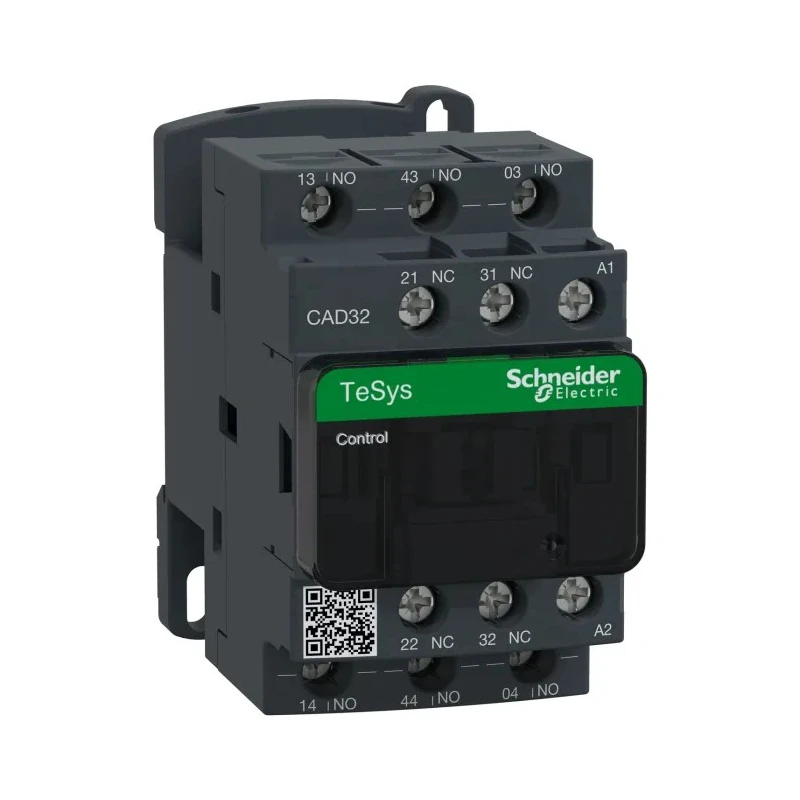

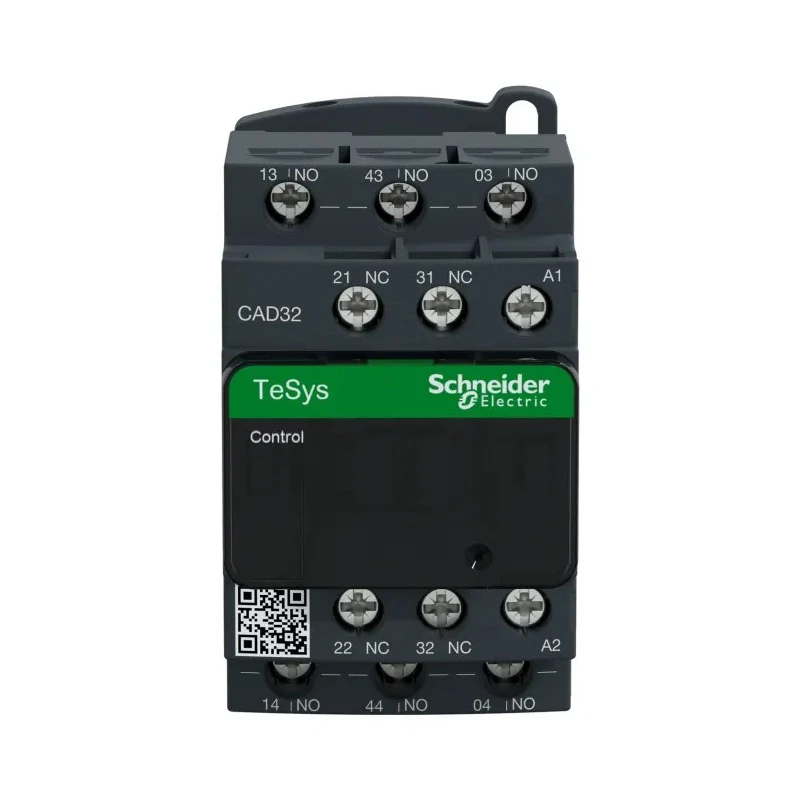

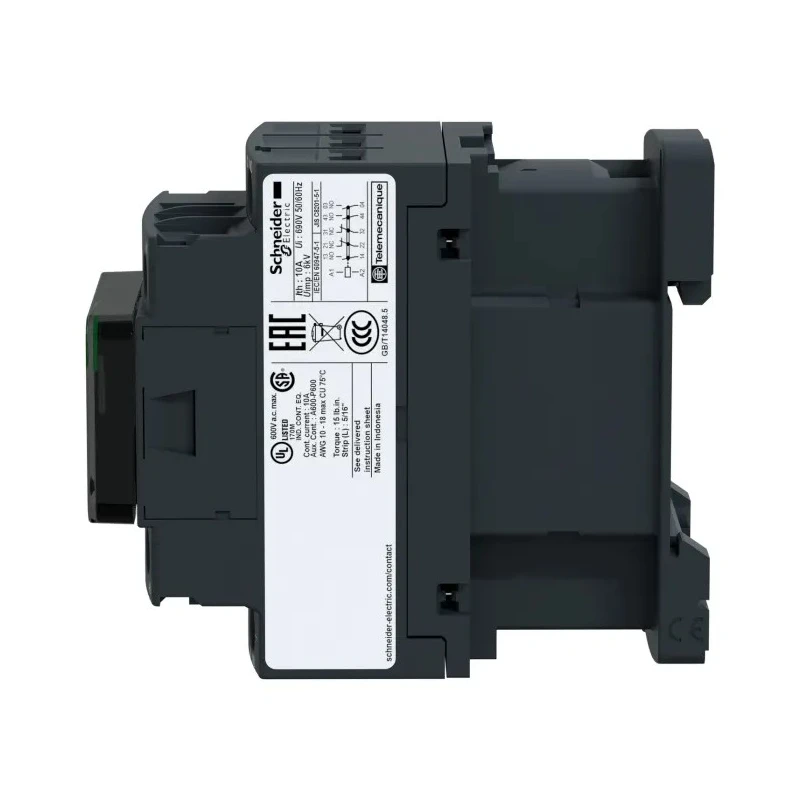

Schneider Electric CAD Contactor, 115V Coil Voltage, 10A Operational Current, 5-Pole, 3 NO/2 NC, 600V AC Contact CAD32FE7

Schneider Electric CAD32FE7 contactor is a compact control relay engineered for industrial automation and electrical system control. With a coil voltage of 115V AC and an operational current rating of 10A, this model provides reliable switching for control circuits requiring multiple auxiliary contacts.

The device features a robust 5-pole configuration including 3 normally open and 2 normally closed contacts rated for a contact voltage of 600V AC. It supports flexible mounting options on plate or standard DIN rail and secure connections with screw clamp terminals suitable for 1 to 4mm² conductor sizes.

Designed for long-term durability, the contactor’s mechanical life is rated to 30 million cycles. It operates effectively within an ambient temperature range from -40°C minimum to 60°C standard, allowing operation up to 70°C under derating conditions.

The relay withstands transient voltages up to 6 kV impulse and electrical endurance is supported with specific short-time current withstand ratings including 100A for 1 second peak, ensuring safety and reliability in harsh industrial environments.

Applications include control panels requiring multiple contact operations, automation logic functions related to motor starters, auxiliary function switching in distribution boards, and signal routing in building management systems.

Environmental and safety approvals for this contactor include CB Scheme, CCC, CE, CSA, EAC, EN/IEC 60947-5-1, GB/T, JIS, REACH, RoHS, UKCA, and UL, which attest to its compliance with international standards.

As part of the Better World product line, it is designed for disassembly enhancing sustainability in industrial installations. Originating from France, this Schneider Electric CAD contactor offers high performance for industrial control and automation tasks.

Explore the extensive range of Contactors and control relays available on EnvMart for advanced electrical and automation solutions. Equipped with a 5-pole configuration including 3 normally open and 2 normally closed contacts.

Operates with a contact voltage rating of 600V AC for wide industrial compatibility. Designed for mounting on plate or rail with screw clamp terminals accommodating 1 to 4mm² conductors. Built to withstand mechanical durability rated to 30 million cycles for long service life.

Suitable for control panels requiring multiple contact changes and automation logic interfacing with motor starters. Functions reliably within an ambient temperature range from -40°C to 70°C with derating at upper limit.

Has a rated impulse withstand voltage of 6 kV to cope with transient voltage spikes. Approvals include CB Scheme, CCC, CE, CSA, EAC, EN/IEC 60947-5-1, JIS, REACH, RoHS, UKCA, and UL certifications. Designed for disassembly supporting environmental sustainability goals.
