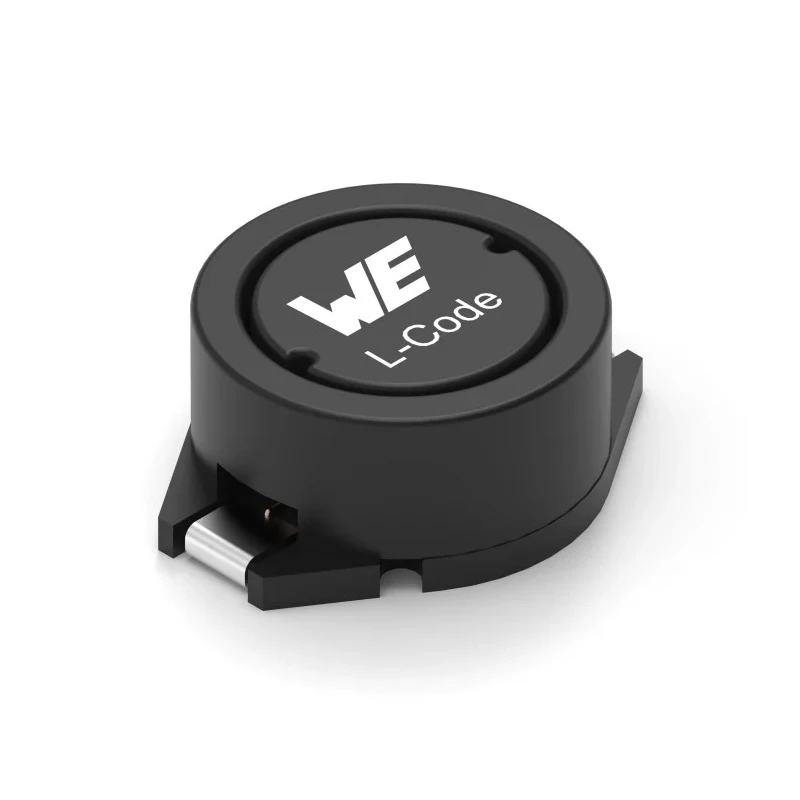

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor 47 μH ±15 % 1 A Idc Q35 74454147
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 4.9mm |
| Length | 12.7mm |
| Model | 74454147 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD3 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS, JEDEC JS709B, REACH |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 190mΩ |
| Inductance Tolerance | ±15 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 12MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor provides magnetic shielding for minimized electromagnetic interference.
- Features wirewound construction on a ferrite core for stable inductance and quality factor.
- The component supports a maximum DC resistance of 190mΩ.
- Designed for use in automotive and industrial electronics meeting AEC-Q200 standards.
- Operating temperature range from -25°C to 85°C suits varied ambient conditions.
- Surface mount termination style allows for compact PCB assembly.

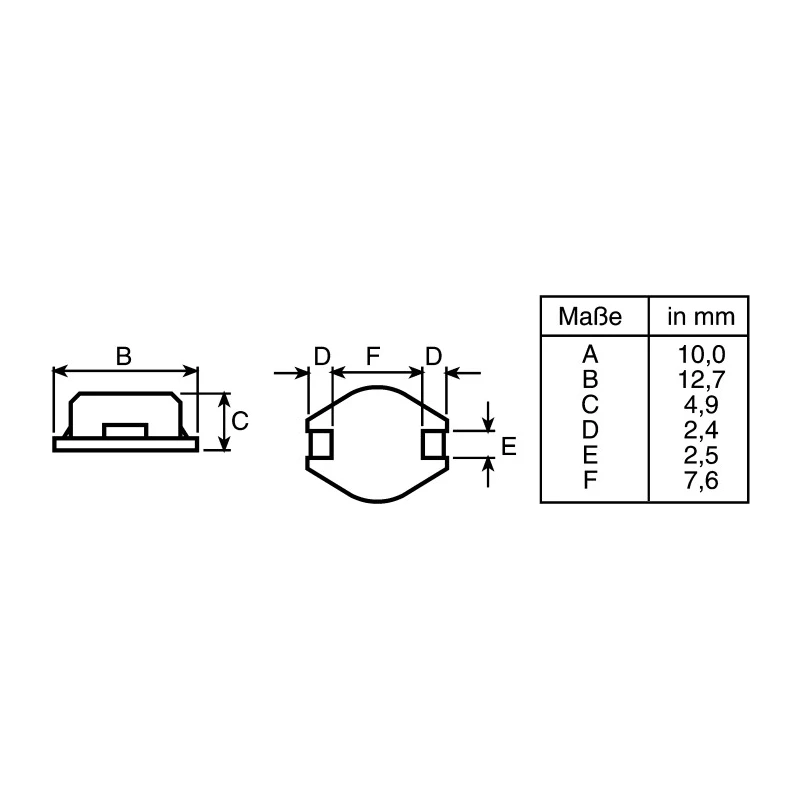

- Compact dimensions of 12.7mm length, 7.6mm diameter, 4.9mm height, and 10mm depth enable space-saving designs.
- Maximum self-resonant frequency of 12 MHz and minimum quality factor of 35 support reliable high-frequency performance.
Product Description
Wurth Elektronik model 74454147 belongs to the WE-PD3 series of magnetically shielded wirewound surface mount inductors. With an inductance value of 47 μH allowing for ±15 % tolerance, this component is ideally suited for advanced electronics requiring noise suppression and stable inductance.
Constructed using a ferrite core combined with wirewound coil technology, it achieves efficient performance with a maximum DC current rating of 1 A and low DC resistance of 190mΩ. Its magnetic shielding feature reduces electromagnetic interference, making it reliable for sensitive circuitry.
The inductor’s surface mount termination suits compact PCB layouts and its tape and reel packaging facilitates high-volume automated assembly. It fulfills automotive standard AEC-Q200, confirming durability and quality for automotive and industrial applications.
Operating temperature range from -25°C to 85°C broadens its usability in diverse environmental conditions. Physical dimensions are 12.7mm length, 7.6mm diameter, 4.9mm height, and 10mm depth which contribute to low-profile designs.
Magnetically shielded wirewound design ensures EMI suppression. Ferrite core material grants stable inductance and quality factor. Suitable for power electronics and automotive circuits. Compact surface mount body enables efficient PCB space utilization.
High maximum self-resonant frequency of 12 MHz supports high-frequency applications. Compliance with RoHS, JEDEC JS709B, and REACH standards ensures environmental safety. Delivered in tape and reel to streamline PCB manufacturing processes.
These features make the WE-PD3 series inductor a dependable component for industrial, automotive, and electronic design projects. Browse more Wurth Elektronik Surface Mount Inductors on EnvMart for your next electronic assembly.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 47 μH with a tolerance of ±15%.
It supports a maximum DC current rating of 1 A.
The physical dimensions are 12.7 mm in length, 7.6 mm in diameter, 4.9 mm in height, and 10 mm in depth.
The maximum self-resonant frequency is 12 MHz.
It operates within a temperature range of -25°C to 85°C.
It features a wirewound construction on a ferrite core.
It complies with RoHS, JEDEC JS709B, and REACH standards.
The magnetic shielding minimizes electromagnetic interference, making it suitable for sensitive circuitry.
The minimum quality factor is 35.
It uses a surface mount termination style, which is ideal for compact PCB assembly.
It is delivered in tape and reel packaging, facilitating high-volume automated assembly.
Yes, it meets the AEC-Q200 automotive standard, confirming its suitability for automotive applications.
