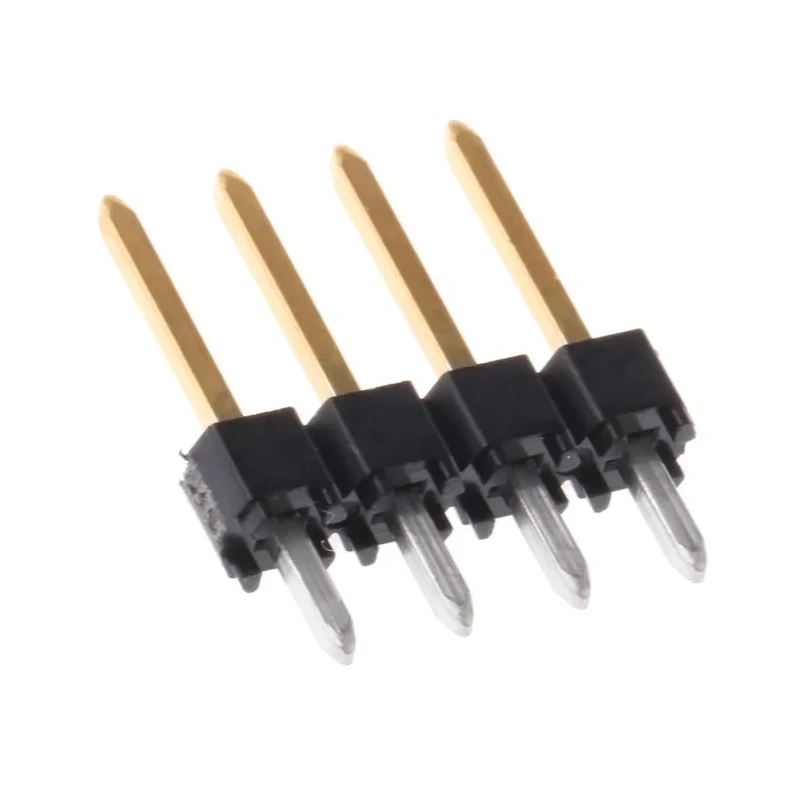

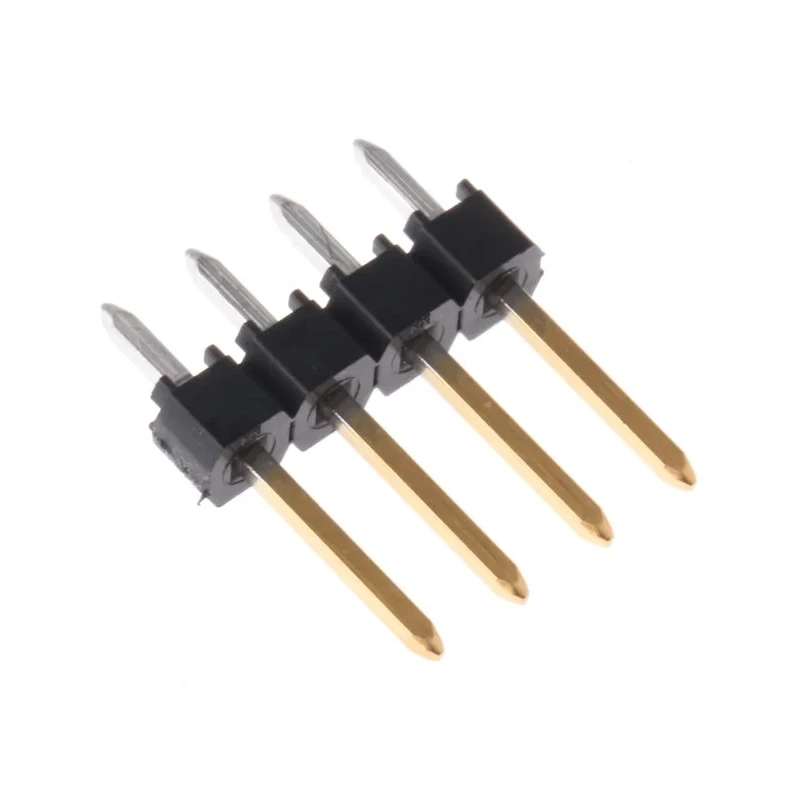

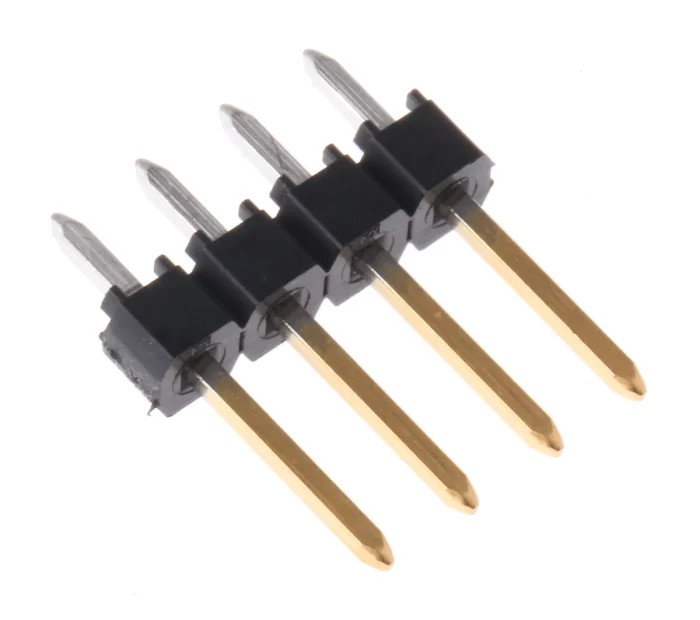

Molex C-Grid III Series Straight Through Hole Pin Header 4 Contacts 2.54 mm Pitch 1 Row Unshrouded 90120-0764

Molex 90120-0764 C-Grid III Series Straight Through Hole Pin Header is a high-quality PCB connector designed for electronic interconnection solutions. Featuring 4 male contacts arranged in a single unshrouded row with a 2.54 mm pitch, this pin header offers reliable wire-to-board connectivity with gold-plated brass contacts to ensure excellent conductivity and corrosion resistance.

The header utilizes a through-hole mounting type with a straight orientation that provides high mechanical stability once soldered onto a PCB. Its breakaway design allows customization by cutting to the required length, enabling flexible circuit board layouts for various industrial needs.

The product supports operating voltages up to 350V and currents up to 3A, suitable for robust signal and power connections in demanding environments. It operates reliably across a temperature range of -55°C to 125°C, making it ideal for industrial, computing, medical equipment, telecommunications, consumer electronics, and automotive safety applications.

This Molex C-Grid III series header features a polyester housing material that offers durable insulation and mechanical robustness. Its tail pin length of 2.9 mm and mating pin length of 6.75 mm ensure strong mechanical engagement with mating connectors.

The connector is designed for use in both board-to-board and wire-to-board applications. Its high retention force for mating and stable solder joint make it a preferred choice across multiple industries requiring dependable electrical connections.

Features 4 gold-plated brass contacts for reliable electrical connectivity. Designed for through-hole mounting with straight orientation for robust mechanical installation. Rated for 3A current and 350V voltage operation ensuring high performance.

Breakaway design allows cutting to length for flexible PCB layout requirements. Wide operating temperature range from -55°C to 125°C for industrial applications. High retention force for secure mating and mechanical stability after soldering.

Suitable for use in industrial, computer, telecommunications, medical, and automotive electronics. Constructed with polyester housing providing durability and insulation. Explore more PCB connector products and accessories from Molex at EnvMart for your electronic assembly needs.
