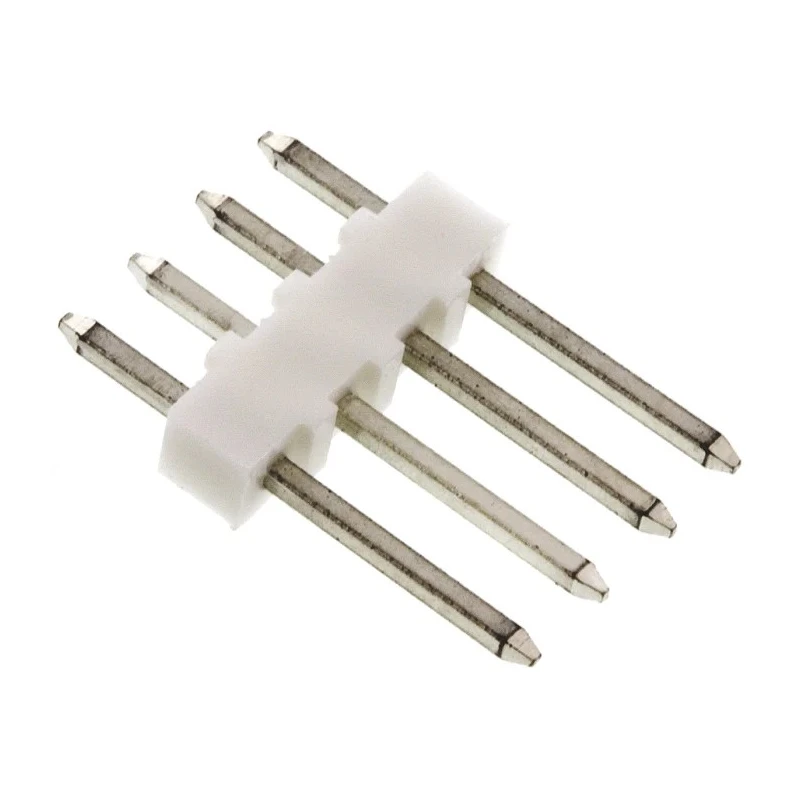

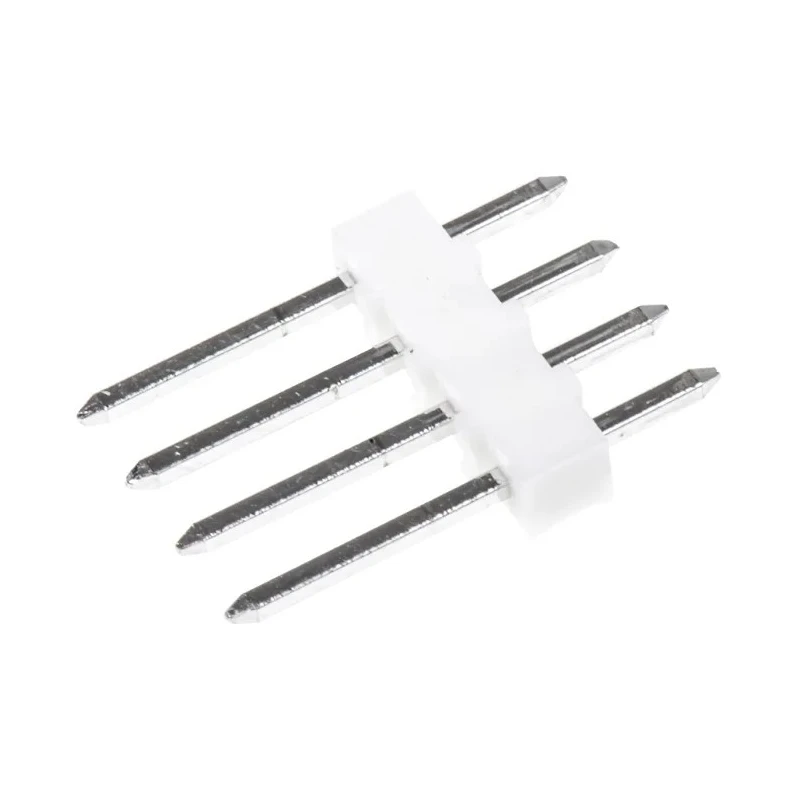

Molex KK 254 Series Straight Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-03-2041
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.43mm |
| Mating Pin Length | 2.54mm |
Key Features
- Designed for board-to-board and wire-to-board connector systems.
- Constructed with nylon housing material ensuring durability.
- Through-hole mount type allows secure PCB soldering.
- Brass contacts plated with tin for reliable conductivity.
- Operates reliably across temperatures from -40°C to 105°C.
- Rated for 250 volts and 4 amperes current capacity.
- Features a 3.43 mm tail pin length and 2.54 mm mating pin length.
- Unshrouded single row for compact and straightforward usage.
Product Description
Molex 22-03-2041 KK 254 Series Straight Through Hole Pin Header is a precision electronic connector designed with 4 male contacts spaced at a 2.54 mm pitch in a single row. It features an unshrouded design suitable for versatile PCB applications requiring robust electrical connections.
The connector employs a durable nylon housing that provides structural strength and insulation. Brass contacts plated with tin assure excellent electrical performance and resistance to corrosion. This through-hole mount pin header simplifies assembly by allowing soldered permanent installation onto circuit boards.
Operating within a temperature range from -40°C up to a maximum of 105°C, it caters to demanding industrial, commercial, and manufacturing environments. Rated at 250 volts and capable of handling 4 amperes current, the component is reliable for medium-voltage PCB connector requirements.
The 3.43 mm tail pin length facilitates easy soldering and secure mechanical retention, while the 2.54 mm mating pin length matches industry-standard receptacles and sockets. The unshrouded, single-row layout results in compactness and straightforward mating for wire-to-board and board-to-board interconnections.
These pin headers are widely used in electronics manufacturing, prototyping, instrumentation, telecommunications, and automation equipment requiring rugged and durable PCB connectors. Their design complies with common industry standards but does not carry specific certifications.
Designed for board-to-board and wire-to-board connector systems. Constructed with nylon housing material ensuring durability. Through-hole mount type allows secure PCB soldering. Brass contacts plated with tin for reliable conductivity.
Operates reliably across temperatures from -40°C to 105°C. Rated for 250 volts and 4 amperes current capacity. Features a 3.43 mm tail pin length and 2.54 mm mating pin length. Unshrouded single row for compact and straightforward usage.
Explore more Electronic Components and PCB Headers available on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for 250 volts, making it suitable for medium-voltage PCB connector requirements.
This pin header can handle a current capacity of 4 amperes.
The contacts are spaced at a pitch of 2.54 mm, which is a standard size for many PCB applications.
The housing is made of nylon, while the contacts are brass plated with tin for reliable conductivity.
It operates reliably within a temperature range from -40°C to 105°C.
This model features 4 male contacts, arranged in a single row.
It uses a through-hole mount type, allowing for secure soldering onto circuit boards.
The tail pin length is 3.43 mm, facilitating easy soldering and secure mechanical retention.
The mating pin length is 2.54 mm, compatible with industry-standard receptacles and sockets.
This connector is designed as unshrouded, which allows for compact and straightforward usage.
The country of origin for this pin header is Mexico.
