onsemi Small Signal NPN Transistor 3-Pin SOT-23 500 mA 45 V 100 MHz BC817-16LT1G

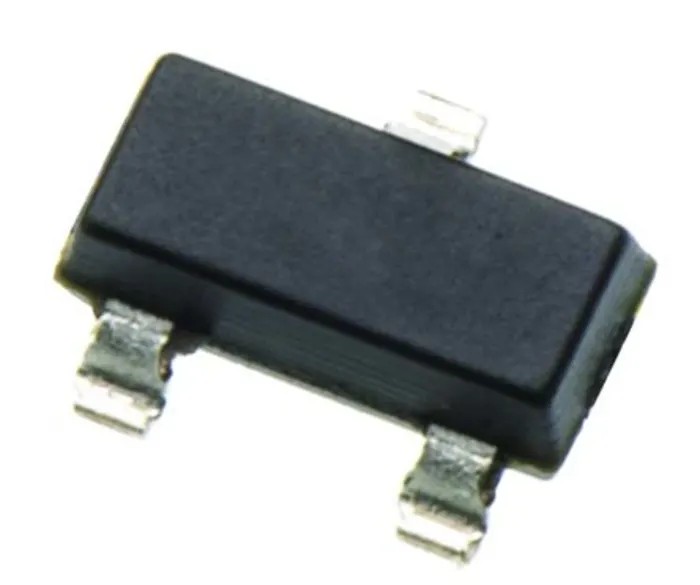

onsemi BC817-16LT1G is a small signal NPN transistor designed for general purpose switching and amplification applications in industrial, automotive, and electronic equipment. Packaged in a compact 3-pin SOT-23 surface mount package, it offers efficient space utilization and easy mounting on printed circuit boards.

This transistor handles a maximum collector current of 500 mA and a maximum collector-emitter voltage of 45 V, making it suitable for moderate power signal amplification and switching tasks. It supports a maximum power dissipation of 300 mW, ensuring durability under typical operating conditions.

With a high transition frequency of 100 MHz, the BC817-16LT1G transistor can operate effectively in high-frequency circuits. Its minimum DC current gain (hFE) of 100 provides reliable amplification performance. The transistor complies with the automotive standard AEC-Q101, testifying to its reliability in automotive electronics.

The device operates safely up to 150°C, making it robust for use in harsh environments such as automotive and industrial systems. Its single NPN transistor configuration allows versatile application in switching, amplification, and digital logic circuits.

High transition frequency of 100 MHz supports high-speed applications. Maximum collector current capacity of 500 mA for moderate power loads. Compact 3-pin SOT-23 surface mount package for PCB design efficiency. Power dissipation up to 300 mW for reliable operation.

Automotive standard AEC-Q101 ensures quality and reliability. Maximum operating temperature of 150°C for demanding environments. Minimum DC current gain of 100 for signal amplification. Single NPN transistor configuration for multipurpose circuitry.

This transistor is widely used in industrial electronics, automotive circuitry, communication devices, and laboratory instruments where reliable switching and amplification are required.
