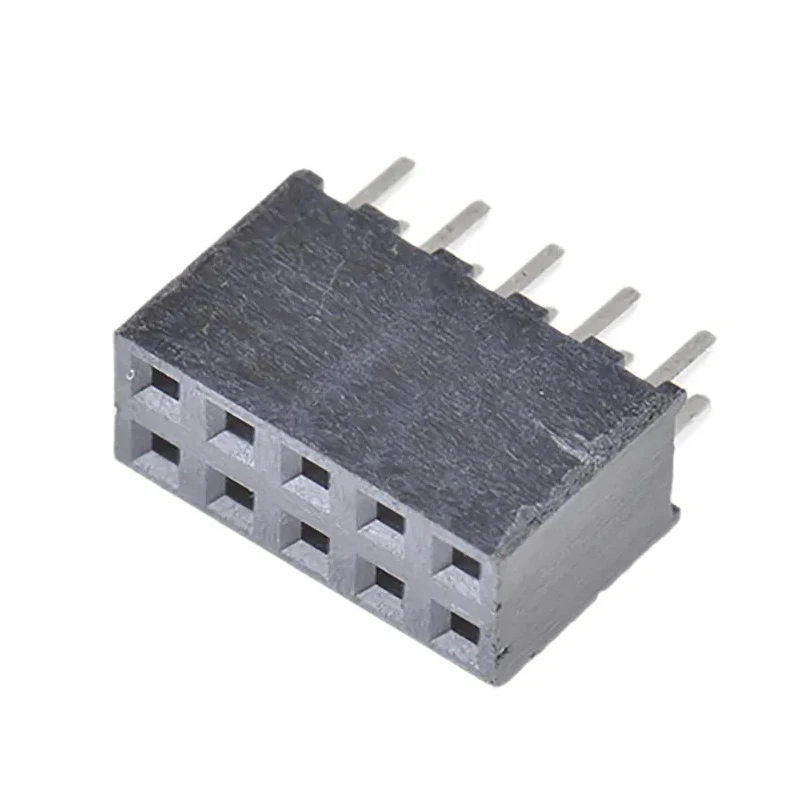

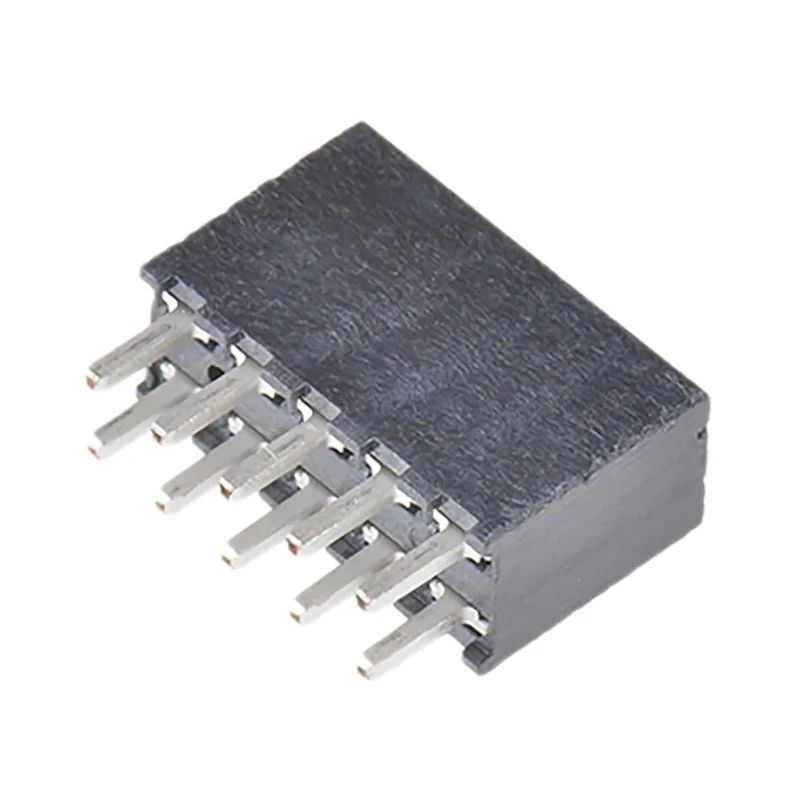

Samtec SQT Series Straight Through Hole PCB Socket 10-Contact 2 Row 2 mm Pitch 450V SQT-105-01-L-D

Samtec SQT-105-01-L-D PCB Socket from the SQT Series is a durable and cost-efficient through hole socket featuring 10 female contacts arranged in 2 rows with 2 mm pitch, designed for electronic components requiring board-to-board connection. The housing is made of liquid crystal polymer, providing excellent mechanical strength and thermal stability for demanding industrial, electronics manufacturing, and laboratory environments.

Each contact is crafted from bronze and plated with gold to ensure high conductivity, corrosion resistance, and long-term reliability. This socket supports solder termination with a through hole mount type, making it suitable for PCB assembly processes. Operating voltage is rated up to 450 volts, with a maximum current capacity of 5.5 amperes, allowing robust electrical performance for power and signal applications.

The socket is designed to operate over a wide temperature range from -55°C to 125°C, ensuring reliable performance in harsh environments such as industrial, communications, and automotive applications. The straight orientation and two-row configuration facilitate compact, versatile PCB layouts with secure board-to-board connections.

Additional features include the SQT series FleXYZ design, allowing design flexibility in three axes, making it ideal for complex mechanical and electronic design requirements. This makes the SQT-105-01-L-D PCB Socket well suited for electronics manufacturing, test equipment, industrial automation, and other commercial applications where durability and electrical integrity are critical.

The package contains the single PCB socket unit as specified. The product does not have specific industry certifications but meets standard industrial quality and reliability norms.

Features 10 female contacts arranged in 2 rows with 2 mm pitch. Supports a maximum current of 5.5 amperes for reliable power transmission. Constructed from liquid crystal polymer housing for durability and high temperature resistance.

Contact material is bronze with gold plating to ensure excellent conductivity and corrosion resistance. Operates within a temperature range of -55°C to 125°C. Suitable for solder termination with a through hole mount type.

Rated for up to 450 volts to support diverse electronic applications. Designed in SQT series providing flexibility and robustness in electronic assemblies. Connector system facilitating secure board-to-board connections with straight orientation.
