JAE TX24 Series Straight Through Hole PCB Socket 50-Contact 2 Row 1.25 mm Pitch 12A 500V

Free Delivery in India | Lowest Global Shipping Charges

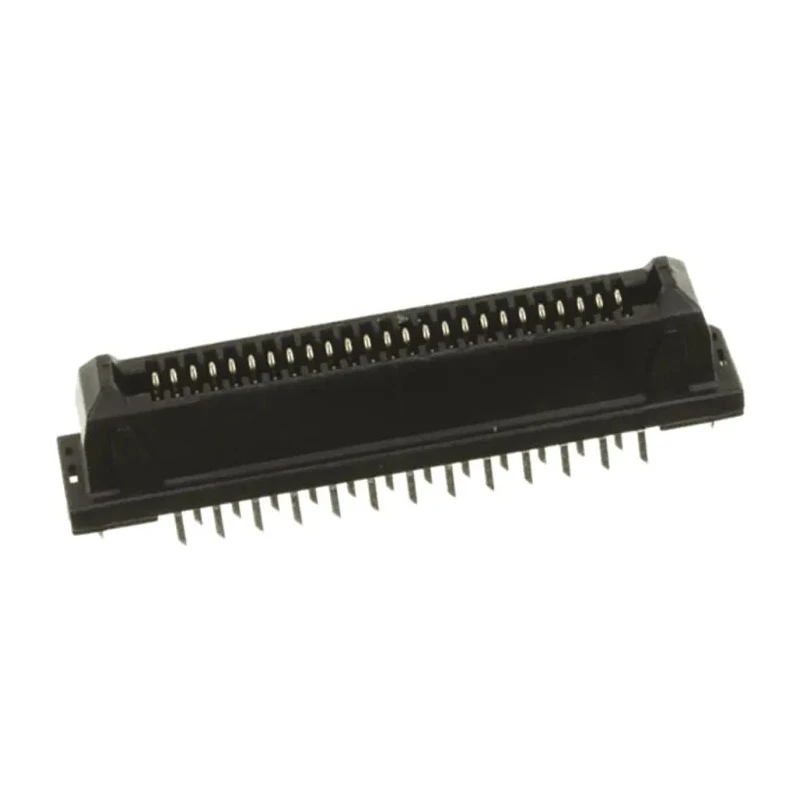

JAE TX24 Series Straight Through Hole PCB Socket 50-Contact 2 Row 1.25 mm Pitch 12A 500V



Category PCB Sockets Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	500V
Brand	JAE
Orientation	Straight
Current	12A
Model	TX24
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Copper
Series	TX24
Termination Type	Solder
Maximum Operating Temperature	80°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.25mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Features 50 female contacts arranged in 2 rows ensuring stable electrical connectivity.
Pitch of 1.25 mm supports compact PCB designs with 12A current rating and 500V voltage tolerance.
Constructed with fibreglass reinforced polybutylene terephthalate housing for durability and heat resistance.
Includes gold-plated copper contact material ensuring corrosion resistance and excellent conductivity.
Mount type is through hole with straight orientation suitable for various PCB applications.
Operates reliably between -40°C to +80°C temperature range for industrial environments.
Designed for board-to-board connector system with non-pin type contacts offering long electrical engagement length.
Stable housing includes polarizing keys suitable for rack and panel connector applications.

Product Description

JAE TX24-50R-6ST-H1E is a high-quality Straight Through Hole PCB Socket from the TX24 Series by JAE. This connector features 50 female contacts arranged in two rows with a 1.25 mm pitch, designed to deliver reliable and stable electrical connections in board-to-board applications.

The socket supports a current of 12 Amperes and is rated for a maximum voltage of 500 Volts, making it suitable for demanding electronic component setups utilized in industrial and commercial environments. Its fibreglass reinforced polybutylene terephthalate housing ensures mechanical robustness and heat resistance, enabling stable operation from -40°C to +80°C.

With its gold-plated copper contacts, the socket ensures excellent conductivity and resistance to corrosion, extending the connector’s lifespan. The product’s termination type is solder, and it is mounted through-hole with a straight orientation, allowing easy and secure PCB integration.

The TX24 Series connectors feature a long electrical engagement length and are designed with non-pin type contacts that withstand mating and unmating twisting forces, accompanied by an excellent click action to confirm true connectivity. Its stable housing includes polarizing keys ensuring correct mating, ideal for rack and panel connector use cases.

50 female contacts arranged in 2 rows for efficient connectivity. 1.25 mm pitch supports compact PCB layouts. Fibreglass reinforced polybutylene terephthalate housing for durability. Gold-plated copper contacts provide corrosion resistance.

Through-hole straight mount type for reliable PCB installation. Operates within a temperature range of -40°C to 80°C. 12A current rating and 500V voltage tolerance for industrial use. Includes polarizing keys for correct panel or rack mounting.

This PCB socket is suitable for industrial, electronic manufacturing, control systems, and power distribution applications where high reliability and stable board-to-board connections are essential. JAE’s TX24 series connectors are widely used in commercial and industrial electronic equipment.
