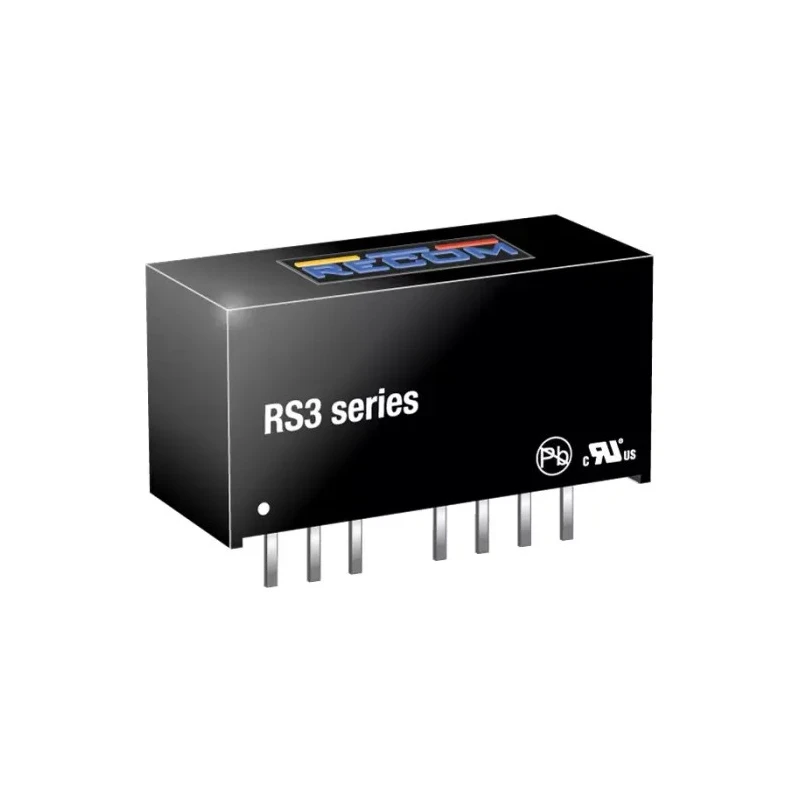

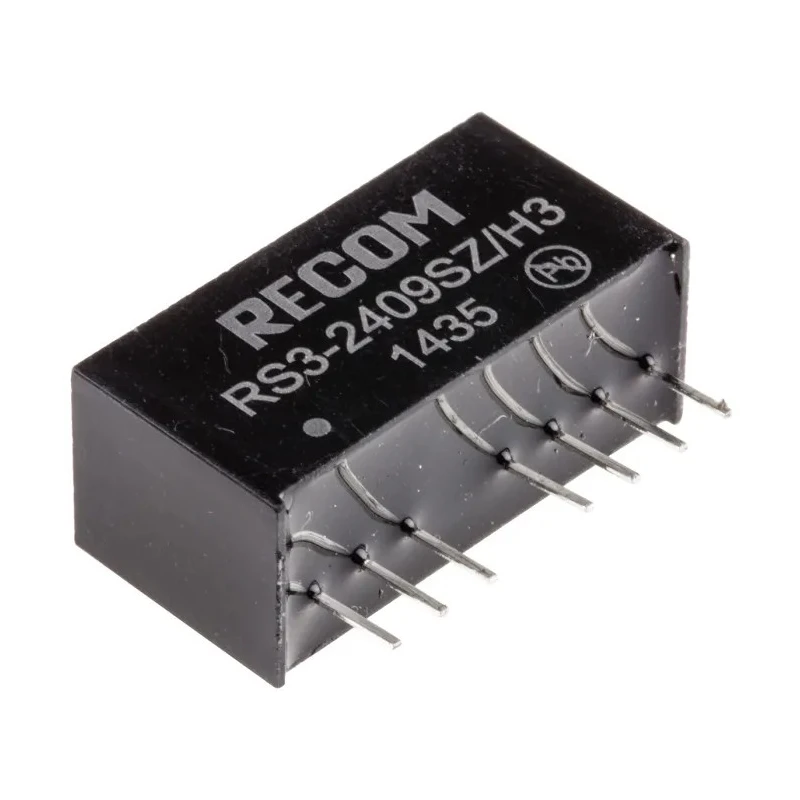

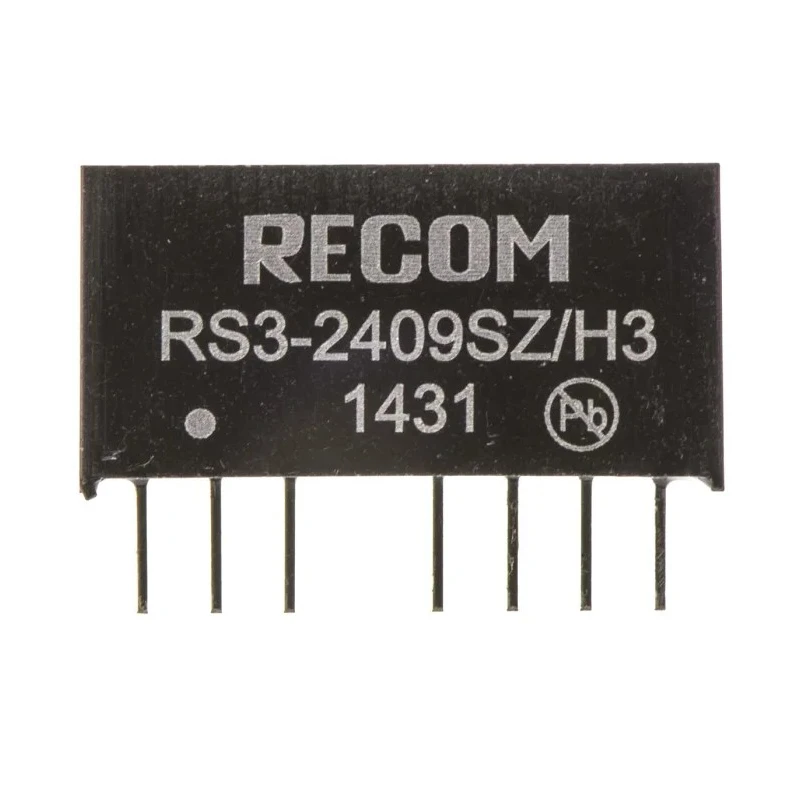

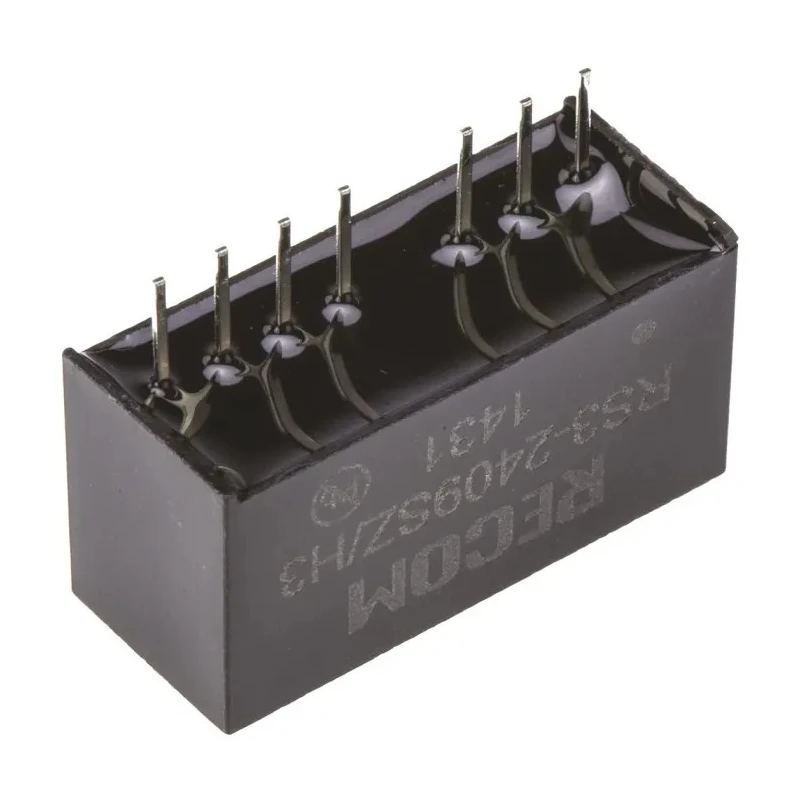

Recom RS3 DC/DC Converter, 9V DC Output, 333 mA, 27V DC Input, 3W Power, Through Hole Mount RS3-2409SZ/H3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS3 DC/DC Converter, 9V dc/ 333 mA, 27V dc I |
| Brand | Recom |
| Efficiency | 79% |
| Length | 21.8mm |
| Model | RS3-2409SZ/H3 |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS3 |
| Maximum Operating Temperature | 71°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3303000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 27V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 8 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 333mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 3:1 |
| Input Ratio3 | 1 |
Key Features
- High isolation voltage of 3 kV DC ensures equipment and user safety.
- Compact SIP package with 8-pin through hole mounting.
- Operates reliably between -40°C and 71°C ambient temperatures.
- Provides 77% efficiency with minimal ripple and noise for sensitive electronics.
- Equipped with remote on/off function for enhanced control.
- Continuous short-circuit protection enhances device durability.
- Ideal for industrial, medical, and process automation applications.
- Flame retardant casing improves fire safety.
Product Description
Recom RS3-2409SZ/H3 DC/DC Converter is designed for robust and efficient voltage regulation delivering 9V DC output at 333 mA with a maximum power of 3W. It accepts a wide input range from 9V to 27V DC, making it suitable for various battery-powered and industrial systems. The device features a 3kV DC isolation voltage which protects sensitive circuits and ensures user safety under surge conditions.
The converter’s SIP package with 8 pins and through hole mounting facilitates easy PCB integration in compact spaces. Operating securely within a temperature range of -40°C to +71°C, this converter is ideal for harsh environment applications including industrial automation, medical devices, and power distribution hubs.
With an efficiency of 77%, this unit minimizes energy loss, eliminating the need for extra cooling such as fans or heatsinks. Noise and ripple are kept minimal at a maximum of 50mVp-p, helping to maintain signal integrity in sensitive electronics. The continuous short-circuit protection safeguards both the converter and connected devices during fault conditions.
The remote on/off capability offers convenient control, enhancing system flexibility. Its flame retardant casing materials comply with fire safety requirements and reduce fire risk in critical applications.
Applications for this DC/DC converter include process automation systems, medical instrumentation, and distribution hubs requiring reliable isolated power conversion with high safety standards.
Supports broad 3:1 input voltage range for versatile power supply. High isolation voltage of 3 kV DC ensures equipment and user safety. Compact SIP package with 8-pin through hole mounting. Operates reliably between -40°C and 71°C ambient temperatures.
Provides 77% efficiency with minimal ripple and noise for sensitive electronics. Equipped with remote on/off function for enhanced control. Continuous short-circuit protection enhances device durability. Ideal for industrial, medical, and process automation applications.
Flame retardant casing improves fire safety. Discover more DC/DC Converters and power supply solutions at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS3-2409SZ/H3 provides an output voltage of 9V DC with a maximum output current of 333 mA.
It accepts a wide input voltage range from 9V to 27V DC, supporting a 3:1 input ratio.
The maximum power output of the RS3-2409SZ/H3 is 3W.

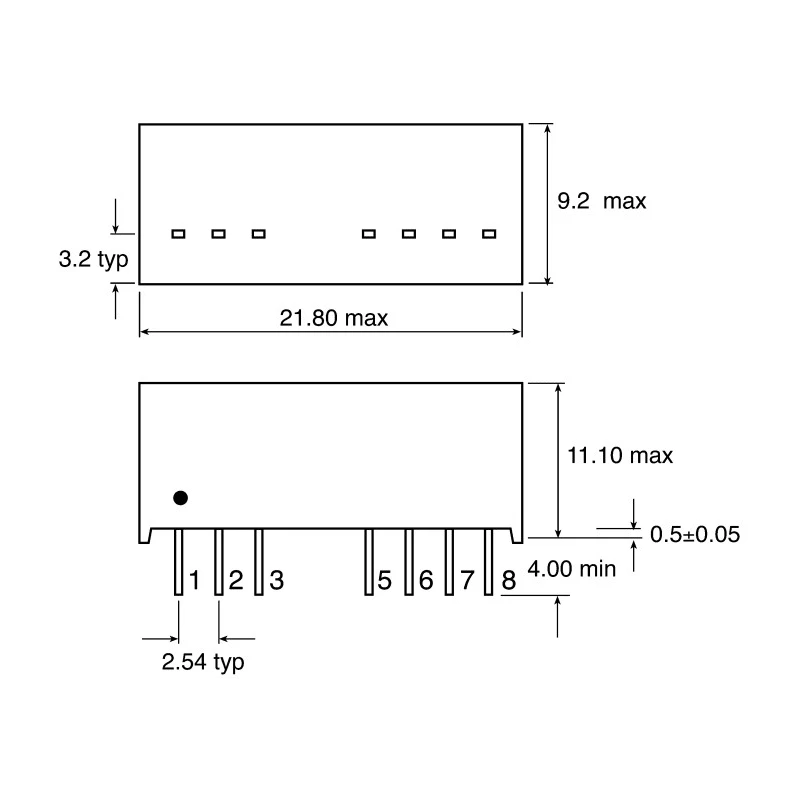

The dimensions of this unit are 21.8 mm in length, 11.1 mm in depth, and 9.2 mm in width.
This model has an efficiency rating of 79%.
It features a high isolation voltage of 3 kV DC, which protects sensitive circuits and ensures user safety under surge conditions.
The operating temperature range is from -40°C to 71°C, making it suitable for harsh environments.
Yes, it includes continuous short-circuit protection which enhances the durability of the device.
This unit utilizes a through hole mounting type with an 8-pin SIP package.
It is ideal for industrial, medical, and process automation applications that require reliable isolated power conversion.
The maximum ripple and noise level is kept minimal at 50 mVp-p, which helps maintain signal integrity in sensitive electronics.
The RS3-2409SZ/H3 is manufactured in Taiwan.
