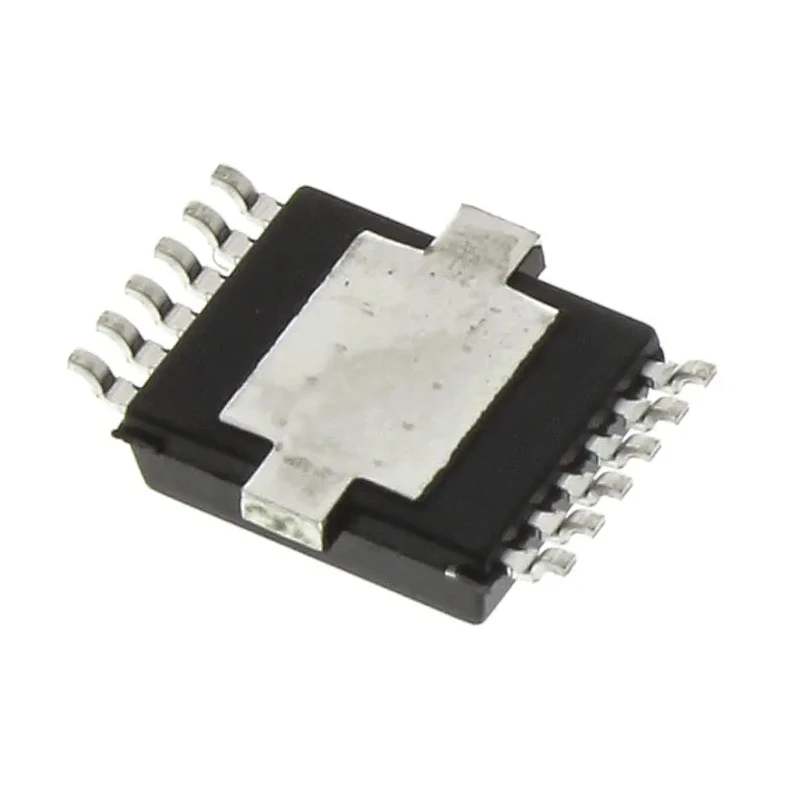

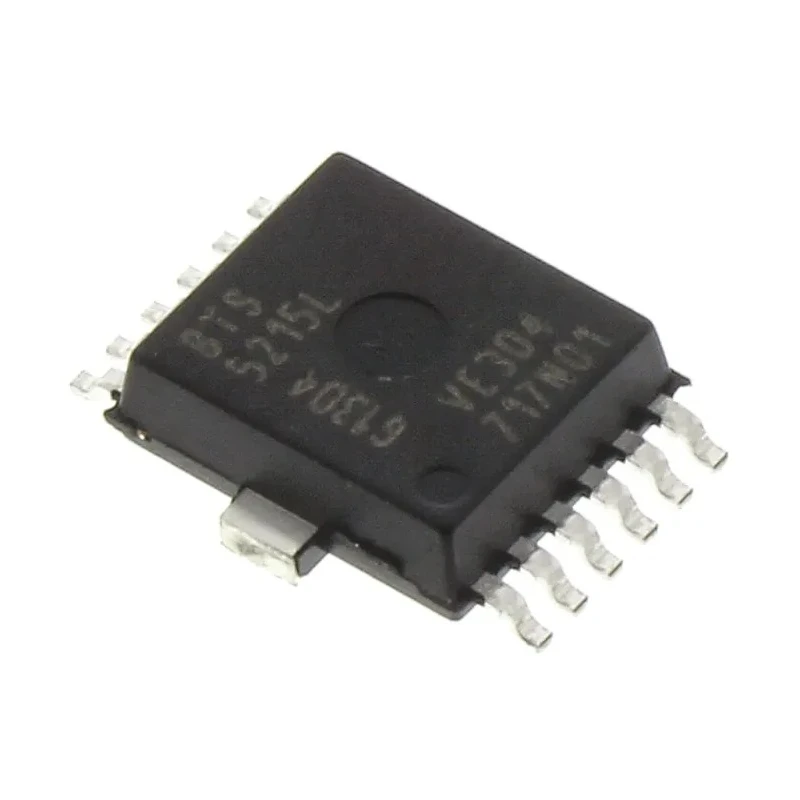

Infineon High Side 2 Channel High Side Power Switch IC Surface Mount, 14-Pin DSO Package BTS5215LAUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.35mm |
| Length | 6.4mm |
| Model | BTS5215LAUMA1 |
| Width | 7.5mm |
| Mount Type | Surface |
| Number of inputs | 2 |
| Series | BTS5215L |
| Power Rating | 3.10W |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 15A |
| Number of outputs | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 5.5V |
| Switch On Resistance RdsOn | 0.07Ω |
Key Features
- Features low on resistance RdsOn of 0.07 ohms for efficient power switching.
- Supports a maximum supply voltage of up to 40V and a continuous operating current of 15A.
- Includes overload, short-circuit, thermal shutdown, and overvoltage protections.
- Operates reliably in temperatures ranging from -40°C to 150°C suitable for automotive and industrial environments.
- Compact dimensions of 6.4mm length, 7.5mm width, and 2.35mm height in a surface mount DSO package.
- Designed for seamless integration in power management circuits needing multi-channel high side switching.
- Complies with RoHS and automotive AEC standards ensuring environmental safety and quality.
Product Description
Infineon BTS5215LAUMA1 is a smart High-Side Power Switch Integrated Circuit designed with dual outputs in a compact 14-pin DSO surface mount package. It provides advanced power switching capabilities with integrated safety and protection features suitable for demanding industrial and automotive applications.
This power switch IC features a low switch on resistance (RdsOn) of 0.07 ohms and supports a continuous operating current of 15 amperes. It can handle voltage supplies ranging from a minimum of 5.5V up to a maximum of 40V, enabling efficient power delivery and control in electronic systems.

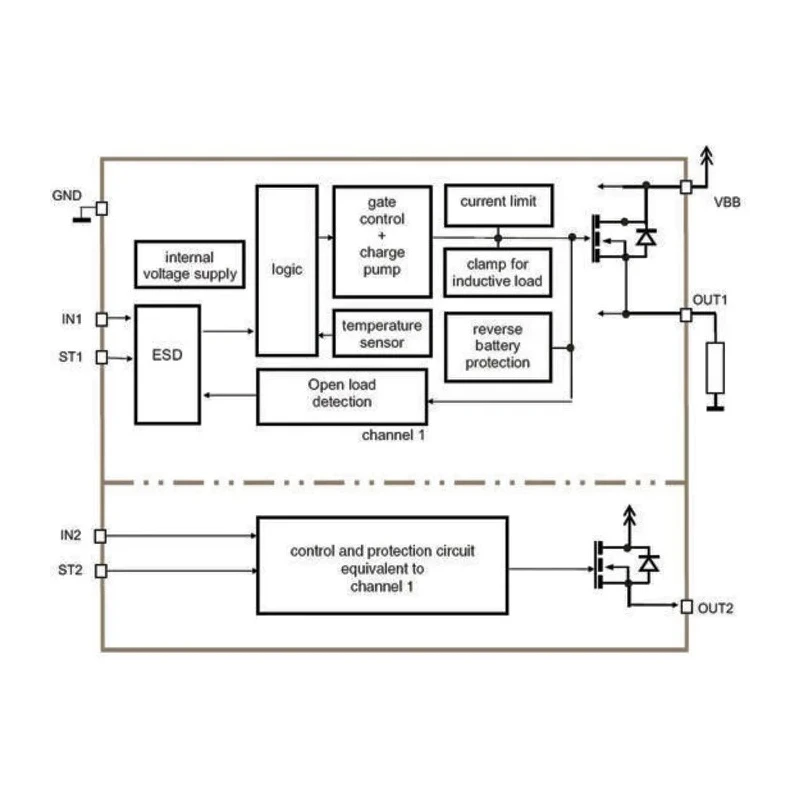

Built-in protections include overload protection, current limitation, short-circuit protection, thermal shutdown, and overvoltage protection. The device also includes electrostatic discharge (ESD) safeguards to enhance reliability and lifespan. Its operating temperature range from -40°C to 150°C makes it suitable for harsh automotive and industrial environments.
The compact and robust DSO package measures 6.4mm in length, 7.5mm in width, and 2.35mm in height facilitating surface mount technology (SMT) assembly for modern circuit boards, maximizing space efficiency. The BTS5215LAUMA1 series complies with RoHS environmental standards and automotive AEC quality requirements, highlighting its suitability for automotive power management applications.
This device is ideal for multi-channel power switching in embedded systems, automotive ECUs, industrial machinery, and power management circuits requiring reliable and high-performance power switching solutions.
Features low on resistance RdsOn of 0.07 ohms for efficient power switching. Supports a maximum supply voltage of up to 40V and a continuous operating current of 15A. Includes overload, short-circuit, thermal shutdown, and overvoltage protections.
Operates reliably in temperatures ranging from -40°C to 150°C suitable for automotive and industrial environments. Compact dimensions of 6.4mm length, 7.5mm width, and 2.35mm height in a surface mount DSO package. Designed for seamless integration in power management circuits needing multi-channel high side switching.
Complies with RoHS and automotive AEC standards ensuring environmental safety and quality. Explore more Infineon Power Switch ICs and related products on EnvMart for your advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the BTS5215LAUMA1 is 40V.
It supports a continuous operating current of 15A.
The switch on resistance (RdsOn) is 0.07 ohms, which allows for efficient power switching.
The dimensions of the DSO package are 6.4mm in length, 7.5mm in width, and 2.35mm in height.
It operates reliably in temperatures ranging from -40°C to 150°C.
It includes overload protection, current limitation, short-circuit protection, thermal shutdown, and overvoltage protection.
This model has a pin count of 14.
It complies with RoHS environmental standards and automotive AEC quality requirements.
This power switch IC supports dual outputs, making it suitable for multi-channel applications.
The power rating for the BTS5215LAUMA1 is 3.10W.
It is designed for surface mount technology (SMT) assembly.
The country of origin for this power switch IC is India.
