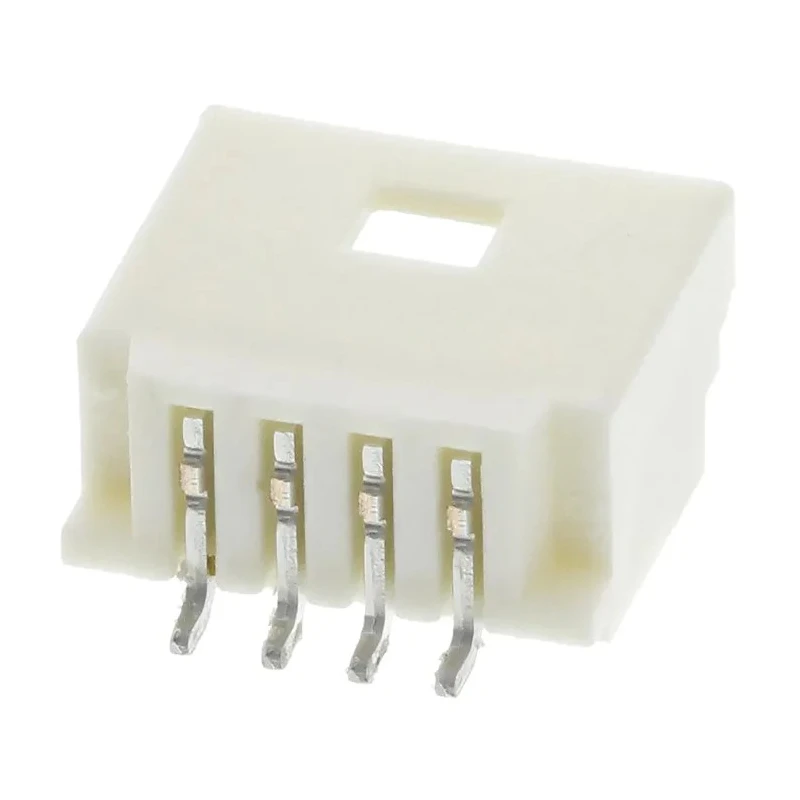

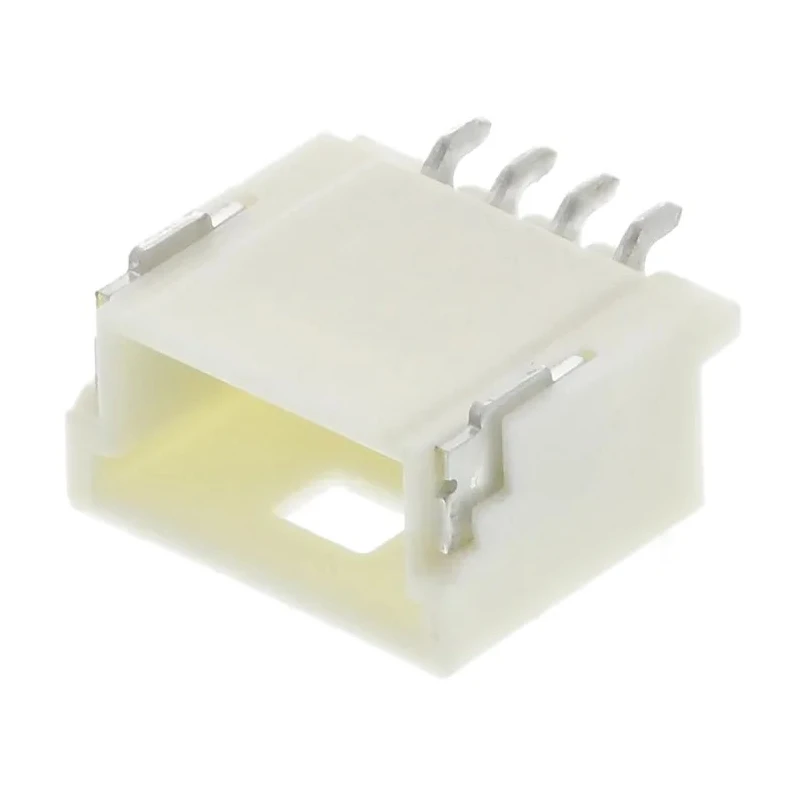

Molex Pico-Clasp Series Right Angle Surface PCB Header 4 Contact 1 mm Pitch Single Row Shrouded 501568-0407
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- This connector supports a current rating of 1 A, suitable for low power applications.
- The housing is made of durable nylon material for reliable insulation.
- It features a single row and right angle orientation for compact PCB mounting.
- The brass contacts are tin plated to ensure corrosion resistance and electrical conductivity.
- Designed for solder termination, offering secure and stable connections.
- Operates effectively within a temperature range of -40°C to 105°C.
- With a 1 mm row pitch and 1 mm mating pin length, it fits high-density interconnection requirements.
- Shrouded design provides protection and positive locking for reliability.
Product Description
Molex 501568-0407 Pico-Clasp Series PCB Header is a compact, right angle, shrouded wire-to-board connector designed for high density with a 1 mm pitch and 4 contacts in a single row. Its nylon housing and brass, tin-plated contacts enable reliable electrical performance and insulation in demanding conditions.
This connector is rated for 1 A current and 50 V nominal voltage, making it suitable for electronic component board assembly requiring low current connections. The connector operates within a temperature range from -40°C to 105°C, ensuring stability in diverse industrial environments. Its solder termination ensures excellent mechanical and electrical integrity during PCB assembly.
The single row design with 1 mm pitch and right angle orientation allows for compact PCB layouts with positive locking provided by the Pico-Clasp™ technology. The shrouded body protects the contacts and enhances connector durability suitable for industrial, electronic, and manufacturing applications.
The connector system is ideal for wire-to-board interconnections in electronics manufacturing, prototyping, and repair tasks. It is widely used in industrial electronics, instrumentation, telecommunications, and other sectors that demand reliable and space-saving PCB connectors.
This connector supports a current rating of 1 A, suitable for low power applications. The housing is made of durable nylon material for reliable insulation. It features a single row and right angle orientation for compact PCB mounting.
The brass contacts are tin plated to ensure corrosion resistance and electrical conductivity. Designed for solder termination, offering secure and stable connections. Operates effectively within a temperature range of -40°C to 105°C.
With a 1 mm row pitch and 1 mm mating pin length, it fits high-density interconnection requirements. Shrouded design provides protection and positive locking for reliability.
This product is made in Japan and represents new condition quality to meet professional electronic component standards. Browse the PCB Headers category on EnvMart for more Molex connectors and related components.
