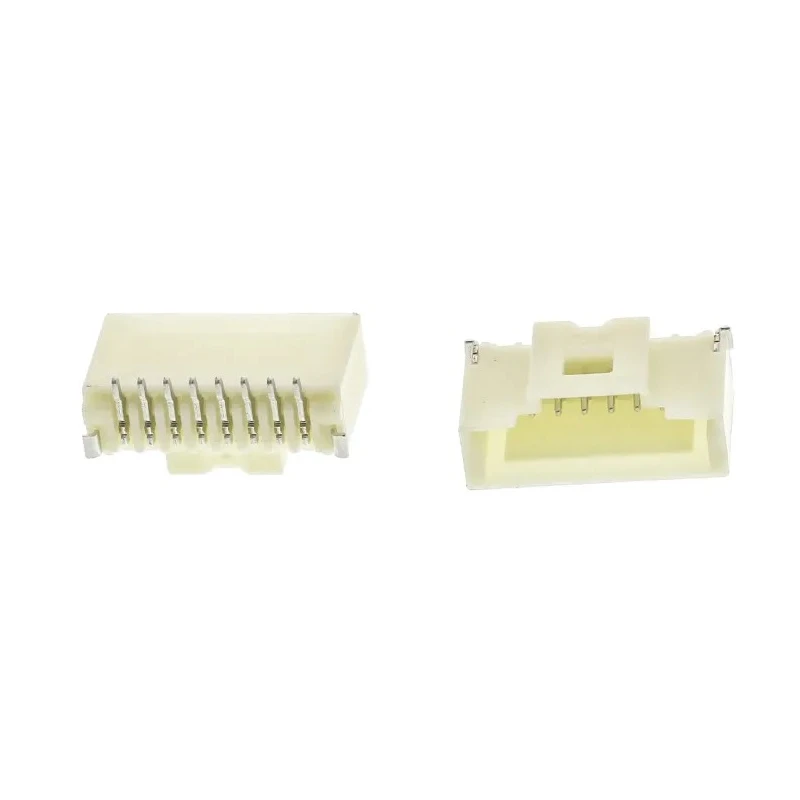

Molex Pico-Clasp Series Straight Surface PCB Header 8 Contacts 1 mm Pitch 1 Row Shrouded 501331-0807

Molex 501331-0807 Pico-Clasp Series Straight Surface PCB Header is a compact and robust wire-to-board connector system designed with a single row of 8 contacts spaced at 1.00 mm pitch. The shrouded housing made from durable nylon ensures protection and insulation for reliable electrical connections in various industrial and electronic applications.

This connector features male contacts made of phosphor bronze with tin plating to provide excellent conductivity and corrosion resistance. It operates within a broad temperature range from -40°C to 105°C, supporting stable operation in harsh environments.

The surface mount termination type facilitates easy soldering and integration onto PCBs. Rated for a maximum voltage of 50 V and current of 1 A, it suits low power electrical systems. The shrouded design combined with the positive lock inside the header prevents misalignment and enhances mating security.

Designed and manufactured in Japan, this Molex Pico-Clasp connector series provides reliable, high-density PCB header solutions for industrial, electronic, and manufacturing uses, particularly where miniaturized wire-to-board connections are critical.

Features a 1.00 mm pitch single row with 8 contacts for compact PCB mounting. Constructed with nylon housing providing durability and insulation. Male phosphor bronze contacts plated with tin ensure reliable electrical performance.

Operates safely within -40°C to 105°C temperature range. Designed for surface mount technology with solder termination type. Supports a maximum operating voltage of 50 volts and current of 1 ampere. Shrouded connector system increases mating security and prevents misalignment.

Positive internal locking mechanism offers high-density interconnection reliability. Manufactured in Japan ensuring quality and precision in production. Ideal for electronic, industrial, and PCB wire-to-board applications.
