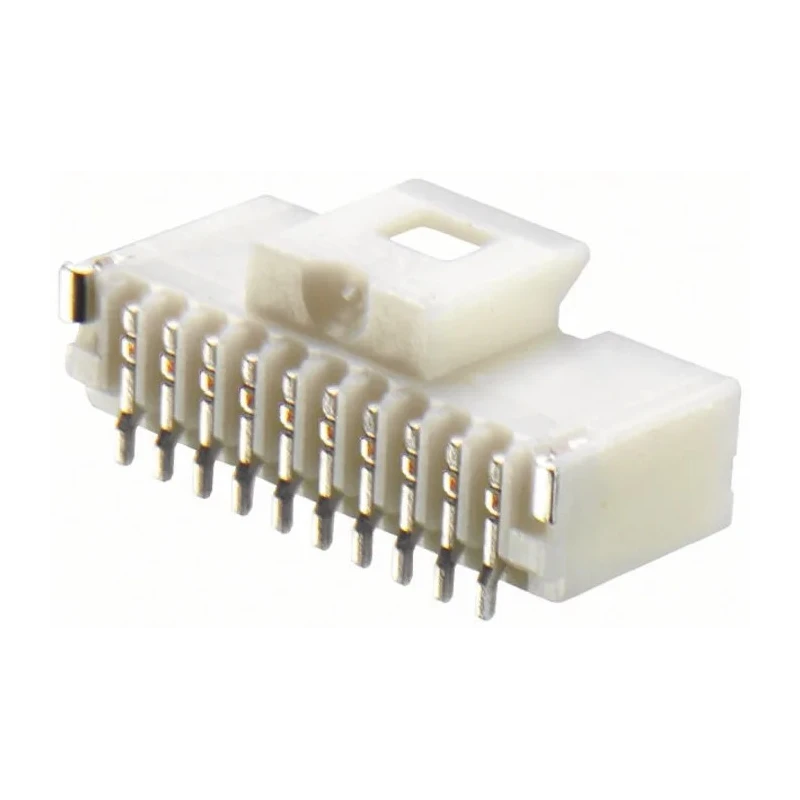

Molex Pico-Clasp Series Straight Surface PCB Header, 10 Contacts, 1 mm Pitch, 1 Row, Shrouded 501331-1007
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Pico-Clasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 1mm |
Key Features
- The connector is made with durable nylon housing to ensure long-lasting performance.
- Contact material is phosphor bronze with tin plating to provide excellent conductivity and corrosion resistance.
- Designed for wire-to-board connection systems with a 50 V voltage rating and 1 A current capacity.
- Operating temperature range extends from -40°C to 105°C for versatile industrial applications.
- The 1 mm pitch and single row make it compact and suitable for high-density PCB layouts.
- The connector features a positive locking mechanism for reliable connection stability.
- Termination is by solder, suitable for surface mount PCB assemblies.
- Manufactured in Japan, ensuring high-quality standards and reliability.
Product Description
Molex 501331-1007 Pico-Clasp Series Straight Surface PCB Header is a high-quality, single row, shrouded PCB connector featuring 10 contacts with 1 mm pitch designed for wire-to-board applications.
This connector system offers excellent durability and reliability, featuring a nylon housing material for protection and phosphor bronze contacts plated with tin to ensure optimal electrical conductivity and corrosion resistance. The male contact gender and surface mount termination type allow easy and secure assembly on PCB layouts.
Operating over a temperature range from -40°C to 105°C and supporting 50 V voltage with 1 A current rating, it is suitable for diverse industrial, commercial, and electronic manufacturing uses. The shrouded design and positive locking feature provide stable connections in compact electronic devices.
Molex's Pico-Clasp series is recognized as the smallest connector system featuring positive lock, enabling highly dense and reliable connections in the smallest design footprints. The connector features a single row with 10 contacts at 1 mm pitch.
Housing constructed from durable nylon ensuring robustness in industrial environments. Contacts fabricated from phosphor bronze and tin plated for corrosion resistance. Designed for wire-to-board connections with surface mount type termination.
Rated for 1 A current and 50 V voltage with operating temperature from -40°C to 105°C. Positive locking mechanism ensures connection reliability. Manufactured in Japan to meet high-quality standards. This PCB header finds applications across electronic component manufacturing, industrial automation, telecommunications, and compact consumer electronics assembly.
Explore our Electronics Components collection for more high-quality PCB connectors and wire housing solutions on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header has a voltage rating of 50 V and a current capacity of 1 A.
The operating temperature range extends from -40°C to 105°C, making it suitable for various industrial applications.
The housing is made from durable nylon, while the contacts are fabricated from phosphor bronze and plated with tin for corrosion resistance.
This model features 10 contacts arranged in a single row with a 1 mm pitch.
It uses a solder termination type, suitable for surface mount PCB assemblies.
Yes, it is specifically designed for wire-to-board connection systems.
The connector is designed in a straight orientation for easy assembly.
Yes, it includes a positive locking mechanism to ensure reliable connection stability.
This PCB header is manufactured in Japan, ensuring high-quality standards.
The pitch size of this connector is 1 mm, making it suitable for high-density PCB layouts.
It is suitable for applications in electronic component manufacturing, industrial automation, telecommunications, and compact consumer electronics assembly.
The contact gender of this model is male.
