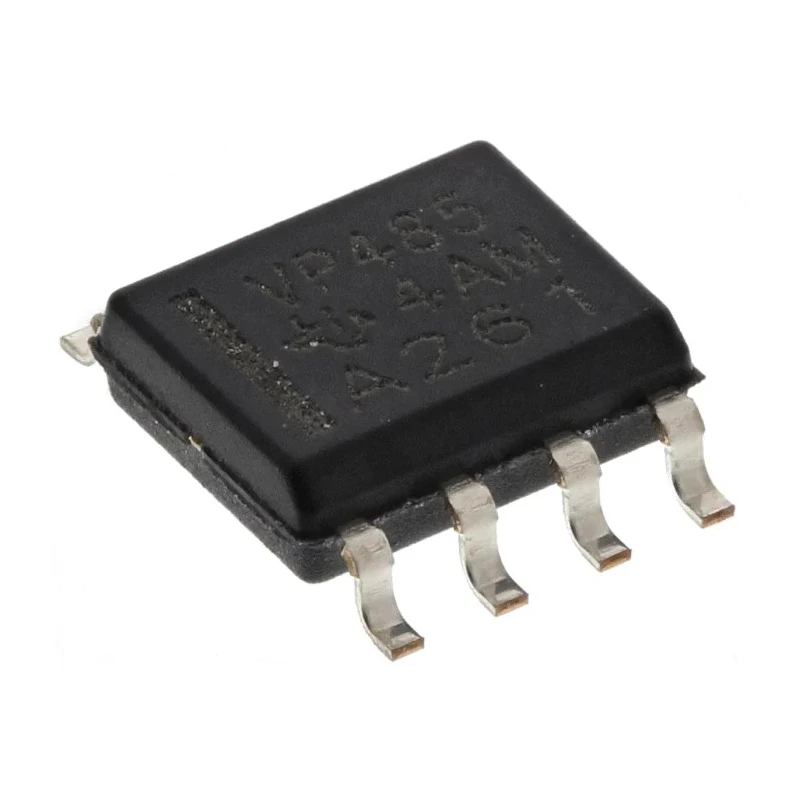

Texas Instruments Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC SN65HVD485ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD485ED |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD485E |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 3.5ms |
| Supply Current | 2mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- This device operates with a minimum supply voltage of 4.5V and maximum of 5.5V.
- It supports a single channel with differential input and output signals.
- The transceiver features a maximum propagation delay of 3.5ms under load.
- Operating temperature ranges from -40°C to 85°C, suitable for industrial environments.
- Compact surface-mount SOIC package with 8 pins, dimensions 5mm by 3.98mm and height 1.75mm.
- Maximum output currents are ±8mA for low and high levels, respectively.
- Supply current typical of 2mA ensures low power consumption.
- Non-inverting polarity supports stable signal transmission on RS-485 networks.
Product Description
Texas Instruments SN65HVD485ED is a high-speed RS-485 line transceiver designed for differential, non-inverting signal transmission in industrial and communication applications. Packaged in a compact 8-pin SOIC surface-mount format, this line transceiver offers a reliable and efficient interface for robust data communication.
Operating with supply voltages ranging from 4.5V to 5.5V, the device supports a single channel with differential input and output, making it suitable for differential signal environments such as RS-485 networks. The transceiver delivers a maximum propagation delay time of 3.5ms, enabling data rates over 10 Mbit/s.
Designed for industrial operating temperatures from -40°C to 85°C, the SN65HVD485ED ensures stable performance under harsh environmental conditions. Its compact dimensions of 5mm length, 3.98mm width, and 1.75mm height facilitate space-efficient PCB layouts.
The device supports maximum high and low-level output currents of -8mA and 8mA respectively, with a low typical supply current of 2mA, contributing to energy-efficient system designs. The non-inverting polarity provides stable and reliable signal transmission, critical for communication interfaces.
Texas Instruments' SN65HVD485ED is widely used in applications including industrial automation, data communication, instrumentation, and embedded systems requiring dependable differential line transceivers.
This line transceiver enables high-speed communication on RS-485 networks. Compact SOIC package allows for surface mounting on PCBs for space savings. Wide operating temperature ensures suitability for diverse industrial environments.
Low supply current promotes efficient power usage in battery-powered devices. Reliable differential, non-inverting output supports clean signal transmission. Explore more semiconductor interface ICs and line transceivers at EnvMart for your industrial and electronic component needs.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This line transceiver features a differential output type, supporting stable signal transmission.
The dimensions of this model are 5mm in length, 3.98mm in width, and 1.75mm in height.
The typical supply current is 2mA, contributing to low power consumption.
This device supports a single channel for differential input and output signals.
The maximum propagation delay time is 3.5ms under load conditions.
The output polarity is non-inverting, which supports stable signal transmission.
The maximum high-level output current is -8mA.
It comes in a compact 8-pin SOIC surface-mount package.
It is commonly used in industrial automation, data communication, instrumentation, and embedded systems.
The minimum supply voltage is 4.5V.
